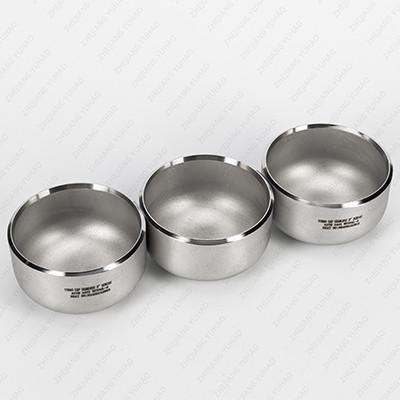

Butt Weld Ss 304 316 Sch40 Seamless Pipe Stainless Steel End Caps Pipe Fitting
Butt Weld Ss 304 316 Sch40 Seamless Pipe Stainless Steel End Caps Pipe Fitting
Specifications
Brand Name :
YUHAO
Model Number :
Butt Weld Pipe Fittings
Certification :
ASTM, AISI, GB, DIN, JIS
Place of Origin :
China
MOQ :
100kgs
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2000tons/per month
Delivery Time :
15days
Packaging Details :
Standard sea worth bundles,Standard Plywood cases
End Type :
Beveled
Wall Thickness :
SCH5S, SCH10S, SCH20S, SCH40S, SCH80, SCH160
Standard :
ASTM A403, ASTM A815, ASTM A234
Surface Finish :
Polished, Rolled Sand, Pickling
Material :
304 304L 316 316L
Pipe Fitting Type :
Cap
Connection Type :
Butt Welded
Application :
Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment
Dimensions :
DN5-DN1200
Size :
1/2' ~ 48'
Usage :
Pipeline Connection
Description

Butt Weld Ss 304 316 Sch40 Seamless Pipe Stainless Steel End Caps Pipe Fitting


►Products Description

Our premium stainless steel butt welded end caps provide secure and permanent termination for piping systems across critical industries. Manufactured from high-grade 304/316/316L stainless steel, these end caps offer:

  • ​​Reliable System Protection:​​ Ensures complete sealing against contaminants and pressure loss
  • ​​Exceptional Corrosion Resistance:​​ Withstands aggressive media and extreme temperatures
  • ​​Precision Engineering:​​ Perfectly contoured for seamless butt-welded connections (ASME B16.9 compliant)
  • ​​Optimized Performance:​​ Hemispherical design provides superior pressure containment
  • ​​Wide Application Range:​​ Ideal for chemical processing, oil & gas, pharmaceutical, and power generation systems


​​Manufacturing Excellence:​​
As a trusted manufacturer with decades of experience, we provide:

Advanced Production Capabilities:​​

  • CNC-controlled forming and machining processes
  • Automated orbital welding with full penetration welds
  • Comprehensive hydrostatic and pneumatic testing


Stringent Quality Control:​​

  • 100% material certification (ASTM A403/ASTM A182)
  • Dimensional verification to ±0.5mm tolerance
  • Optional NDT services including RT, UT, and PMI testing


​​Inventory & Supply Chain Strength:​​
Our massive inventory ensures immediate project support:

  • Extensive Size Range:​​ 1/2" to 48" available from stock
  • Complete Schedule Coverage:​​ SCH 10S, 40S, 80S, 160S, and XXS
  • Custom Solutions:​​ Special materials (Duplex, Super Duplex), thicknesses, and finishes


Our stainless steel butt welded end caps represent the perfect combination of quality, reliability, and immediate availability. Contact our sales team today for:

  • Instant stock availability checks
  • Competitive quotations
  • Technical specifications and material certifications
  • Custom manufacturing solutions


Trust our end caps to securely seal your most critical piping systems - where quality and on-time delivery matter most.


►Industry-specific attributes

Place of Origin China
Brand name Yuhao
Connectivity Welding
Size DN15-DN2400(1/2"-48")
Wall thickness SCH 5s-SCH XXS
customized Support ASTM DIN EN BS JIS GOST etc.
Surface treatment Sand blasting, Roll blasting, Pickled or Polished
Material 304 304L 316 316L
Pressure High Pressure
Packing Cartons, Pallet, Cases


►Product Size

DN NPS OD Nominal Wall Thickness
Schss Sch10S Sch405 Sch8os Sch10 Sch20 Sch30 STD Sch40 Sch60 XS
6 1/8 10.3 - 1.24 1.73 2.41 - - - 1.73 1.73 - 2.41
8 1/4 13.7
1.65 2.24 3.02 - - - 2.24 2.24 - 3.02
10 3/8 17.1 - 1.65 2.31 3.2 - - - 2.31 2.31 - 3.2
15 1/2 21.3 1.65 2.11 2.77 3.73 - - - 2.77 2.77 - 3.73
20 3/4 26.7 1.65 2.11 2.87 3.91 - - - 2.87 2.87 - 3.91
25 1 33.4 1.65 2.77 3.38 4.55 - - - 3.38 3.38 - 4.55
32 1 1/4 42.2 1.65 2.77 3.56 4.85 - - - 3.56 3.56 - 4.85
40 1 1/2 48.3 1.65 2.77 3.68 5.08 - - - 3.68 3.68 - 5.08
50 2 60.3 1.65 2.77 3.91 5.54 - - - 3.91 3.91 - 5.54
65 2 1/2 73 2.11 3.05 5.16 7.01 - - - 5.16 5.16 - 7.01
80 3 88.9 2.11 3.05 5.49 7.62 - - - 5.49 5.49 - 7.62
90 3 1/2 101.6 2.11 3.05 5.74 8.08 - - - 5.74 5.74 - 8.08
100 4 114.3 2.11 3.05 6.02 8.56 - - - 6.02 6.02 - 8.56
125 5 141.3 2.77 3.4 6.55 9.53 - - - 6.55 6.55 - 9.53
150 6 168.3 2.77 3.4 7.11 10.97 - - - 7.11 7.11 - 10.97
200 8 219.1 2.77 3.76 8.18 12.7 - 6.35 7.04 8.18 8.18 10.31 12.7
250 10 273 3.4 4.19 9.27 12.7 - 6.35 7.8 9.27 9.27 12.7 12.7
300 12 323.8 3.96 4.57 9.53 12.7 - 6.35 8.38 9.53 10.31 14.27 12.7
350 14 355.6 3.96 4.78 - - 6.35 7.92 9.53 9.53 11.13 15.09 12.7
400 16 406.4 4.19 4.78 -
6.35 7.92 9.53 9.53 12.7 16.66 12.7
450 18 457 4.19 4.78 - - 6.35 7.92 11.13 9.53 14.27 19.05 12.7
500 20 508 4.78 5.54 - - 6.35 9.53 12.7 9.53 15.09 20.62 12.7


►Shot Shoot

Butt Weld Ss 304 316 Sch40 Seamless Pipe Stainless Steel End Caps Pipe Fitting

Butt Weld Ss 304 316 Sch40 Seamless Pipe Stainless Steel End Caps Pipe Fitting

Butt Weld Ss 304 316 Sch40 Seamless Pipe Stainless Steel End Caps Pipe Fitting


►FAQ

Q1: Are you manufacturer or trading company?

A: We are not only manufacturer but also a trading company,we have more than 12years export experience.

Q2: Can you supply what's the service?

A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...

Q3: Can you reply to messages in a timely manner?

A: Contact us with your detailed inquiry, you will be replied within 6 hours.

Q4: Where is your factory located?

A: Our factory is located in wenzhou City, zhejiang Province,China.

Q5: How is the after-sales service?

A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
