3104 H19 Aluminum Coil for Can Body -----------------------------------
3104 H19 Aluminum Coil for Can Body -----------------------------------
Specifications
Alloy/Grade :
3104
Temper :
H19
Processing Service :
Bending, Decoiling, Welding, Punching, Cutting
Tolerance :
±1% or as customer’s requirement
Thickness :
0.10mm-8.0mm
Width :
8mm-2600mm
Length :
Any length, according to the transportation, usually less than 12m
Surface Treatment :
Mill Finish, Coated, Powder Coated, Anodized, Mirror, Embossed, checkered, etc.
Delivery Time :
7-25 days after order confirmation
MOQ :
1 ton
Standards :
ASTM-B209,EN573-1,GB/T3880.1-2006
Quality Control :
Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Chemical Element :
Present(%)
Al :
Remain
Cu :
≤0.10
Mg :
≤0.30
Mn :
0.9-1.5
Si :
≤0.50
Fe :
≤0.70
Cr :
≤0.10
Others :
0.05
Alloy :
3104
Tensile Strength (MPa) :
290-330
Yield Strength (MPa) :
270-310
Elongation (%) :
≥20
Earring (%) :
≤3
Description

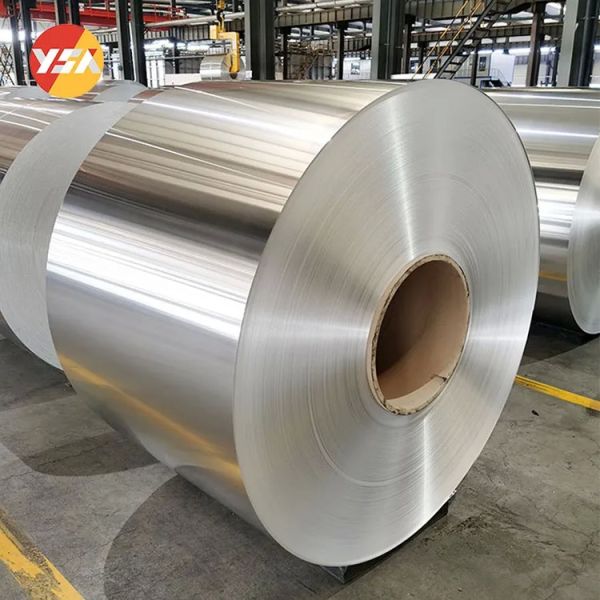

3104 H19 Aluminum Coil

3104 H19 aluminum coil is the most common alloy used in cans. It is simple to stretch and offers an excellent printing effect. It boasts good ductility, corrosion resistance, and welding characteristics. Typically delivered in coil form, aluminum sheets or strips are also available.

Our clients use 3104 H19 aluminum coils, employing deep drawing to immediately shape the coils into the cylindrical can body using a mold.

Key Benefits:

  • Excellent for can manufacturing
  • Superior ductility for deep drawing
  • High corrosion resistance
  • Good welding characteristics
  • Excellent printing surface

Target Industries & Applications:

Beverage can manufacturing, food packaging, and general industrial applications requiring corrosion-resistant and formable aluminum.

Product Attributes

Alloy: 3104 Aluminum
Temper: H19
Thickness: 0.1-8.0mm
Width: 8mm-2600mm
Length: Any
Delivery Time: 7-25 days after order confirmation
MOQ: 1 ton

Technical Specifications

Alloy/Grade Temper
3104 O, H12, H14, H16, H18, H19, H22, H24, H114, etc
Processing Service
Bending, Decoiling, Welding, Punching, Cutting
Tolerance
±1% or as customer’s requirement
Thickness Width Length
0.10mm-8.0mm 8mm-2600mm Any length, according to the transportation, usually less than 12m
Surface Treatment
Mill Finish, Coated, Powder Coated, Anodized, Mirror, Embossed, checkered, etc.
Delivery Time MOQ Standards
7-25 days after order confirmation 1 ton ASTM-B209,EN573-1,GB/T3880.1-2006
Quality Control
Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Chemical Element Present(%)
Al Remain
Cu ≤0.10
Mg ≤0.30
Mn 0.9-1.5
Si ≤0.50
Fe ≤0.70
Cr ≤0.10
Others 0.05
Alloy Temper Tensile Strength (MPa) Yield Strength (MPa)
3104 H19 290-330 270-310
Alloy Temper Elongation (%) Earring (%)
3104 H19 ≥20 ≤3
