18 Gauge Aluminum Sheet -----------------------
18 Gauge Aluminum Sheet -----------------------
Specifications
Name :
18ga Aluminum Sheet
Alloy :
1060 1100 3003 3004 3005 5052 5083 6061, etc
Temper :
O, H12, H16, H18, H24, H32, etc
Thickness :
18 ga
Width :
4 feet/1220 mm/48 inches
MOQ :
1 Ton
Delivery Time :
7-25 days after order confirmation
Standards :
ASTM-B209,EN573-1,GB/T3880.1-2006
Price Terms :
FOB, CIF, CFR, CNF, etc.
Tension strength :
Different alloys have different tensile strengths. For example, the tensile strength of 3003 H4 aluminum alloy is 145-195MPa; the tensile strength of 5052 H32 aluminum sheet is 210-260MPa.
Yield strength :
30000-90000 psi
Elongation :
Different alloys have different elongations. For example, the elongation rate of 3003 aluminum is 10%; the elongation rate of 5052 aluminum plate is 12%.
Density :
Approximately 0.0975 lbs/cubic inch
Length :
8 feet/2240 mm/96 inches
Volume :
185.7024 cubic in
Wight :
18.105984 lbs/289.695744 oz/8.21273619 kg
pounds per square foot :
0.565812 lbs/ft2
kilograms per square foot :
0.256645 kg/ft2
ounce per square foot :
9.052992 oz/ft2
Description

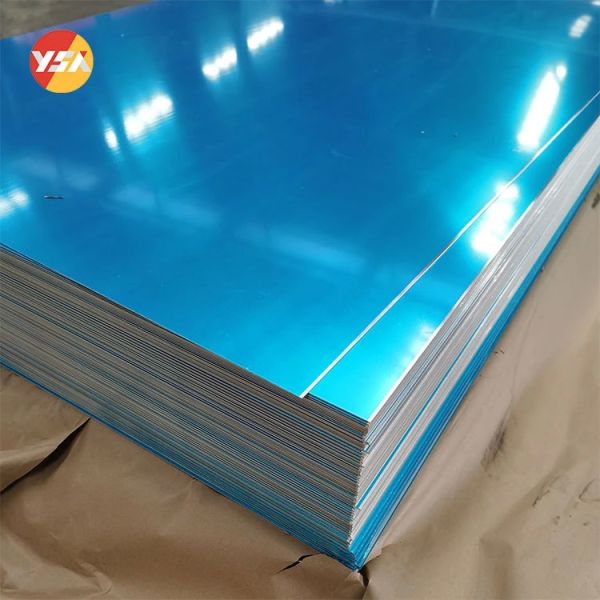

18 Gauge Aluminum Sheet

Our 18 gauge aluminum sheet is precisely 0.043 inches (approximately 1.024mm) thick. YSA is a trusted supplier, committed to providing high-quality aluminum plates. Our aluminum plates are free from defects such as side bends, surface oil stains, blisters, waves, peeling, and black spots. We export to over 70 countries, offering high quality at competitive prices with 24/7 online price updates.

Key Benefits:

  • Consistent Quality: Free from common defects, ensuring reliable performance.
  • Precise Dimensions: Accurate 0.043-inch thickness for specific applications.
  • Global Availability: Exported to over 70 countries.
  • Competitive Pricing: Updated prices ensure the best value.

Target Industries: Manufacturing, Construction, Automotive, Aerospace, and more.

Typical Applications: Panels, enclosures, brackets, and various fabrication projects.

Product Attributes

FOB Unit Ton
Product MOQ 1 Ton
FOB Price 0
Packaging & Delivery 7-25 days after order confirmation

Technical Specifications

General Specifications

Name Alloy Temper Thickness
18ga Aluminum Sheet 1060 1100 3003 3004 3005 5052 5083 6061, etc O, H12, H16, H18, H24, H32, etc 1.024 mm/ 0.043 inch
Width MOQ Delivery Time Standards
100-2600mm 1 Ton 7-25 days after order confirmation ASTM-B209,EN573-1,GB/T3880.1-2006
Price Terms
FOB, CIF, CFR, CNF, etc.

Mechanical Properties

Property Value
Tension strength Different alloys have different tensile strengths. For example, the tensile strength of 3003 H4 aluminum alloy is 145-195MPa; the tensile strength of 5052 H32 aluminum sheet is 210-260MPa.
Yield strength 30000-90000 psi
Elongation Different alloys have different elongations. For example, the elongation rate of 3003 aluminum is 10%; the elongation rate of 5052 aluminum plate is 12%.

4ft x 8ft 18 Gauge Aluminum Sheet Dimensions & Weight

Property Value
Density Approximately 0.0975 lbs/cubic inch
Width 4 feet/1220 mm/48 inches
Length 8 feet/2240 mm/96 inches
Thickness 18 ga
Volume 185.7024 cubic in
Weight 18.105984 lbs/289.695744 oz/8.21273619 kg

18 Gauge Aluminum Plate Weight per Square Foot

Property Value
pounds per square foot 0.565812 lbs/ft2
kilograms per square foot 0.256645 kg/ft2
ounce per square foot 9.052992 oz/ft2
