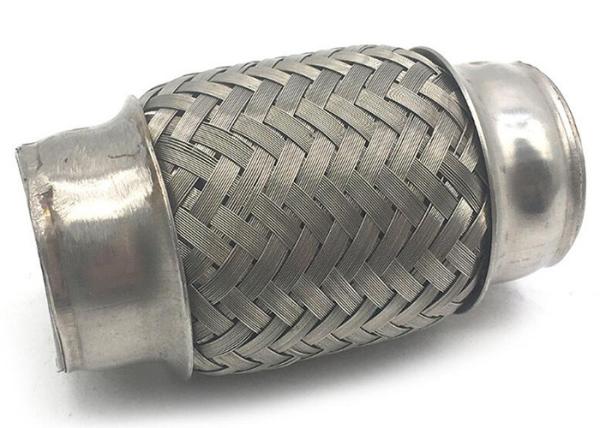

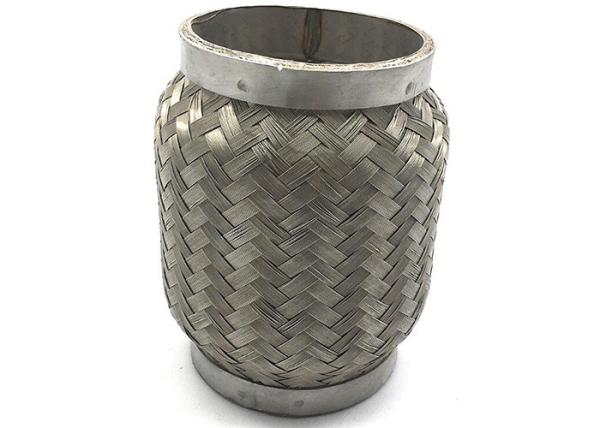

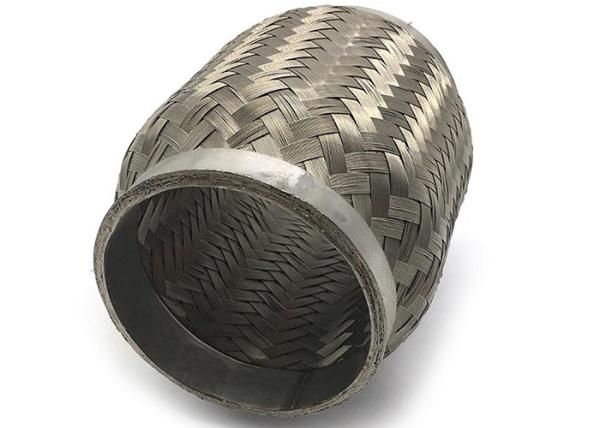

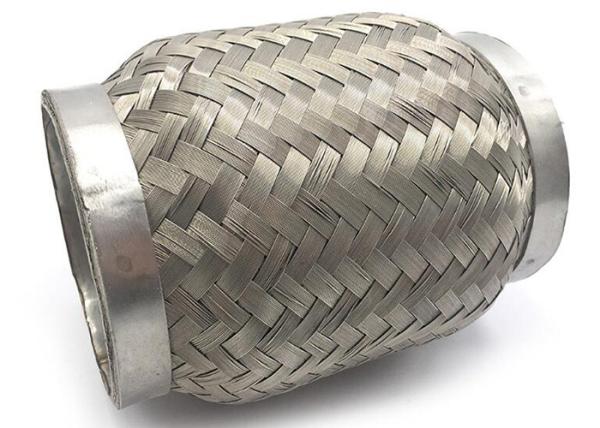

SS409 76mm X 203mm Flexible Exhaust Bellows
SS409 76mm X 203mm Flexible Exhaust Bellows
SS409 76mm X 203mm Flexible Exhaust Bellows
SS409 76mm X 203mm Flexible Exhaust Bellows
SS409 76mm X 203mm Flexible Exhaust Bellows
SS409 76mm X 203mm Flexible Exhaust Bellows
SS409 76mm X 203mm Flexible Exhaust Bellows
SS409 76mm X 203mm Flexible Exhaust Bellows
Specifications
Brand Name :
YP
Model Number :
YP13404-YP70200
Place of Origin :
Hebei , China
MOQ :
1pc
Price :
USD$ 1.5--8.99 /PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80000PCS/MONTH
Delivery Time :
10-14 DAYS
Packaging Details :
carton
Other Name :
Stainless Steel Exhaust Flexible Bellow , Flex Exhaust Bellows
Fitment :
Universal
Type :
Interlock Braided Exhaust Pipe
Size :
76mm x 203mm , 51x152mm
Apply for :
Vehicle Exhaust System
MOQ :
1pc
Delivery time :
5 days if stock, 10-20 if no stock
Warranty :
1 Year
Overall Length :
4”-12”
Finish :
Plain
Description

High Temperature Resistance Exhaust Flexible Bellow , Flex Exhaust Bellows in Stainless Steel

The flexible exhaust pipe bellow is a flex. piece of pipe that allows the exhaust system some flexibility. It is installed in the exhaust pipe between the engine exhaust manifold and the muffler, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of the exhaust muffler system.

Features and Benefits:

1 . Easily installation. There is no need to remove the whole exhaust system. Only to cut out the failed exhaust flex pipe and install a new spare part using the welding method or clumps instead
2 . Cost-effective. Malfunctioning exhaust flex pipe can be easily replaced with a new one without the necessity to purchase the entire exhaust unit
3 . Applicable to universal Exhaust pipe
4 . Manufactured from stainless steel for durability and corrosion resistance
5 . Many styles and sizes available for your installation needs
6 . 1 Year Warranty

Quick Information:

Product Name

Stainless Steel Exhaust Muffler Flexible Pipe

Material

Stainless Steel 409 / 304 / 316, Aluminum

Quality

Genuine / OEM

Packing

Bubble bag, Wooden Case, Neutral packing or negotiated

MOQ

1 pc

Size / Inner Diameter

1.5"-6" (1.5” / 1.75” / 2.0” / 2.25” / 2.5” / 3.0” / 3.5” / 4.0” )

Length

4” - 12”

Wall Thickness

1.0mm , 1.2mm

Color

Silver

Price Term

EXW , FOB , CIF , C&F

Car Model

Universal

Application / Usage

Muffler , Car Exhaust System , Turbos , Waste-gates , Blow-off Valves

Delivery time

5 days if stock , 10-20 if no stock as per quantity

Advantage

  • High flexibility with long life
  • For high temperature
  • Anti-corrosion
  • Absorb noise and decouple vibration

Warranty

6 months

SampleAvailable


Following common 4 types of exhaust flexible pipe , customized sizes are available on us too.

1.Exhaust Flexible Pipe I
an outer braid + an inner bellow, such type is for light use.
2. Exhaust Flexible Pipe II
an outer braid + bellows in the middle + an inner braid, such type offers more flexibility, for medium use, has longer life
3. Exhaust Flexible Pipe III
Braided Flexible pipe with welded nipples
4. Exhaust Flexible bellow IV (bellow)
an outer braid + a interlock tube with bellows in the middle, for heavy use. The interlock pipe is used to reduce vibration and noise, and make the pipe most longest life.

SS409 76mm X 203mm Flexible Exhaust Bellows

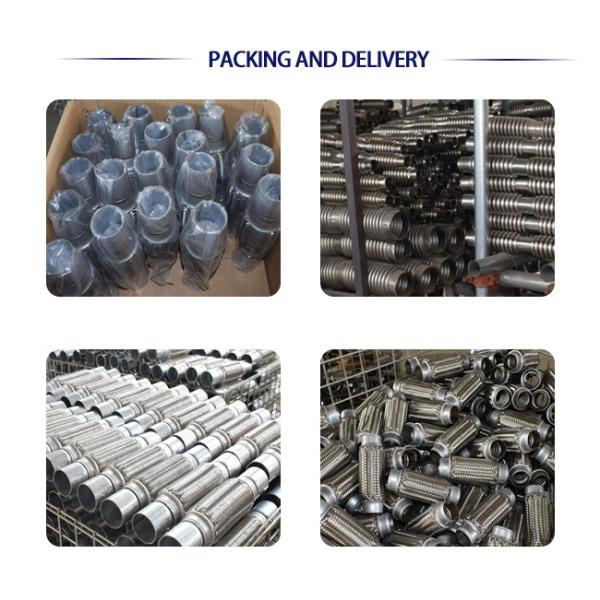

Warehouse and Packing:

SS409 76mm X 203mm Flexible Exhaust Bellows

Specifications:

1-3/4(45mm)4”(102mm)2-1/2”(63.5)4”(102mm)43mm120mm
6”(152mm) 6”(152mm) 165mm
8”(203mm) 8”(203mm) 180mm
9”(230mm) 9”(230mm)50mm120mm
10”(254mm) 10”(254mm) 165mm
11”(280mm) 11”(280mm)54.5mm120mm
12”(305mm) 12”(305mm) 150mm
2”(51mm)4”(102mm)3”(76.2mm)4”(102mm) 180mm
6”(152mm) 6”(152mm) 200mm
8”(203mm) 8”(203mm) 250mm
9”(230mm) 9”(230mm)60mm160mm
10”(254mm) 10”(254mm) 200mm
11”(280mm) 11”(280mm) 240mm
12”(305mm) 12”(305mm)65mm150mm
2-1/4”(57.2mm)4”(102mm)3-1/2”(89mm)6”(152mm) 200mm
6”(152mm) 8”(203mm)70mm100mm
8”(203mm) 9”(230mm) 120mm
9”(230mm) 10”(254mm) 150mm
10”(254mm) 12”(305mm) 200mm
11”(280mm)


Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125...

12”(305mm)


Contact Us:
If any inquiry, pls contac us any time :

Becky Shao
Email : becky@ypmachinery.com
Whatsapp / Cell / Wechat: +86-15933316077

SS409 76mm X 203mm Flexible Exhaust Bellows
