Universal SS304 51 * 150mm Exhaust Bellow Pipe
Universal SS304 51 * 150mm Exhaust Bellow Pipe
Universal SS304 51 * 150mm Exhaust Bellow Pipe
Universal SS304 51 * 150mm Exhaust Bellow Pipe
Universal SS304 51 * 150mm Exhaust Bellow Pipe
Universal SS304 51 * 150mm Exhaust Bellow Pipe
Universal SS304 51 * 150mm Exhaust Bellow Pipe
Universal SS304 51 * 150mm Exhaust Bellow Pipe
Specifications
Brand Name :
YP
Model Number :
YP13404-YP70200
Place of Origin :
Hebei , China
MOQ :
1pc
Price :
USD$ 1.5--8.99 /PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80000PCS/MONTH
Delivery Time :
10-14 DAYS
Packaging Details :
carton
Product Material :
Stainless Steel 304
Parts :
Auto engine parts
Delivery time :
5 days if stock, 10-20 if no stock
Inlet Diameter :
51mm
Type :
Single braided , double braided ,
Overal Length :
150mm
Application :
Vehicle Exhaust System
Finish :
Plain
Description

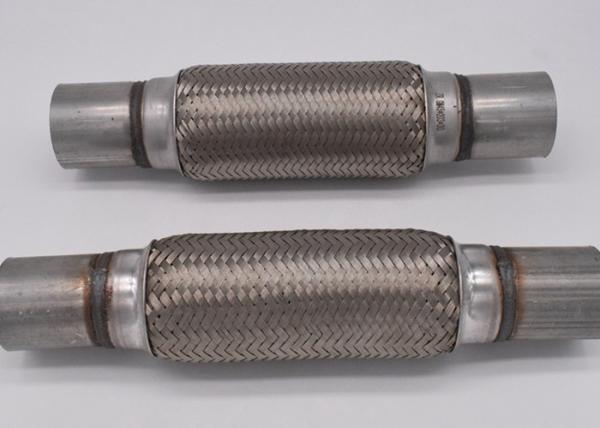

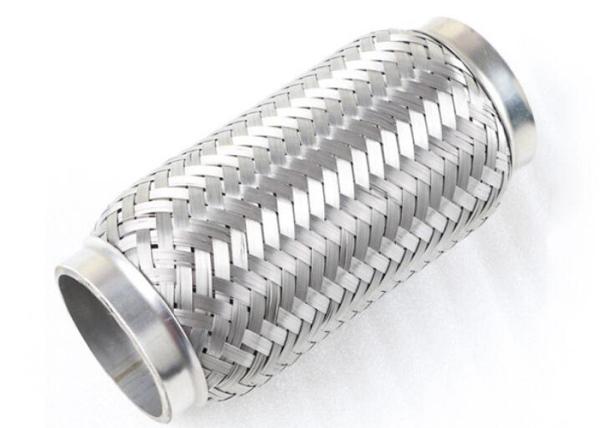

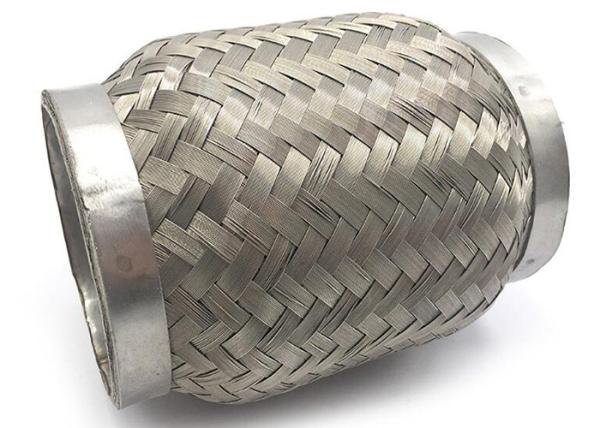

51 * 150 Stainless Steel Exhaust Bellow Pipe , flexible Bellows Pipe

Product Quick Information:

Product Name

51 * 150 Stainless Steel Exhaust Bellow Pipe , flexible Bellows Pipe

Material

Stainless Steel 409 / 304 / 316, Aluminum

Packing

Bubble PE bag, Wooden Case, Neutral packing or negotiated

Size / Inner Diameter

51mm (2 inch) , with braided length 150mm (6inch) , and overall length 250mm (10inch) , other sizes are available too.

Wall Thickness

1.0mm , 1.2mm

Color

Silver

Price Term

EXW , FOB , CIF , C&F

Car Model

Universal

Application / Usage

Muffler , Car Exhaust System , Turbos

Sample Available


Specification Introduction:

1. ID:1"~6" Length:4"~17" or as requirement

2. To resolve minor deviation because of piping connection and eliminate the pipeline residual stress;

3.Metal bellows to absorb large axial displacement between straight tube and support frame , and small horizontal displacement;
4 Very.Easy to install, clean and maintenance.

5. More types are available

6. Outer braid stainless steel,knitted by 12 units

7. Cap stainless steel or aluminized

8. Working pressure 0~5 Mpa

9. Packaging each one with a PE bag , usually 25 pieces in a carton box as usual or as requirement


Universal SS304 51 * 150mm Exhaust Bellow Pipe


Available Types :

Universal SS304 51 * 150mm Exhaust Bellow Pipe

Standard Sizes:

Nominal Inside Diameter I.D.

Overall Length
O/L

 Nominal Inside Diameter I.D.

Overall Length
O/L

 Nominal Inside Diameter I.D.

Overall Length
O/L

1-3/4(45mm)

 4”(102mm) 2-1/2”(63.5) 4”(102mm) 43mm 120mm
6”(152mm) 6”(152mm) 165mm
8”(203mm) 8”(203mm) 180mm
9”(230mm) 9”(230mm) 50mm 120mm
10”(254mm) 10”(254mm) 165mm
11”(280mm) 11”(280mm) 54.5mm 120mm
12”(305mm) 12”(305mm) 150mm
2”(51mm) 4”(102mm) 3”(76.2mm) 4”(102mm) 180mm
6”(152mm) 6”(152mm) 200mm
8”(203mm) 8”(203mm) 250mm
9”(230mm) 9”(230mm) 60mm 160mm
10”(254mm) 10”(254mm) 200mm
11”(280mm) 11”(280mm) 240mm
12”(305mm) 12”(305mm) 65mm 150mm
2-1/4”(57.2mm) 4”(102mm) 3-1/2”(89mm) 6”(152mm) 200mm
6”(152mm) 8”(203mm) 70mm 100mm
8”(203mm) 9”(230mm) 120mm
9”(230mm) 10”(254mm) 150mm
10”(254mm) 12”(305mm) 200mm
11”(280mm)

Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125...
12”(305mm)


Packing and Warehouse:

Universal SS304 51 * 150mm Exhaust Bellow Pipe
Contact me:

If any inquiry, pls contac us any time :

Becky Shao
Email : becky@ypmachinery.com
Whatsapp / Cell / Wechat: +86-15933316077
