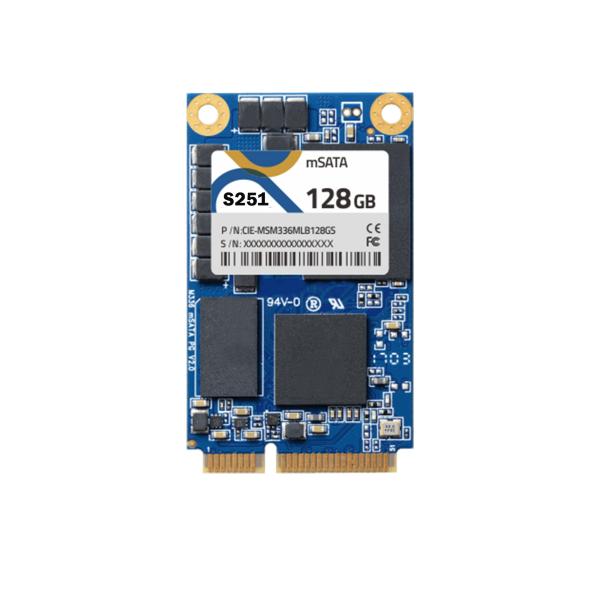

S251 Industrial Grade MSATA SSD 256GB 512GB 1tb Mini Sata Ssd
S251 Industrial Grade MSATA SSD 256GB 512GB 1tb Mini Sata Ssd
Specifications
Brand Name :
NUW
Model Number :
S251
Place of Origin :
China
Payment Terms :
T/T
Certification :
AEC-Q100、RoHS、REACH、UL/CE
MOQ :
10
Price :
$70-450/pcs
Supply Ability :
100k/month
Delivery Time :
10-15days
Packaging Details :
Customizable Packaging Available
Form Factor :
mSATA
Interface :
SATA Ⅲ(SATA Ⅱ& SATA Ⅰ COMPATIBLE)
Operating Temperature :
-40℃ ~ 85℃
Dimension(mm) :
50.95×30.0×3.8
Description

Product Description

NUW S251 series industrial mSATA SSD Module combines ​compact size (50x30mm) with ​SATA III 6Gb/s speeds (up to 560/520MB/s), engineered for harsh environments with ​​-40°C to 85°C wide-temperature tolerance and ​anti-vibration/anti-shock design. Built with ​industrial-grade 3D TLC NAND and features like ​LDPC ECC, ​power-loss protection (PLP), and ​conformal coating, it ensures data integrity and longevity in mission-critical applications. Ideal for ​industrial automation, ​transportation systems, ​medical devices, and ​embedded edge computing, this module offers 32GB–2TB capacities to balance rugged reliability with cost-efficiency.

Product Parameters

Basic Information

Form Factor

mSATA

Interface

SATA Ⅲ(SATA Ⅱ& SATA Ⅰ COMPATIBLE)

Dimension(mm)

50.95×30.0×3.8

Cache

DRAM-Less

Flash

TLC

Capacity

pSLC:32GB, 64GB, 128GB, 256GB, 512GB

TLC:128GB, 256GB, 512GB, 1TB, 2TB

Temperature

Operating Temperature

-40℃ ~ 85℃

Storage Temperature

-55℃ ~ 95℃

Performance

Sequential Read/Write

560MB/s; 520MB/s

Random Read/Write(4K) IOPS

98K IOPS; 30K IOPS

Reliability

MTBF

2,000,000hrs

Vibration

15g(10~2000Hz)

Shock

1500g/0.5ms

Humidity

5% ~ 95% (No condensing)

Electrical

Power Supply

3.3V±5%

Power Consumption

Active≤3.2W

Idle≤0.7W

Optional Functions

Secure Erase

Y

Quick Erase

Y
