304L ASTM A249 Welded Stainless Steel Tube Heat Exchanger Polished Stainless Steel Tubing
304L ASTM A249 Welded Stainless Steel Tube Heat Exchanger Polished Stainless Steel Tubing
304L ASTM A249 Welded Stainless Steel Tube Heat Exchanger Polished Stainless Steel Tubing
304L ASTM A249 Welded Stainless Steel Tube Heat Exchanger Polished Stainless Steel Tubing
Specifications
Brand Name :
KORER
Model Number :
304, 304L, 316, 316L,317L ,2205,2507
Certification :
ISO 9001-2015, PED
Place of Origin :
China
MOQ :
1 Metric Ton / Per Size
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000 Metric Tons Per Year
Delivery Time :
15 - 45 Days Or Depends on Quantity
Packaging Details :
Wooden Box With Angle Steel Frame Or Other Seaworthy Bundle Packing
Commodity Name :
Stainless Steel Tubes
Standard :
ASME SA249
Material Grade :
304, 304L, 316, 316L,317L ,2205,2507
Application :
Heat Exchanger Tube
Out Diameter :
6mm - 114.3mm
Wall Thickness :
0.3mm - 4.5mm
Description
Welded 304/L Stainless Steel Tubes ASTM A249 For Heat Exchanger Pipe
Product Introduction

The Welded 304/L Stainless Steel Tube, manufactured according to ASTM A249 / ASME SA249, is a high-performance austenitic stainless steel pipe designed for heat exchangers, condensers, and evaporators. Produced by Wuxi Korer Stainless Steel Co., Ltd., this tubing features a bright annealed surface, precise dimensional control, and excellent corrosion resistance. The low-carbon version, 304L, minimizes intergranular corrosion after welding and offers superior durability in high-temperature and corrosive environments. These tubes are widely used in power generation, petrochemical, food, and pharmaceutical industries.

Applications
  • Heat exchangers and condensers in thermal, chemical, and petrochemical plants
  • Desalination, HVAC, and refrigeration systems
  • Pharmaceutical and food processing pipelines
  • Automotive and hydraulic exhaust systems
  • General industrial fluid transfer and mechanical structures
Advantages
  • Excellent corrosion resistance in various acidic and chloride environments
  • Low carbon (304L) prevents carbide precipitation during welding
  • High heat resistance and oxidation stability up to 870°C
  • Smooth internal surface for better heat transfer and fluid flow
  • Full compliance with ASTM A249 / ASME SA249 standards and ISO 9001 quality management
Material Composition (304 / 304L Stainless Steel)
Element 304 (%) 304L (%)
Chromium (Cr) 18.0-20.0 18.0-20.0
Nickel (Ni) 8.0-11.0 8.0-12.0
Carbon (C) ≤0.08 ≤0.03
Manganese (Mn) ≤2.0 ≤2.0
Silicon (Si) ≤1.0 ≤1.0
Phosphorus (P) ≤0.045 ≤0.045
Sulfur (S) ≤0.03 ≤0.03
Technical Specifications
Parameter Value
Standard ASTM A249 / ASME SA249
Grade 304 / 304L
Manufacturing Type Longitudinally Welded
Outer Diameter 6 - 219 mm
Wall Thickness 0.5 - 6.0 mm
Length Up to 12 meters
Surface Finish Bright Annealed / Polished / Pickled
Application Heat Exchanger, Condenser, Boiler Tube
Manufacturing Process

Raw Material Inspection → Slitting → Tube Forming → TIG/Plasma Welding → Heat Treatment (Bright Annealing) → Straightening → Pickling or Polishing → Non-Destructive Testing (Eddy Current / Ultrasonic) → Dimensional Inspection → Marking → Packaging.

FAQ
Q1: What's the difference between 304 and 304L?
A: 304L contains less carbon, improving weldability and corrosion resistance in welded structures.
Q2: Can these tubes be used for food or pharmaceutical applications?
A: Yes, the smooth inner surface and hygienic properties make them suitable for sanitary systems.

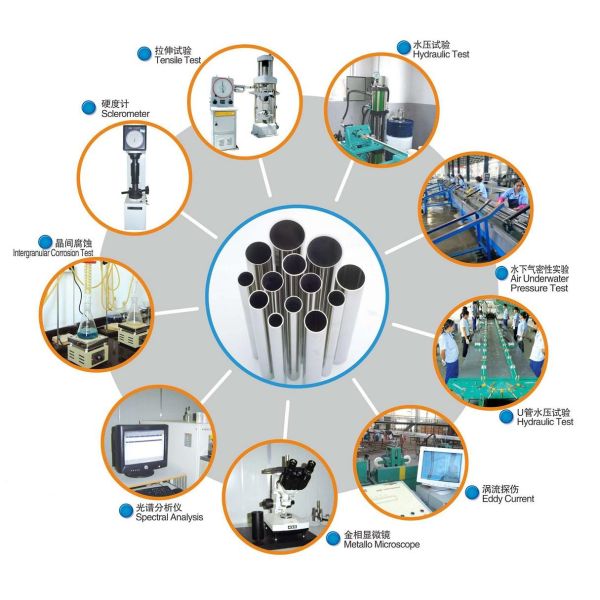

Q3: What testing methods are applied?
A: Each tube undergoes Eddy Current, Hydrostatic, and Chemical Composition testing to ensure full compliance.
304L ASTM A249 Welded Stainless Steel Tube Heat Exchanger Polished Stainless Steel Tubing
Core Keywords: ASTM A249 stainless steel tube, 304L welded stainless steel pipe, heat exchanger tubing, bright annealed stainless steel tube, ASME SA249 304L pipe manufacturer, welded stainless steel heat exchanger tube, corrosion-resistant stainless steel pipe, industrial stainless tubing, KORER stainless steel tube supplier China, stainless steel condenser pipe.
