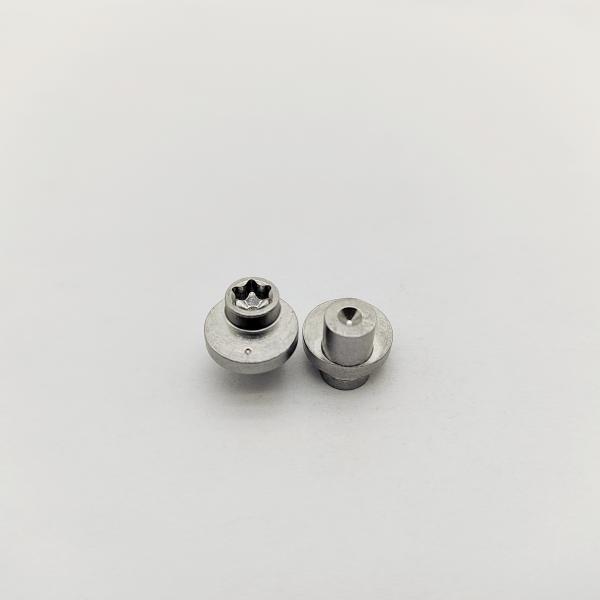

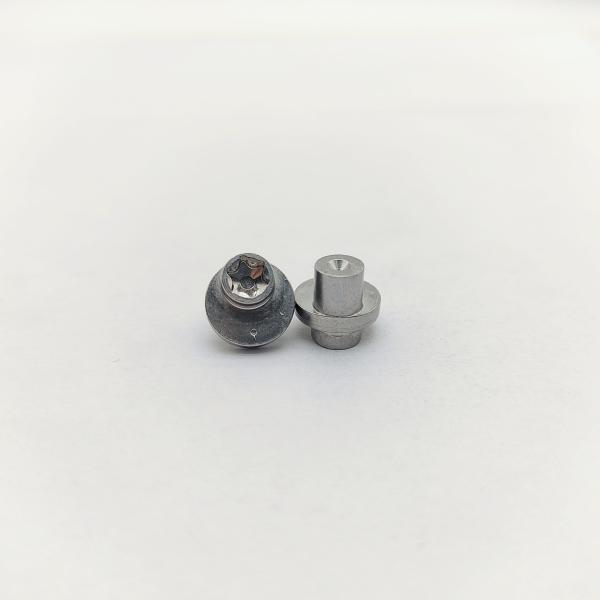

Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets
Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets
Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets
Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets
Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets
Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets
Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets
Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets
Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets
Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets
Specifications
Brand Name :
guanbiao
Model Number :
M8x20mm to M16x100mm
Certification :
ISO9001
Place of Origin :
China
MOQ :
50000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000000
Delivery Time :
15-20 work days
Packaging Details :
Plastic bag + carton + pallet
Screw Shank Length :
Customizable
Package Quantity :
50000
Finish :
Dacromet® Coating (1,000hrs Salt Spray)
Screw Shank Diameter :
Customizable
Accuracy :
0.01mm
Drive Type :
Torx
Size :
M8x20mm to M16x100mm
Country Of Origin :
China
Tooth :
no
Description

Torx Eccentric Screws - Heavy Duty Misalignment Correction - Grade 12.9 Steel - Dacromet Coated - Custom Offsets

Solve frame misalignment with Grade 12.9 Torx eccentric screws. ±0.5-2.5mm offset adjustment. Dacromet coated alloy steel. For machinery, conveyors & structural repair. High torque T30-T50 drive. Custom specs.

Engineered for **industrial frame misalignment**, these **Torx Eccentric Screws** feature an **off-axis shank (±0.5-2.5mm offset)** to compensate for drilled hole deviations up to 5mm. Manufactured from **quenched-tempered alloy steel (Grade 12.9)**, they deliver 1,200MPa tensile strength with **Dacromet coating** for corrosion resistance in harsh environments. The **Torx drive (T30-T50)** ensures maximum torque transfer without cam-out.

Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets


TECHNICAL SPECIFICATIONS
Drive Type Torx TR (Tamper-Resistant with Pin)
Eccentric Offset (e) ±0.5mm, ±1.0mm, ±1.5mm, ±2.0mm, ±2.5mm
Torx Size T30 (M8), T40 (M10), T45 (M12), T50 (M16)
Sizes M8x20mm to M16x100mm
Tensile Strength 1,200 MPa
Material Alloy Steel 42CrMo (Grade 12.9)
Surface Treatment Dacromet® Coating (1,000hrs Salt Spray)
Max Plate Thickness 15mm (per side)
Customization Non-standard offsets, lengths, coatings

Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets


Primary Uses & Applications:

- Conveyor frame alignment
- Heavy machinery weldment repair
- Structural steel hole compensation
- Mining equipment assembly
- Railway rolling stock maintenance


Torx Eccentric Screws Grade 12.9 Steel Dacromet Coated Custom Offsets


How to Use:

1. **Rotate** screw shank to align offset direction with hole deviation.
2. **Insert** through misaligned holes.
3. **Torque** with **TR Torx bit** (e.g., TR40 for M10) at **90-120 Nm** (M10).
4. **Clamp** plates securely without re-drilling.
