304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
Specifications
Brand Name :
guanbiao
Model Number :
M4, M5,M6
Certification :
ISO9001
Place of Origin :
China
MOQ :
50000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000000
Delivery Time :
15-20 work days
Packaging Details :
Plastic bag + carton + pallet
Drive Style :
Slotted
Color :
Matte Grey, Customizable
Package :
Plastic Bag
Standard :
ISO, Non-standard
Production Process :
Cold heading, cold forging
Length :
12mm-30mm
Head Size :
M4, M5,M6
Use :
For electric meters
Customize :
Can Customize As Your Drawing And Design
Affordable :
Yes
Material :
A2-70 Stainless Steel (304)
Quantity :
50000 Pieces
Tooth Size :
Customizable
Rustproof :
Yes
Description

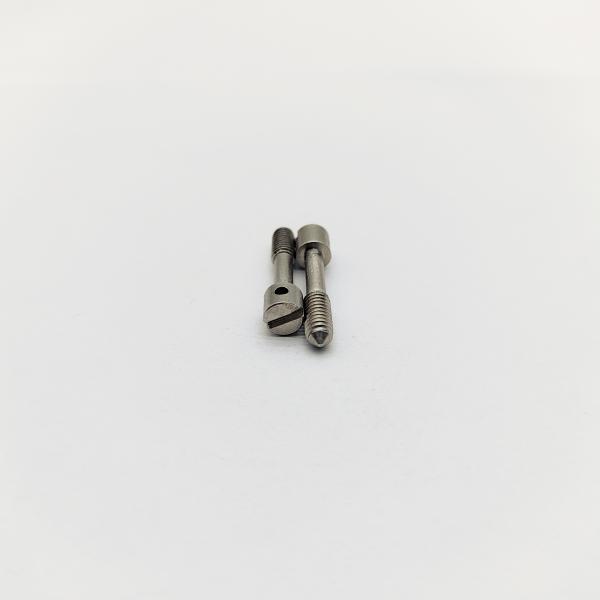

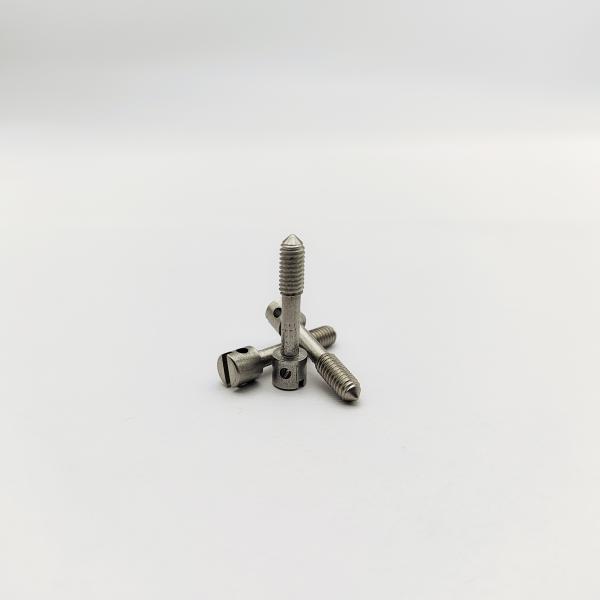

304 SS Slotted Lead Sealing Screws - Half Thread - Round Head with Hole - Utility Meter Security - M4/M5/M6

Tamper-evident slotted lead screws. 304 stainless steel, partial thread, blunted point. Round head with Ø1.8mm hole. Sizes M4x12mm to M6x25mm. Passivated finish. IEC 62055 compliant.

Secure critical assets with **slotted lead sealing screws** featuring a **blunted self-tapping point** and **partial thread design** for rapid installation. Machined from **A2-70 stainless steel (304)**, these screws combine a **standard slotted drive** with a **vertical security hole (Ø1.8mm)** to enable lead seal attachment. Passivated finish resists weathering in outdoor electrical enclosures.

304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters


TECHNICAL SPECIFICATIONS
Thread Size M4, M5, M6
Head Type Round Head with Signal Hole
Total Length (L) M4: 12-20mm; M5: 16-25mm; M6: 20-30mm
Thread Length Partial Thread (50-60% of L)
Head Diameter M4: 7.0mm; M5: 8.5mm; M6: 10.0mm
Drive Type Slotted (Slot Width: 0.8mm)
Material A2-70 Stainless Steel (304)
Surface Treatment Passivation (Matte Grey), Customizable
Point Type Blunted Self-Tapping Point** (120° tip angle)
Customization Slot width/depth, thread ratio, hole diameter

304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters


Primary Uses & Applications:

- Electricity meter sealing
- Water/gas valve security
- Transportation fare boxes
- Voting machine tamper evidence
- Regulatory compliance seals


304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters


How to Use:

1. **Press blunt point** against metal/plastic surface.
2. **Hand-tighten** with slotted screwdriver until seated.
3. Thread **lead seal wire** through head hole.
4. **Crimp seal** with calibrated pliers
