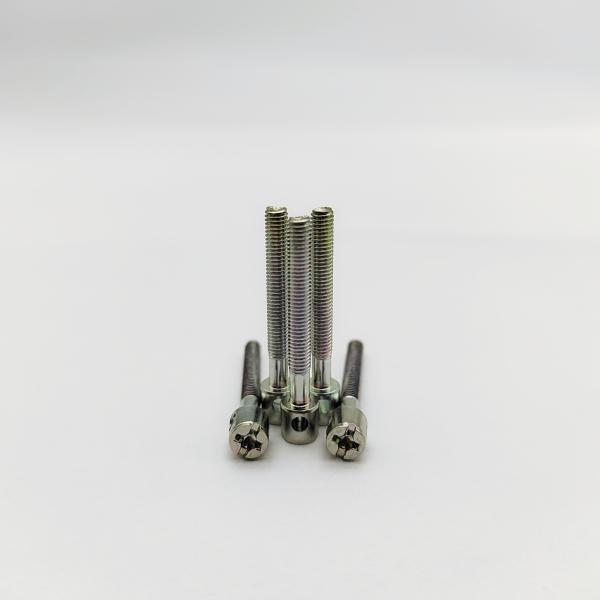

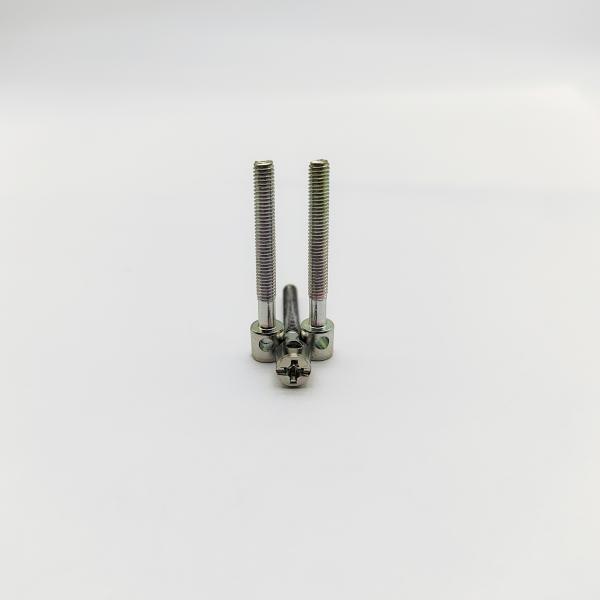

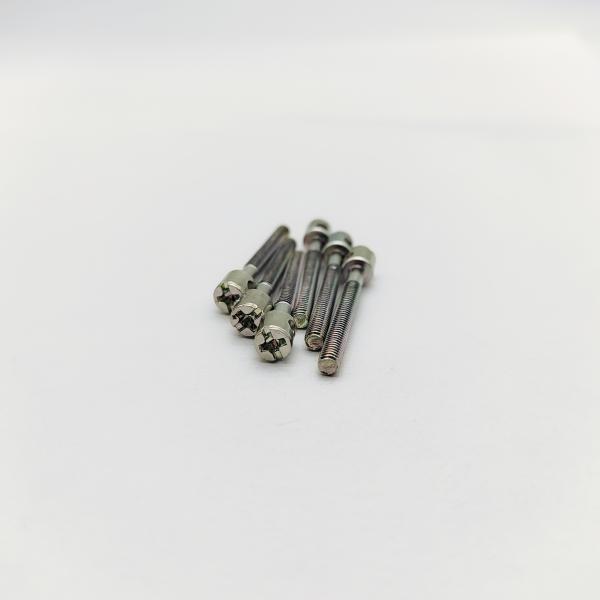

316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
Specifications
Brand Name :
guanbiao
Model Number :
M4, M5,M6
Certification :
ISO9001
Place of Origin :
China
MOQ :
50000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000000
Delivery Time :
15-20 work days
Packaging Details :
Plastic bag + carton + pallet
Drive Style :
Phillips/Slotted Combo
Color :
Customizable
Package :
Plastic Bag
Standard :
ISO, Non-standard
Production Process :
Cold heading, cold forging
Length :
M4: 16-25mm; M5: 20-30mm; M6: 25-40mm
Head Size :
M4-M5
Use :
For electric meters
Customize :
Can Customize As Your Drawing And Design
Affordable :
Yes
Material :
Stainless Steel
Quantity :
50000 Pieces
Tooth Size :
Customizable
Rustproof :
Yes
Description

316 SS Marine Grade Meter Screws - Tamper Proof with Hole - Phillips/Slotted Drive - Salt Water Resistance - M4/M5/M6

Premium 316 stainless meter screws for coastal areas. Phillips/slotted combo, round head with hole. M4-M6 sizes. Electropolished finish. Withstands salt spray. ISO 3506 certified.

Engineered for harsh coastal environments, **A4 Stainless Electric Meter Screws** offer superior saltwater resistance with **316 stainless steel construction**. The **electropolished finish** prevents corrosion while the **security hole** enables sealing with anti-tamper wires. Ideal for marine meters and coastal utility boxes.

316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6


TECHNICAL SPECIFICATIONS
Thread Size M4, M5, M6
Head Type Round Head with Signal Security Hole (Ø2.0mm)
Total Length (L) M4: 16-25mm; M5: 20-30mm; M6: 25-40mm
Thread Length Half Thread (L-4mm)
Head Diameter M4: 7mm; M5: 8.5mm; M6: 10mm
Drive Type Phillips/Slotted Combo (PH2/P3 + 4mm Slot)
Material A4-80 Stainless Steel (316)
Surface Treatment Passivation + Electropolishing (Ra<0.4µm)
Customization Custom hole diameters, laser engraving

316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6


Primary Uses & Applications:

- Coastal electricity substations
- Offshore meter cabinets
- Chemical plant metering
- High-humidity regions
- ISO 15118-compliant EV chargers


316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6


How to Use:

1. Clean threads with isopropyl alcohol.
2. Install with **torque-controlled driver** (1.5-3Nm for M5).
3. Apply **marine-grade seal wire** through hole.
4. Crimp with **numbered security seal**.
