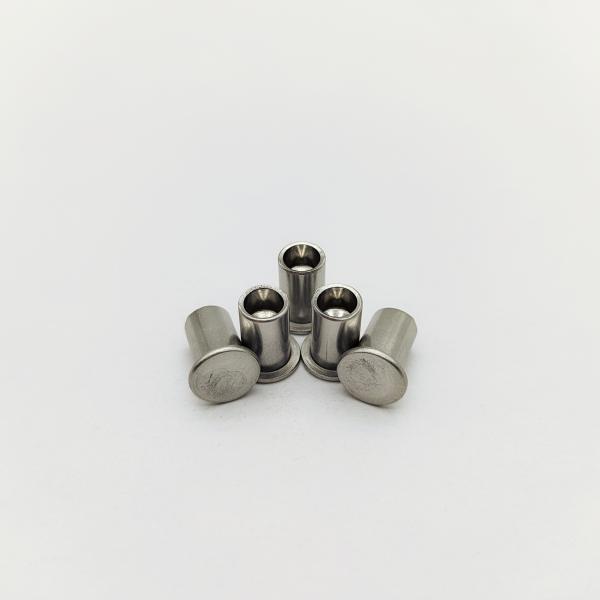

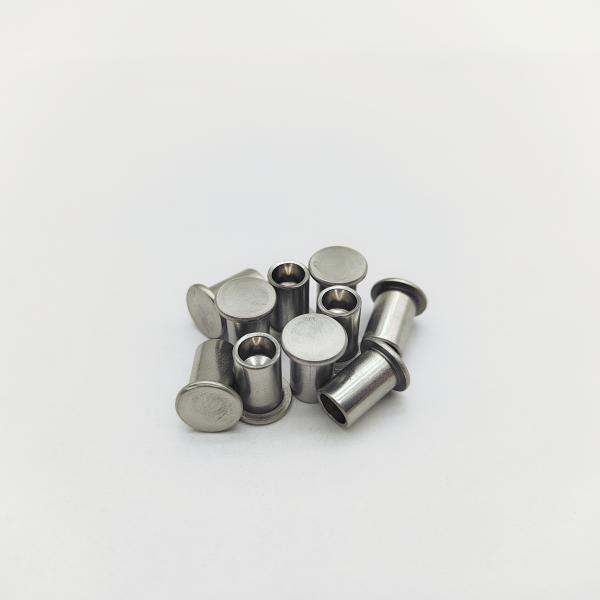

304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6
304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6
304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6
304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6
304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6
304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6
304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6
304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6
304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6
304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6
Specifications
Brand Name :
guanbiao
Model Number :
Customizable
Certification :
ISO9001
Place of Origin :
China
MOQ :
50000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000000
Delivery Time :
15-20 work days
Packaging Details :
Plastic bag + carton + pallet
Product Application :
Electronics chassis assembly
Head Style :
Flat
Thread :
No
Lead Time :
15~20 working days
Finsh :
Passivation (Matte Grey)
Installation Method :
Riveting
Material :
Stainless Steel
Tolerant :
+/- 0.05mm
Dimension :
We Can Customise to your dimension
Grip Range :
0.5-4.0mm
Description

304 SS Flat Head Semi-Tubular Rivets - 100° Countersunk - DIN 7337 - M3 to M6 Sizes - Passivated

Corrosion-resistant semi-tubular rivets with 100° flat head. 304 stainless steel, hollow depth 1.5D. Sizes: Ø3-6mm. Passivated finish. For electronics, machinery & automotive. Custom lengths.

Achieve flush-surface fastening with **DIN 7337 compliant semi-tubular rivets** featuring a precision **100° flat head** and **controlled hollow depth** (1.5× shank diameter). Made from **A2-70 stainless steel (304)**, these rivets provide reliable clinching force for sheet metal, plastics, and leather assemblies. Passivated finish ensures corrosion resistance in industrial environments.

304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6


TECHNICAL SPECIFICATIONS
Head Type 100° Flat Head (Countersunk)
Head Diameter (D) Ø4.8mm (Ø3mm rivet), Ø7.2mm (Ø5mm rivet)
Total Length (L) 6-20mm (e.g., Ø4mm: 6/8/10/12/15mm)
Hollow Depth (H) .5×d** (e.g., Ø4mm rivet = 6mm hollow)
Hole Diameter (d) Ø1.8mm (Ø3mm), Ø2.4mm (Ø5mm)
Material A2-70 Stainless Steel (304)
Surface Treatment Passivation (Matte Grey)
Grip Range 0.5-4.0mm
Customization Non-standard L/h ratios, special diameters

304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6


Primary Uses & Applications:

- Electronics chassis assembly
- Automotive interior trim
- Machinery guards & covers
- Leather goods & luggage hardware
- Signage mounting systems


304 Stainless Steel Flat Head Semi-Tubular Rivets DIN 7337 M3-M6


How to Use:

1. Drill hole = shank diameter (e.g., Ø4mm hole for Ø4mm rivet).
2. Insert rivet through materials.
3. Place **flat die** under head.
4. Use **rivet setter** to compress hollow end into 1.5D mushroom shape.
5. Verify flush head seating.
