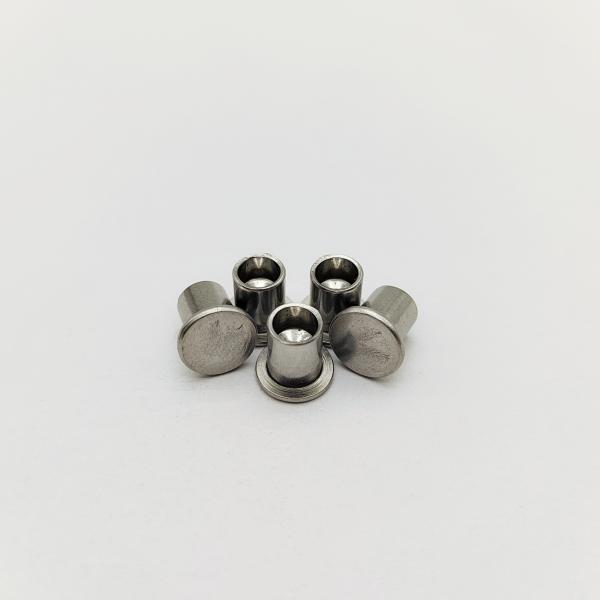

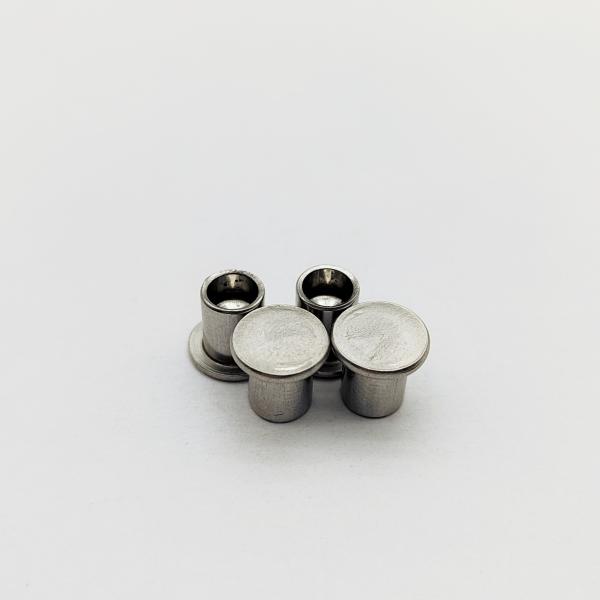

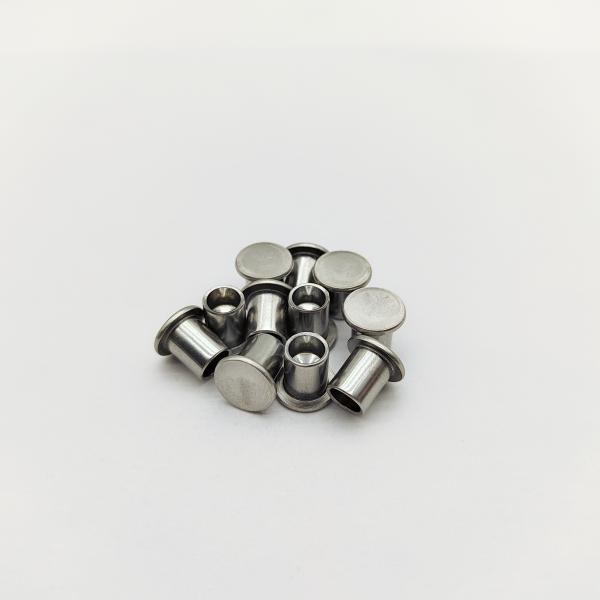

304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
Specifications
Brand Name :
guanbiao
Model Number :
Customizable
Certification :
ISO9001
Place of Origin :
China
MOQ :
50000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5000000
Delivery Time :
15-20 work days
Packaging Details :
Plastic bag + carton + pallet
Shear Strength :
M4: 1,850N (DIN EN ISO 898)
Product Application :
Electronics chassis assembly
Head Style :
Flat
Thread :
No
Lead Time :
15~20 working days
Finsh :
Passivation (Matte Grey)
Installation Method :
Riveting
Material :
Stainless Steel
Tolerant :
+/- 0.05mm
Dimension :
We Can Customise to your dimension
Description

304 SS Semi-Tubular Rivets - Flat Head 120° - DIN 7340 - Cold Forged - M3 to M8 Sizes

Corrosion-resistant A2 stainless semi-tubular rivets. Flat head 120°, hollow depth 1.25-1.75D. Sizes M3-M8. Passivated finish. For electronics, furniture & machinery. Custom lengths.

Achieve flush, high-strength joints with **cold-forged A2 stainless steel semi-tubular rivets**. Featuring a precision **120° flat head** and **controlled hollow depth** (1.5D), these DIN 7340-compliant rivets provide reliable fastening for sheet metal, plastics, and leather. The passivated finish resists corrosion in indoor industrial environments.

304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8


TECHNICAL SPECIFICATIONS
Head Type Flat Head (120° Countersink Angle)
Head Diameter (D) M3: 6.0mm; M4: 8.0mm; M5: 9.5mm; M6: 11.0mm
Total Length (L) M3: 6-20mm; M5: 8-30mm; M8: 12-50mm
Hollow Depth (H) 1.5D (e.g., M4: 6.0mm)
Hole Diameter (d) 0.6D (e.g., M4: 2.4mm)
Material A2-70 Stainless Steel (304)
Surface Treatment Passivation (Matte Grey)
Shear Strength M4: 1,850N (DIN EN ISO 898)
Customization Non-standard L/H ratios, head angles

304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8


Primary Uses & Applications:

- Electronics chassis assembly
- Furniture hinges and brackets
- Machinery guards
- Automotive interior trim
- Leather goods hardware


304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8


How to Use:

1. Drill hole = Rivet diameter +0.1mm (e.g., Ø4.1mm for M4).
2. Insert rivet through materials.
3. **Set with semi-tubular rivet tool**:
- Position die supporting head
- Apply pressure to deform hollow end into 1.5D flange
4. Optimal pressure: M4=3.5kN
