DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4 For Torx Machine
DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4 For Torx Machine
DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4 For Torx Machine
DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4 For Torx Machine
DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4 For Torx Machine
DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4 For Torx Machine
Specifications
Brand Name :
guanbiao
Model Number :
1/4-20*3/4"
Certification :
ISO, GB, BS, DIN, ANSI,JIS
Place of Origin :
China
MOQ :
50000PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000PCS/day
Delivery Time :
10-15 work days
Packaging Details :
Plastic bag 1 small box +outer carton +pallets
Material :
SS302,SS304,SS316
Production Process :
Cold heading, cold forging
Surface finish/treatment :
polishing, passivation
Size :
1/4-20*3/4"
Thread type :
machine thread
Package :
Small box, small color box, export carton, and put on strong wood pallet
Single :
6.22g
Description

DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4" Torx Machine Screws Stainless

DIN912 Torx screw specification table (coarse teeth) Unit: mm
US diameter mm diameter Number of teeth Tooth diameter rolling diameter Head diameter thick head Hexagonal Hex hole depth Plum blossom hole
#4 2.85 40 2.70-2.82 2.36-2.40 4.47-4.65 2.74-2.85 3/32 1.30 T10
#5 3.18 40 3.03-3.15 2.69-2.72 5.03-5.21 3.07-3.18 3/32 1.45
#6 3.51 32 3.33-3.48 2.91-2.95 5.54-5.74 3.40-3.51 7/64 1.63 T10
#8 4.17 32 3.99-4.14 3.57-3.60 6.65-6.86 4.04-4.17 9/64 1.96 T25
#10 4.83 24 4.62-4.80 4.05-4.09 7.70-7.93 4.70-4.83 5/32 2.29 T27
#12 5.49 24 5.28-5.46 4.70-4.75
1/4 6.35 20 6.12-6.32 5.45-5.50 9.27-9.53 6.20-6.35 3/16 3.05 T30
5/16 7.94 18 7.69-7.91 6.93-6.98 11.61-11.91 7.77-7.92 1/4 3.84 T45
3/8 9.53 16 9.25-9.49 8.40-8.45 13.97-14.28 9.35-9.53 5/16 4.62
7/16 11.11 14 10.82-11.08 9.83-9.89 16.31-16.66 10.92-11.13 3/8 5.41
1/2 12.70 13 12.39-12.66 11.32-11.39 18.67-19.05 12.50-12.70 3/8 6.22
9/16 14.29 12 13.96-14.25 12.80-12.87
5/8 15.88 11 15.53-15.83 12.80-12.87 23.39-23.83 15.65-15.88 1/2 7.80
M2 2.00 0.40 1.89-1.98 1.67-1.70 3.62-3.80 1.86-2.00 1.52-1.56 1.00
M2.5 2.50 0.45 2.38-2.48 2.13-2.16 4.32-4.50 2.36-2.50 2.02-2.06 1.10
M3 3.00 0.50 2.87-2.98 2.60-2.63 5.32-5.50 2.86-3.00 2.25-2.52 1.30 T10
M4 4.00 0.70 3.84-3.98 3.45-3.49 6.78-7.00 3.82-4.00 3.02-3.08 2.00 T20
M5 5.00 0.80 4.83-4.98 4.38-4.43 8.28-8.50 4.82-5.00 4.02-4.10 2.50 T25
M6 6.00 1.00 5.82-5.97 5.25-5.30 9.78-10.00 5.70-6.00 5.02-5.14 3.00 T30
M8 8.00 1.25 7.79-7.96 7.07-7.12 12.73-13.00 7.64-8.00 6.02-6.14 4.00 T45
M10 10.00 1.50 9.77-9.96 8.91-8.97 15.73-16.00 9.64-10.00 8.03-8.18 5.00
M12 12.00 1.75 11.76-11.95 10.73-10.79 17.73-18.00 11.57-12.00 10.03-10.18 6.00
M14 14.00 2.00 13.74-13.95 12.56-12.63 20.67-21.00 13.57-14.00 12.03-12.21 7.00

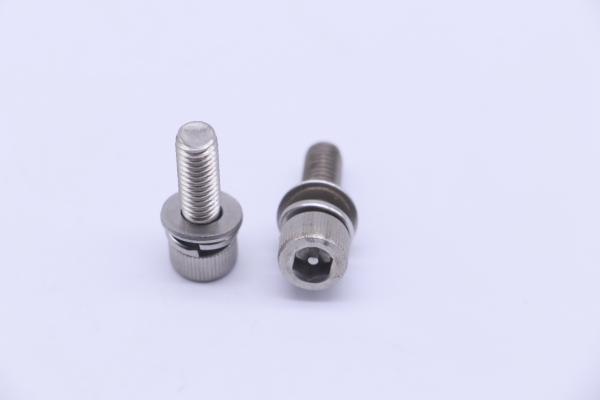

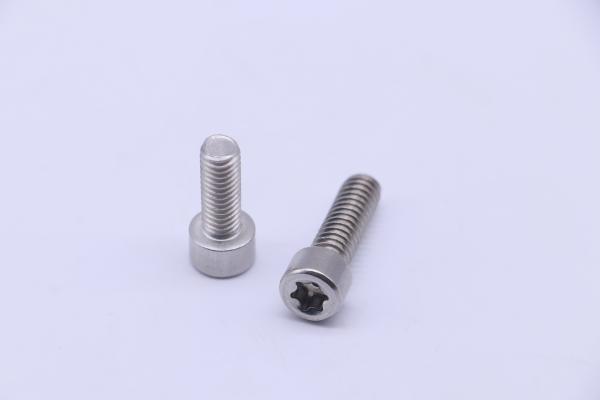

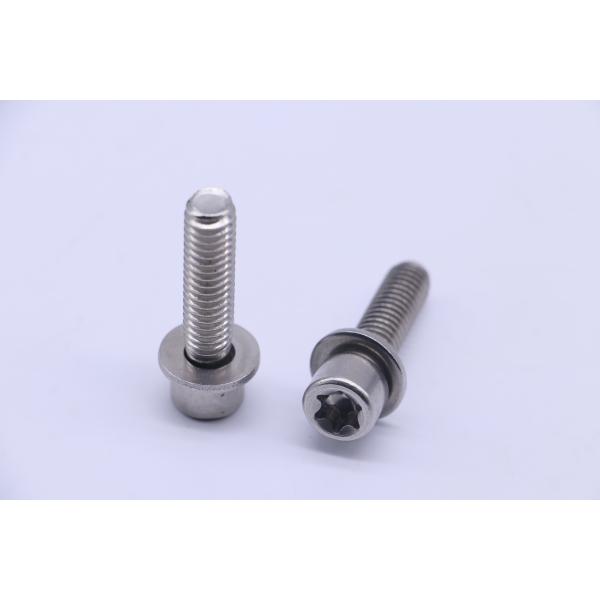

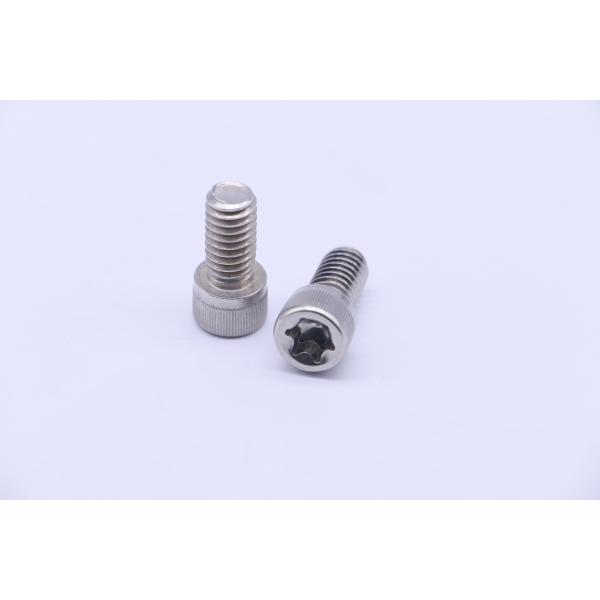

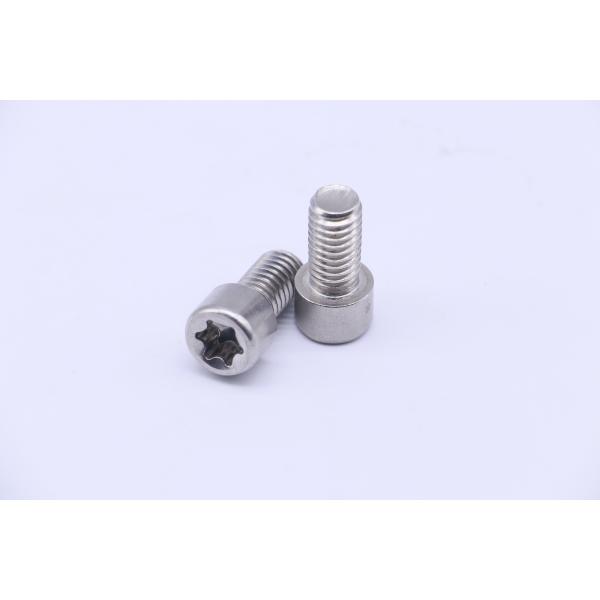

Stainless Steel Torx Machine Screw picture details display

Stainless steel plum screw, also known as stainless steel internal plum anti-theft screw, is mainly used in public places where people do not want to be dismantled at will, such as guardrails, buses, military equipment, outdoor communication equipment, etc

Unit: mm

DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4

DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4" Torx Machine Screws Stainless

DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4

DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4" Torx Machine Screws Stainless

DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4

Our stainless steel torx screws are in stock all year round

Product Name Stainless Steel 304 Cylindrical Head Torx Screws
Specifications(metric system) M5*14
M6*16
Specifications (US) 4#-40*5/8
4#-40*1/4
6#-32*1/4
8#-32*1/4
10#-24*9.4
1/4*31
1/4*22
1/4-20*19
5/16*32
5/16*5/8
Stainless steel screws of various sizes and specifications can be customized according to customer drawings

Factory environmental display

DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4

DIN912 Cylindrical Head Stainless Steel Screw SS316 1/4-20*3/4

Cold Heading Advantage


1, production process without waste, save material cost, especially precious metals and small head rod products.
2, through extrusion molding, maximum retention of material metal streamline, not easy to break.
3, through cold work hardening, the material metal composition arrangement dense, to achieve the advantages of good tensile strength, high hardness, high torsion.
Fully automated production saves a lot of labor costs.
5, can produce M1.0-M20 products, the head can achieve 40.0mm, the longest can achieve 300mm.
6, Taiwan imported equipment, high precision, multi-power equipment can produce complex shape of hardware.
7, the material is more environmentally friendly, such as 304 stainless steel is food grade material, has good environmental protection and corrosion resistance.
8, surface treatment, high finish, good adhesion, more easy to coating.

All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +86 13423026460
