Zoo Handrail Stainless Steel Aviary Mesh , 60 Degree Wire Mesh Bird Netting
Zoo Handrail Stainless Steel Aviary Mesh , 60 Degree Wire Mesh Bird Netting
Zoo Handrail Stainless Steel Aviary Mesh , 60 Degree Wire Mesh Bird Netting
Zoo Handrail Stainless Steel Aviary Mesh , 60 Degree Wire Mesh Bird Netting
Zoo Handrail Stainless Steel Aviary Mesh , 60 Degree Wire Mesh Bird Netting
Zoo Handrail Stainless Steel Aviary Mesh , 60 Degree Wire Mesh Bird Netting
Zoo Handrail Stainless Steel Aviary Mesh , 60 Degree Wire Mesh Bird Netting
Zoo Handrail Stainless Steel Aviary Mesh , 60 Degree Wire Mesh Bird Netting
Specifications
Brand Name :
Jianping
Model Number :
JP-1660
Certification :
CE , SGS
Place of Origin :
Hebei
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Wire Rope Zoo Wire Mesh , Aviary Netting
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Mesh Angle :
60 Degree
Finished :
Ultrasonic Bath , Black Oxide
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light :
Stainless Steel Rope Mesh, Aviary Netting
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Stainless Steel Wire Rope Mesh Net For Zoo Mesh Handrail Stainless Steel Aviary Mesh

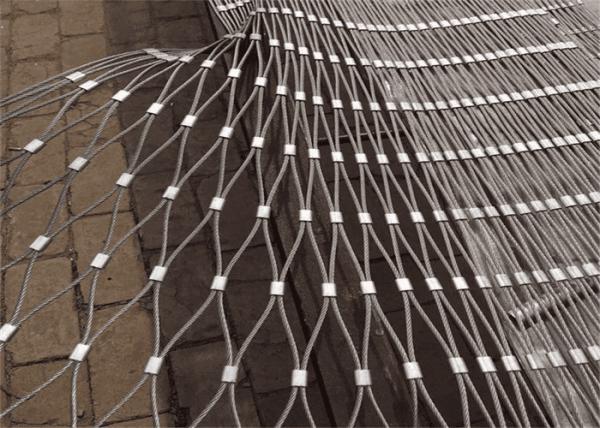

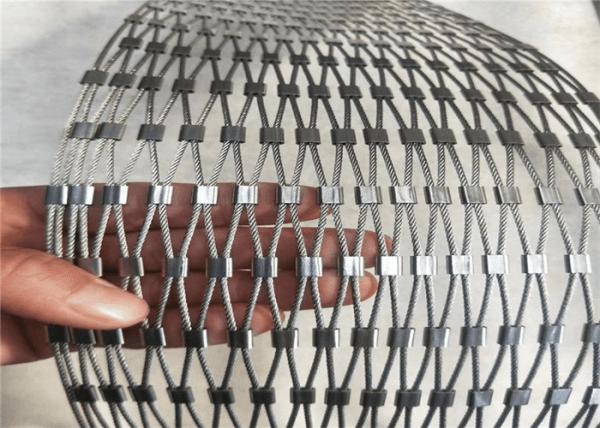

Stainless steel Aviary Mesh

Product description

Stainless Steel Cable Mesh/stainless steel aviary mesh material almost AISI 304 and 316, the materials meet the requirements of international standards. It can be used more than 30 years.
There are two types, one is woven types of steel cable mesh,the other is ferrule types of steel cable mesh.
The woven types of steel cable mesh mateiral:stainless steel 304, 304L,316,316L.The structure of the steel calbe wire have 7x7 and 7x19. The steel cable wire diameter icludes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 1" x 1", 1-1/2" x 1-1/2", 2" x 2", 3" x 3" and 4" x 4".
Rope diameter: 1.2mm to 3.2mm, and other rope diameters are also available.
Rope construction: 7 × 7 and 7 × 19 are the main used, and 1 × 7 and 1 × 19 are also supplied.

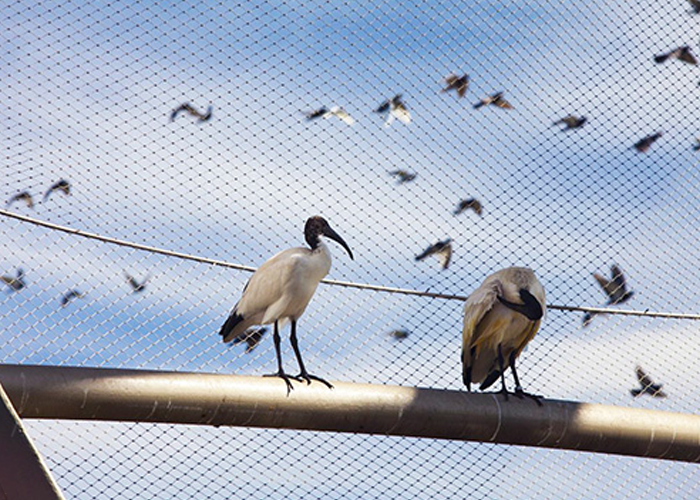

Stainless steel wore rope mesh is used for anti-hill mesh, aviary mesh,zoo fencing,farm fencing and other security mesh,with stainless steel material and feature of rust-proof ,strongess and durability.

Zoo Handrail Stainless Steel Aviary Mesh , 60 Degree Wire Mesh Bird Netting

stainless steel Aviary Mesh

Specification

Stainless Steel Wire Rope Mesh Net For Zoo Mesh
Stainless Steel Wire Rope Zoo Mesh
Code Wire Rope Construction Min. Breaking Load (KN) Wire Rope Diameter Aperture Application
Inch mm Inch mm
1 7 x 19 7.38 1/8 3.2 6" x 6" 152 x 152 large and fierce animals like tiger, lion, leopard, orangutan
2 7 X 19 7.38 1/8 3.2 5" x 5" 127 x 127
3 7 X 19 7.38 1/8 3.2 4.7" x 4.7" 120 X 120
4 7 x 19 7.38 1/8 3.2 4" x 4" 102 x 102
5 7 x 19 7.38 1/8 3.2 3.6" x 3.6" 90 x 90
6 7 x 19 7.38 1/8 3.2 3" x 3" 76 x 76
7 7 X 19 7.38 1/8 3.2 2.4" x 2.4" 60 x 60
8 7 x 19 7.38 1/8 3.2 2" x 2" 51 x 51
9 7 x 7 4.18 3/32 2.4 6" x 6" 152 x 152 large and fierce animals like tiger, lion, leopard, orangutan, monkey
10 7 x 7 4.18 3/32 2.4 5" x 5" 127 x 127
11 7 x 7 4.18 3/32 2.4 4" x 4" 102 x 102
12 7 x 7 4.18 3/32 2.4 3.6" x 3.6" 90 x 90
13 7 x 7 4.18 3/32 2.4 3" x 3" 76 x 76
14 7 x 7 4.18 3/32 2.4 2.4" x 2.4" 60 x 60
15 7 x 7 4.18 3/32 2.4 2" x 2" 51 x 51
16 7 x 7 3.17 5/64 2 3" x 3" 76 x 76 small cat animals like mokey
17 7 x 7 3.17 5/64 2 2.4" x 2.4" 60 x 60
18 7 x 7 3.17 5/64 2 2" x 2" 51 x 51
19 7 x 7 3.17 5/64 2 1.5" x 1.5" 38 x 38
20 7 x 7 2.17 1/16 1.6 4" x 4" 102 x 102 large birds
21 7 x 7 2.17 1/16 1.6 3" x 3" 76 x 76
22 7 x 7 2.17 1/16 1.6 2.4" x 2.4" 60 x 60
23 7 x 7 2.17 1/16 1.6 2" x 2" 51 x 51
24 7 x 7 2.17 1/16 1.6 1.5" x 1.5" 38 x 38 small birds
25 7 x 7 2.17 1/16 1.6 1.2" x 1.2" 30 x 30
26 7 x 7 2.17 1/16 1.6 1" x 1" 25.4 x 25.4
27 7 x 7 1.22 3/64 1.2 4" x 4" 102 x 102 large birds
28 7 x 7 1.22 3/64 1.2 3" x 3" 76 x 76
29 7 x 7 1.22 3/64 1.2 2" x 2" 51 x 51
30 7 x 7 1.22 3/64 1.2 1.5" x 1.5" 38 x 38 small birds, aviary
31 7 x 7 1.22 3/64 1.2 1.2" x 1.2" 30 x 30
32 7 x 7 1.22 3/64 1.2 1" x 1" 25.4 x 25.4

Zoo Handrail Stainless Steel Aviary Mesh , 60 Degree Wire Mesh Bird Netting

Factory Sale High Strength Stainless Steel Wire Rope Mesh Net Aviary Mesh
