7X7 X Tend Building Site Security Fencing Stainless Steel For Helideck Perimeter Safety Net
7X7 X Tend Building Site Security Fencing Stainless Steel For Helideck Perimeter Safety Net
7X7 X Tend Building Site Security Fencing Stainless Steel For Helideck Perimeter Safety Net
7X7 X Tend Building Site Security Fencing Stainless Steel For Helideck Perimeter Safety Net
Specifications
Brand Name :
Jianping
Model Number :
JP-3090K
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
8-14 days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Helideck Perimeter Safety Net,Stainless Steel Rope Mesh
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Wire Diameter :
1.0 Mm - 6.0mm
Size Of Hole :
25*25mm-300*300mm
Color :
Silver/Copper/Black/ Yellow/Blue/Green
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7X 19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Helideck Perimeter Safety Net
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Surface treatment :
Hot Dipped Galvanized/silver/black oxide finish
Packing :
waterproof paper or wooden crate
Description

X-Tend Ferruled Stainless Steel Wire Rope For Helideck Perimeter Safety Net

1.Specification of Helideck Perimeter Safety Net:

X-Tend Ferruled Stainless Steel Wire Rope For Helideck Perimeter Safety Net
Product Name
 Flexible Silver and Black Stainless Steel Wire Rope Ferrule Mesh for Building Project Stainless Steel Rope Mesh
Material SS304 SS316/316L
Color Silver,Black
Wire diameter 1.2mm,1.5mm or as your order
Hole size 30x30cm,40x70mm or as your order
Length Customers' Requirement
Sample Avaliable
Feature Simple and convenient. The shape is special and elegant.
Usage Upscale hotels, restaurants, opera houses, exhibition halls
Delivery time 7-12 days

Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L

Stainless steel helideck safety net heliport deck safety netting 1.5m width long uselife for safe protect

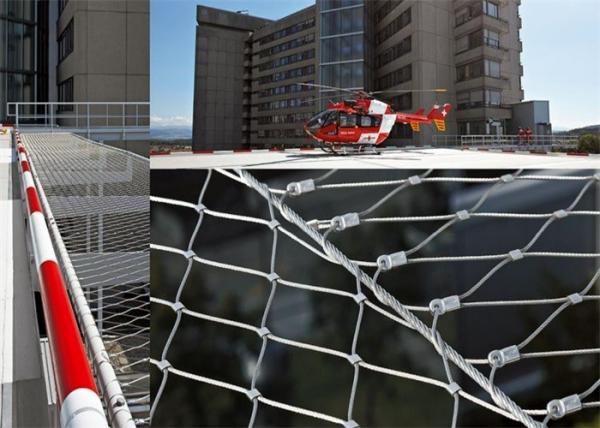

Heliport deck safety netting:


Heliport deck safety netting is a kind of high grade safety use net.It has diamond hole,strong tensile
wire rope and frame.normal use the ss316 or ss316l material to make.
Heliport deck safety netting is also called helicopter safety net,helideck safety net,heliport deck safety net.

Heliport deck safety netting Specification
Rope Construction
Rope Diameter
Aperture
Breaking Force
inch
mm
mm
kn
7 × 19
1/8
3.2
120 × 208
7.38
7 × 19
1/8
3.2
100 × 173
7.38
7 × 19
1/8
3.2
90 × 156
7.38
7 × 7
3/32
2.4
100 × 173
4.18
7 × 7
3/32
2.4
90 × 156
4.18
7 × 7
3/32
2.4
80 × 139
4.18
7 × 7
3/32
2.4
70 × 121
4.18
7 × 7
5/64
2.0
100 × 173
3.17
7 × 7
5/64
2.0
90 × 156
3.17
7 × 7
5/64
2.0
80 × 139
3.17
7 × 7
5/64
2.0
70 × 121
3.17
7 × 7
1/16
1.6
80 × 139
2.17
7 × 7
1/16
1.6
70 × 121
2.17
7 × 7
1/16
1.6
60 × 104
2.17
7 × 7
1/16
1.6
51 × 87
2.17
7 × 7
3/64
1.2
80 × 139
1.22
7 × 7
3/64
1.2
60 × 104
1.22
7 × 7
3/64
1.2
50 × 87
1.22
7 × 7
3/64
1.2
40 × 69
1.22


2.Heliport deck safety netting feature:

1. high quality material

2. light weight yet high strength

3. easy to install and long service life

4. uniform hole size,standard size

5. fast delivery time and ship

6. flexible and pliable

7. highest corrosion resistant

8. firm and durable structure

9. strong packing way

3.The application of stainless steel cable mesh


1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

7X7 X Tend Building Site Security Fencing Stainless Steel For Helideck Perimeter Safety Net

In poly bag or plastic cage ,and then in box or cartons as customer required.

4.Packing & Delivery

7X7 X Tend Building Site Security Fencing Stainless Steel For Helideck Perimeter Safety Net

1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.
