Anti Oxidation 310S Stainless Steel Plate , PVC Laser Film 8K Stainless Steel Sheet
Anti Oxidation 310S Stainless Steel Plate , PVC Laser Film 8K Stainless Steel Sheet
Anti Oxidation 310S Stainless Steel Plate , PVC Laser Film 8K Stainless Steel Sheet
Anti Oxidation 310S Stainless Steel Plate , PVC Laser Film 8K Stainless Steel Sheet
Anti Oxidation 310S Stainless Steel Plate , PVC Laser Film 8K Stainless Steel Sheet
Anti Oxidation 310S Stainless Steel Plate , PVC Laser Film 8K Stainless Steel Sheet
Specifications
Brand Name :
TISCO
Model Number :
310S
Certification :
mill certificate
Place of Origin :
Shanxi
MOQ :
1 Sheet
Price :
Negotiated Price
Payment Terms :
L/C At Sight,TT,Western Union
Supply Ability :
500Tons/Month
Delivery Time :
25-45 Days
Packaging Details :
Kraft Paper,Wooden Pallet,Wooden Box
Product Name :
Stainless Steel Plate
Surface :
NO.8 8K Mirror Finish
Material :
310S
PVC :
White, Blue,Custom-made, Laser Film
Price term :
CNF CFR FOB EX-WORK, CIF, etc.,
Edge :
Slit Edge, Mill Edge, Mill Edge/ Slitting Edge Stainless Steel, trim edge
Description

310S NO.8 8K Mirror Finish Stainless Steel Plate with PVC laser Film

Product Description

310S stainless steel plate is a 25Cr-20Ni high alloy stainless steel with excellent high-temperature oxidation resistance.

It is suitable for making various furnace components with a maximum temperature of 1200 ℃ and a continuous service temperature of 1150 ℃.

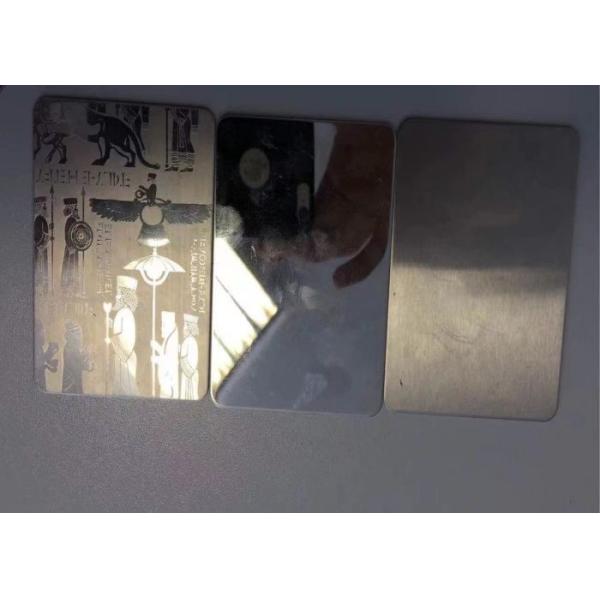

Product Diaplay

Chemicai Composition(WT%)
Grade (C) (Si) (Mn) (Cr) (N) (Ni) (P) (S)
310S ≤0.08 ≤1.5 ≤2.0 24.0~26.0 ≤0.1 19.0~22.0 ≤0.045 ≤0.030
Physical Property
yield strength(mpa) magnetic extend(%)
≥205 non ≥40

Application
furnace materials, automobile purification device materials

Anti Oxidation 310S Stainless Steel Plate , PVC Laser Film 8K Stainless Steel Sheet

Anti Oxidation 310S Stainless Steel Plate , PVC Laser Film 8K Stainless Steel Sheet

Tolerance Standard Range

310S/Cold
Thickness Large Tolerance Normal Close Tolerance No Tolerance
0.4MM 0.3-0.32 0.33-0.37 0.37-0.39 0.39 Above
0.5MM 0.4-0.42 0.43-0.47 0.47-0.49 0.49 Above
0.6MM 0.5-0.52 0.53-0.56 0.57-0.59 0.59 Above
0.7MM 0.6-0.62 0.63-0.67 0.67-0.69 0.69 Above
0.8MM 0.7-0.72 0.73-0.77 0.74-0.79 0.79 Above
0.9MM 0.8-0.82 0.83-0.87 0.87-0.89 0.89 Above
1.0MM 0.89-0.9 0.91-0.94 0.94-0.99 0.99 Above
1.2MM 1.02-1.08 1.09-1.15 1.16-1.18 1.18 Above
1.5MM 1.32-1.38 1.39-1.45 1.46-1.48 1.48 Above
2.0MM 1.72-1.79 1.8-1.86 1.87-1.9 1.9 Above
2.5MM 2.23-2.36 2.32-2.42 2.42-2.47 2.48 Above
3.0MM 2.7-2.77 2.78-2.85 2.85-2.9 2.9 Above
310S/Hot
Thickness Large Tolerance Normal Close Tolerance No Tolerance
3.0MM 2.6-2.75 2.75-2.85 2.86-2.9 2.9 Above
4.0MM 3.5-3.6 3.6-3.75 3.76-3.95 3.95 Above
5.0MM 4.5-4.6 4.6-4.75 4.75-4.95 4.95 Above
6.0MM 5.4-5.6 5.6-5.75 5.75-5.85 5.85 Above
8.0MM 7.3-7.5 7.5-7.65 7.65-7.85 7.85 Above
10.0MM 9.2-9.3 9.3-9.6 9.6-9.85 9.85 Above
12.0MM 11.1-11.2 11.2-11.6 11.6-11.85 11.85 Above
14.0MM 13.1-13.2 13.2-13.6 13.6-13.85 13.85 Above

Advantage

1.310S stainless steel is austenitic chromium nickel stainless steel with good oxidation resistance and corrosion resistance.

2.Because of the high percentage of chromium and nickel, it has much better creep strength,can work continuously at high temperature, and has good high temperature resistance.

3.Because of the high content of nickel (Ni) and chromium (CR), it has good oxidation resistance, corrosion resistance,acid and alkali resistance and high temperature resistance. High temperature resistant steel pipes are specially used for manufacturing electric furnace tubes and other occasions. After the carbon content is increased in austenitic stainless steel,the strength is improved due to its solid solution strengthening effect. The chemical composition characteristics of austenitic stainless steel are based on chromium and nickel, and molybdenum, tungsten, niobium and titanium are added.

4.Because its structure is face centered cubic structure, And thus has high strength and creep strength at high temperature.
