5754 Silver Flat Aluminium Thin Strip Anticorrosive For Stretch Ceilings
5754 Silver Flat Aluminium Thin Strip Anticorrosive For Stretch Ceilings
5754 Silver Flat Aluminium Thin Strip Anticorrosive For Stretch Ceilings
5754 Silver Flat Aluminium Thin Strip Anticorrosive For Stretch Ceilings
5754 Silver Flat Aluminium Thin Strip Anticorrosive For Stretch Ceilings
5754 Silver Flat Aluminium Thin Strip Anticorrosive For Stretch Ceilings
Specifications
Model Number :
5754
Certification :
Material Test Certificate
MOQ :
1 TON
Price :
Translation Price
Payment Terms :
L/C At Sight,, T/T, Western Union
Supply Ability :
5000Tons/Month
Delivery Time :
10-15 work days
Packaging Details :
Kraft Paper wooden pallet or wooden box
Product Name :
5754 Aluminum Strip
Material :
5754
Application :
Stretch Ceilings
Colors :
Silver
Alloy Or No :
Non-Alloy
Thickness :
0.15mm-6.0mm
Description

Customize Aluminum Extrusion Strip 5754 Aluminum Strip For Stretch Ceilings

Product Description

Aluminum Alloy Alloy State

Thickness

(mm)

 Tensile Strength (Rm/Mpa) Yield Strength (Rp0.2/Mpa) Elongation (%) Bending radius(α)

Hardness

( HBW)α
A50mm A5.65 90° 180°
≥ 　
5754 F ≥2.5~100 — — — — — — —
>100.0~150.0 180 — — — — — —

O

H111

 >0.2~0.5 190~240 80 12 — 0t 0.5t 38
>0.5~1.5 190~240 80 14 — 0.5t 0.5t 38
>1.5~3.0 190~240 80 16 — 1.0t 1.0t 38
>3.0~6.0 190~240 80 18 — 1.0t 1.0t 38
>6.0~12.5 190~240 80 18 — 2.0t — 38
>12.5~100.0 190~240 80 — 17 — — 38
H112 >6.0~12.5 190 100 12 — — — 62
>12.5~25.0 190 90 — 10 — — 58
>25.0~40.0 190 80 — 12 — — 52
>40.0~80.0 190 80 — 14 — — 52
H12 >0.2~0.5 220~270 170 4 — — — 46
>0.5~1.5 220~270 170 5 — — — 46
>1.5~3.0 220~270 170 6 — — — 46
>3.0~6.0 220~270 170 7 — — — 46
H14 >0.2~0.5 240~280 190 3 — — — 54
>0.5~1.5 240~280 190 3 — — — 60
>1.5~3.0 240~280 190 4 — — — 60
>3.0~6.0 240~280 190 4 — — — 60

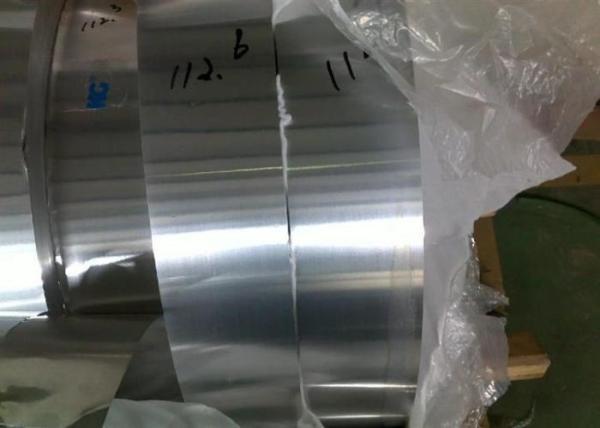

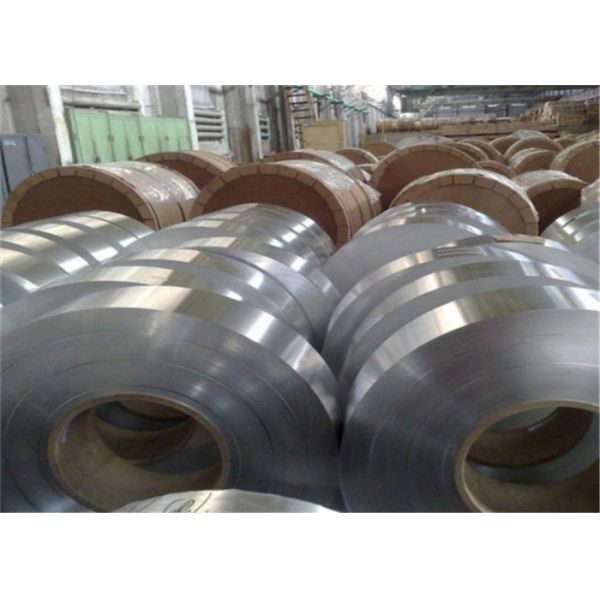

Product Display

The 5754 aluminum strip is a non-heat treated Al-Mg alloy and is also an rust-proof aluminum strip. As a wrought alloy, it can be formed by rolling, extrusion, and forging. 5754 aluminum properties show excellent corrosion resistance, high strength, good weldability, and good machining formability. Most notably, anodizing and other surface treatments of 5754 aluminum alloy have obvious effects, making it widely used in automobile/ship components, tank, billboard, building decoration and other aspects of the strength, welding, surface treatment have all high requirements.

5754 Silver Flat Aluminium Thin Strip Anticorrosive For Stretch Ceilings5754 Silver Flat Aluminium Thin Strip Anticorrosive For Stretch Ceilings

Application

5754 (Al-Mg elements) aluminum strip has the characteristics of medium strength, good corrosion resistance, weldability, excellent processing performance and easy processing and forming. It is a typical alloy in Al-Mg series alloys. In foreign countries, 5754 aluminum alloy strips with different heat treatment states are the main materials used in automobile manufacturing (car doors, molds, seals) and can manufacturing.

5754 aluminum strip is a high strength non-heat treatable alloy with excellent corrosion resistance, good weldability and machinability. It is particularly good for seawater applications, such as tread plates, vehicle bodies, fishing equipment, ship exterior, and parts.
