DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection
DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection
DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection
DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection
DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection
DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection
DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection
DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection
Specifications
Brand Name :
TOBO
Model Number :
Stainless Steel Split Pins
Certification :
SGS BV ROHS etc
Place of Origin :
China
MOQ :
20Kg
Price :
800-1600USD/ton
Payment Terms :
D/A, T/T, Western Union, MoneyGram
Supply Ability :
Max 150 tons/month
Delivery Time :
According to the order
Packaging Details :
Neutral packaging or customized packaging
Productname :
Stainless Steel Split Pins
Type Of Drive :
Phillips pozi, slot ,torx ，square,etc
Diameter :
1/16
Tensilestrength :
Minimum 500 MPa
Finish :
Polished
Type :
Split Pin
Color :
Silver
Type Of Head :
Flat ,pan,oval Or Round Head
Size :
1mm to 20 mm
Lengthrange :
10mm to 100mm
Pin Length :
0.5
Length :
1/2
Temperatureresistance :
-50°C to 300°C
Pin Shape :
Cylindrical
Description
DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection

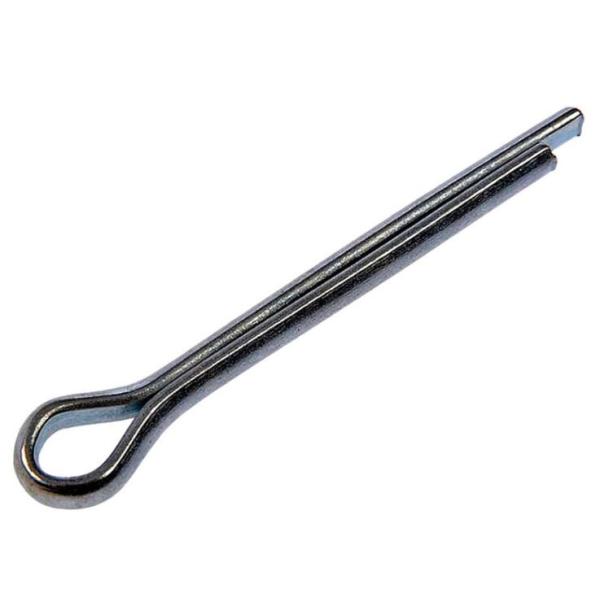

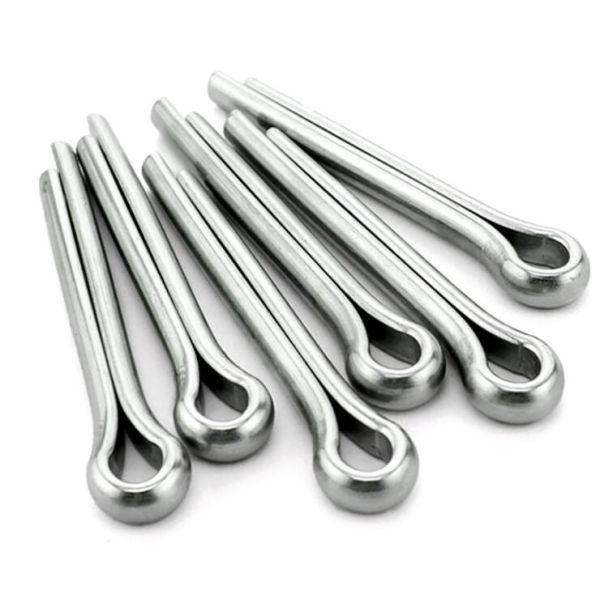

Our DIN94 spring split pins, also known as clevis cotter pins conforming to ISO 1234 standard, are made of high-quality spring steel with nickel plated surface treatment. These fasteners are designed for reliable locking and anti-loosening applications in machinery, automotive, equipment assembly, and hardware connection.
Featuring excellent elasticity and toughness, the split pins can be easily installed and removed, providing stable and secure locking for shafts, pins, and bolts. The nickel plating effectively improves corrosion resistance, prevents rust, and ensures a long service life even in humid and outdoor environments. Strict dimensional control ensures good fit and interchangeability with corresponding holes and components.
Manufactured in full compliance with DIN94 and ISO 1234 standards, each cotter pin undergoes strict inspection for material performance, dimensional accuracy, and surface finish. Widely used in automotive chassis, mechanical transmission, agricultural machinery, furniture hardware, and engineering equipment, these nickel-plated spring split pins offer simple structure, convenient operation, and cost-effective locking solutions for global industrial customers.

Products name
DIN94 DIN EN ISO 1234 - 1998 Stainless Steel Split Pins Clevis Cotter Pin
Material
Carbon steel c1022a, 10B21,Stainless material, etc
Size

1mm to 20 mm
Surface treatment
Black/grey phosphate, zinc plated, nickel-plated, Rupert
Point
Plain
Thread

None
DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection

Weight in kgs. per 1,000 pcs. unless otherwise specified. All weights are approximations.

Diameter M1 M1.6 M2 M2.5 M3.2 M4 M5 M6.3 M8 M10 M13
Length
6 0.03
8 0.04 0.10
10 0.05 0.12 0.25
12 0.06 0.14 0.28 0.51
14 0.07 0.16 0.31 0.57
16 0.08 0.18 0.34 0.63
18 0.10 0.20 0.37 0.69 1.00
20 0.22 0.40 0.75 1.09 2.16 3.49
22 0.24 0.43 0.81 1.18 2.28 3.74
25 0.27 0.47 0.90 1.31 2.52 4.00
28 0.30 0.51 0.98 1.45 2.76 4.49 8.04
32 0.34 0.56 1.10 1.64 3.07 5.00 8.90
36 0.61 1.22 1.80 3.39 5.49 9.76 15.9
40 0.66 1.34 2.00 3.71 6.00 10.60 17.2
45 1.49 2.17 4.11 6.61 11.70 18.9
50 1.64 2.43 4.51 7.24 12.80 20.6
56 2.70 5.00 8.00 14.00 22.6 38.0 69.5
63 3.02 5.55 8.67 15.60 25.0 41.8 76.0
71 3.38 6.20 9.86 17.30 27.7 46.2 83.4
80 3.78 6.91 11.00 19.20 30.7 51.2 91.8
90 7.71 12.20 21.30 34.1 56.7 101.0
100 8.51 13.50 23.50 37.5 62.2 111.0
112 9.46 15.00 26.10 41.5 66.0 122.0
125 10.50 16.60 28.90 45.9 75.9 134.0
140 32.10 51.0 84.2 148.0

DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection

DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection

All information is strictly informative


Package & Shipping
DIN94 Nickel Spring Split Pins ISO1234 Clevis Cotter Pins Fasteners Hardware Connection
Package details:
1) Sample order, 20/25kg per carton with our logo or neutral package;
2) For Large orders, we can custom packaging;
3) Normal Packing: 1000/500/250pcs per small box. then into cartons and pallet;
4) According to customers' requirements.
FAQ
1.How do you let me trust you?

We are a Golden supplier in Alibaba who do business for more than 5 years. You can make an order by Alibaba to us directly.

2.How about your price?

High-quality products with a reasonable price suitable for your market.

3.How do you control your quality?

We request a QC inspection for each batch of goods. And we can provide you inspection report and mill certificate if you want..

4.Could you provide free samples?

For new customers, We can provide free samples for standard fasteners. But the clients will pay the express charges. For regular customers, We will send you free samples and pay express charges by ourselves.

5.How about your delivery time?

Generally speaking, All the goods have stock with little quantity, we can delivery them with one week. If the quantity is 1-2container, we can give you with 30-45days.

6.What is your packing?

Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallet is about 900-960kg, We also can make the customer's logo on the cartons. Or we customized cartons according to customers' requirement, If you need small box packing, we can do according to your requirement.

7.What is your payment term?

We can accept T/T,LC for general order. For new customer, we request 20%-50% T/T in advance, and balance payment should against B/L copy. For regular customer, we can provide delay payment after B/L date about 30-90 days.
