DIN608 Flat Countersunk Square Neck Carriage Bolt
DIN608 Flat Countersunk Square Neck Carriage Bolt
Specifications
Brand Name :
TOBO
Model Number :
Bolts
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
100000 Piece Per Month
Delivery Time :
25 Working days
Packaging Details :
Neutral packaging or customized packaging
Material :
Carbon steel, Stainless steel
Standard :
DIN, DIN608
Color :
Black,White,Accoeding Client Requirement,etc,Blue
Head type :
Flat head,Hexagon head,Pan head
Surface treatment :
plain, zinc plated, hot dip galvanized
Size :
Custom Size,
Type :
stainless steel flange nut
Application :
Heavy Industry
Packing :
catron box + kraft box
Description

DIN608 Stock Flat Countersunk square neck carriage Bolt

Products Specification
Quick Details
Finish:
HDG, H.D.G
Material:
Steel, Carbon Steel
Place of Origin:
Shanghai, China
Brand Name:
TOBO
Model Number:
DIN608
Standard:
DIN, DIN608
Name:
DIN608 Stock Flat Countersunk square neck carriage Bolt
Size:
M10
Class:
8.8
Thread:
UNC, UNF
Packing:
Carton+pallet
Keyword:
carriage bolt
Certificate:
ISO9001:2008

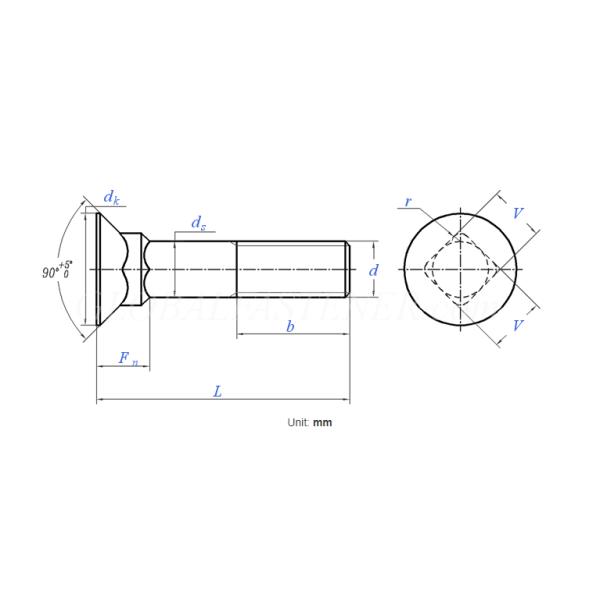

DIN608 Flat Countersunk Square Neck Carriage Bolt

Screw Thread
d
M10 M12
P Pitch
b
dk max
min
ds max
min
Fn max
min
r max
V max
min
1.5 1.75
26 30
19.65 24.65
18.35 23.35
10 12
9.42 11.3
8.45 11.05
7.55 9.95
1.5 1.8
10.58 12.7
9.42 11.3

Packing & Shipping
Package details:
1) Sample order, 20/25kg per carton with our logo or neutral package;
2) For Large orders, we can custom packaging;
3) Normal Packing: 1000/500/250pcs per small box. then into cartons and pallet;
4) According to customers' requirements.
DIN608 Flat Countersunk Square Neck Carriage Bolt
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
