Stainless Steel Bolts ANSI/ASME B 18.5 Round head bolts A307, SAE J429, F468, F593
Because the bolt is also a kind of railway accessories, railway accessories is a component of the railway line, the track referred to here includes rail, sleeper, connecting parts, track bed, anti-climbing equipment, rail support and turnout, etc.
Product Description

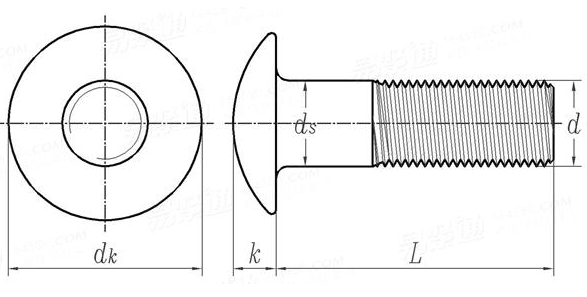

Thread specification
d | |
| d | | PP | | ds | Max | | Min | | dk | Max | | Min | | k | Max | | Min | | | 0.1900 | 0.2500 | 0.3125 | 0.3750 | 0.4375 | 0.5000 | 0.6250 | 0.7500 | 0.8750 | 1.0000 | | 24 | 20 | 18 | 16 | 14 | 13 | 11 | 10 | 9 | 8 | | 0.199 | 0.260 | 0.324 | 0.388 | 0.452 | 0.515 | 0.642 | 0.768 | 0.895 | 1.022 | | 0.182 | 0.237 | 0.298 | 0.360 | 0.421 | 0.483 | 0.605 | 0.729 | 0.852 | 0.976 | | 0.469 | 0.594 | 0.719 | 0.844 | 0.969 | 1.094 | 1.344 | 1.594 | 1.844 | 2.094 | | 0.438 | 0.563 | 0.688 | 0.782 | 0.907 | 1.032 | 1.219 | 1.469 | 1.719 | 1.969 | | 0.114 | 0.145 | 0.176 | 0.208 | 0.239 | 0.270 | 0.344 | 0.406 | 0.469 | 0.531 | | 0.094 | 0.125 | 0.156 | 0.188 | 0.219 | 0.250 | 0.313 | 0.375 | 0.438 | 0.500 | |
| Product Name | stainless steel bolt |
| Size | M1-M46 |
| Grade | 4.6,4.8,5.6,6.8,8.8,9.8,10.9,etc |
| Available Material | carbon steel, stainless steel,alloy steel,etc |
| Surface treatment | Nature color,Black oxide,Phosphate,Zinc plated,Dacroment,etc |
| Standard | ISO,BS,ANSI, GB,DIN,JIS,Nonstandard |
| Quality control | ISO standard,100% Whole range inspection through the production |
| Certificate | ISO9001:2008,ISO14001:2004 |
| Advantages | OEM / ODM / customized service provided |

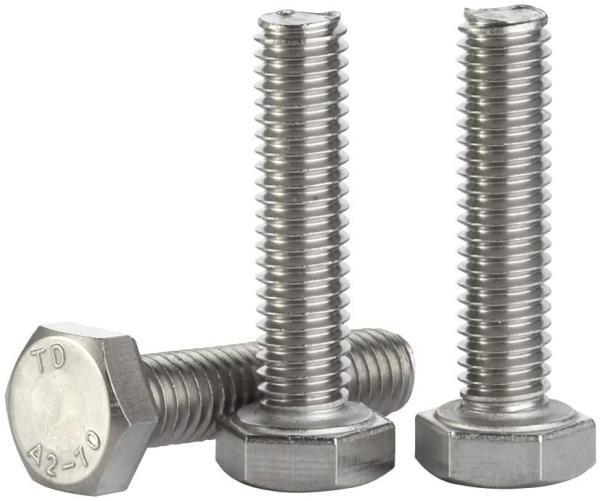

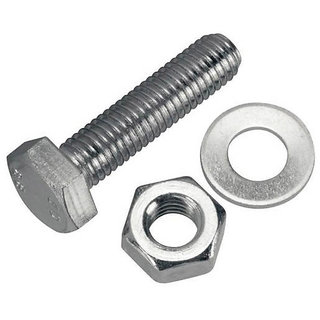

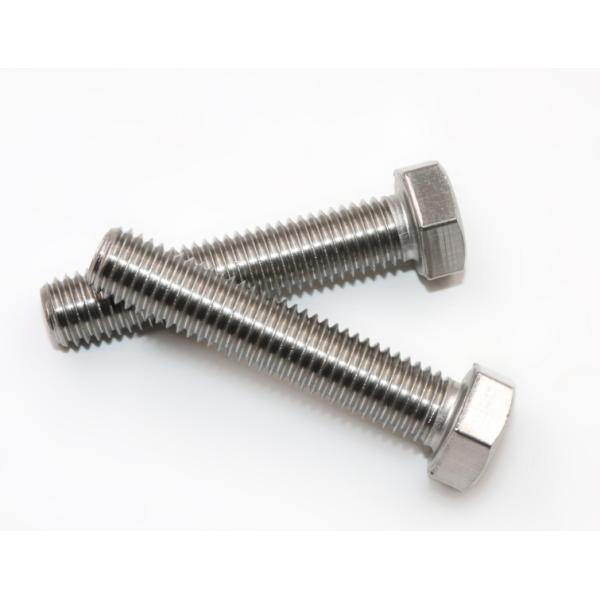

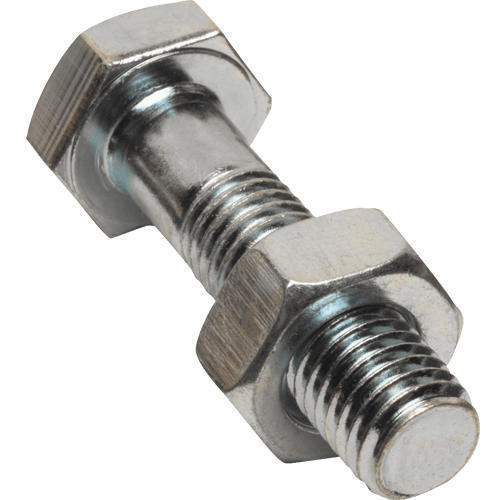

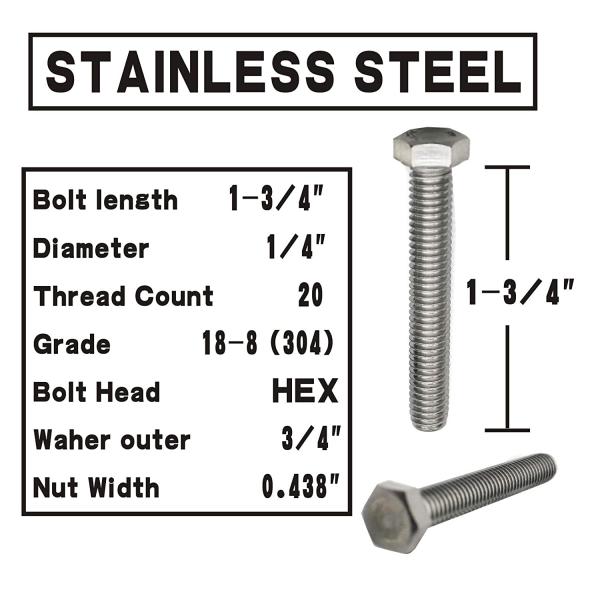

Products Show
Packing Details
FAQ
Q: Are you trading company or manufacturer ?
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
