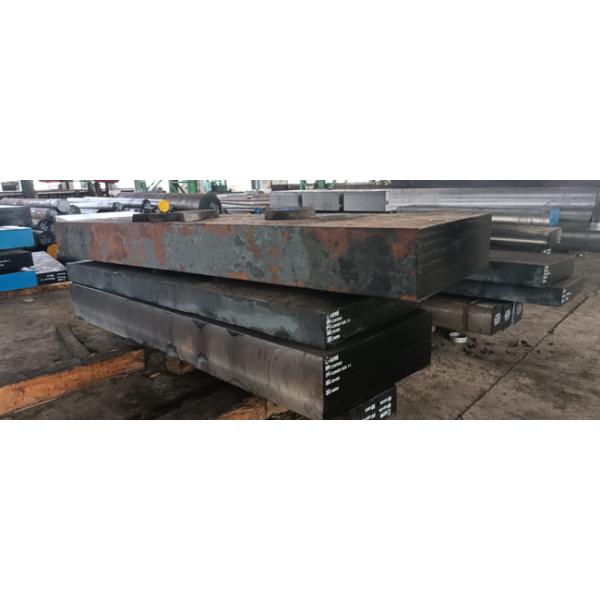

Nimonic 80A UNS N07080 Alloy Steel Plates NiCr20TiAl W-Nr 2.4952 Forings
Nimonic 80A UNS N07080 Alloy Steel Plates NiCr20TiAl W-Nr 2.4952 Forings
Nimonic 80A UNS N07080 Alloy Steel Plates NiCr20TiAl W-Nr 2.4952 Forings
Nimonic 80A UNS N07080 Alloy Steel Plates NiCr20TiAl W-Nr 2.4952 Forings
Nimonic 80A UNS N07080 Alloy Steel Plates NiCr20TiAl W-Nr 2.4952 Forings
Nimonic 80A UNS N07080 Alloy Steel Plates NiCr20TiAl W-Nr 2.4952 Forings
Specifications
Brand Name :
PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL
Model Number :
NiCr20TiAl, W-Nr 2.4952, Nimonic 80A, UNS N07080, NCF80, N80A, Alloy 80A, NC20TA
Certification :
SGS,TUV,BV,ISO,MTC
Place of Origin :
China
MOQ :
500kg
Price :
Negotiations
Payment Terms :
T/T
Supply Ability :
50000KGS/Month
Delivery Time :
Ex-stock for delivery: 3-7 days Production lead time: 30-60 days
Packaging Details :
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Characteristic :
High strength, Corrosion and Heat- Resistant
Heat treatment condition :
+AT, +P, etc
Processing methods :
Ground, Peeled, etc
Available Shapes :
Round bar, Flat bar, Length, Heavy, middle plate via hot rolled, etc
Surface :
Rrough Turned, peeled + polishing, etc.
Application :
Gas Turbine, Transmission
Material Category :
Nickel-based superalloy
Description

Nimonic 80A UNS N07080 Alloy Steel Plates NiCr20TiAl W-Nr 2.4952 Forings

Describe

Alloy 80A/204952 is a nickel-chromium alloy containing aluminum and titanium

Size Range

Round bar / Wire rod (Diameter) 5.0mm to 800mm
Square bar / Flat bar 3.0mm to 800mm
Forging piece Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled T3 - 200mm X W10 - 1500mm X L1000-12000mm
Sheet steel via cold rolled: T5 - 4mm X W6 - 1000mm X L1000 - 1000mm
Steel strip via cold rolled: T3 - 5.0mm X W5 - 190mm X L (or in coil form)
Length Fixed length or random length or based on the customer's special requirement.


Chemical Composition and standard

Grade

NiCr20TiAl/2.4952

 Nimonic 80A/N07080 NiCr20TiAl/NC20TA
Standard DIN EN 10269-2014

ASTM B 637-2018

NF EN 10090(1998)

BS EN 10090(1998)

NF A35-579(1998)
Chemical Composition (weight%)

C(％): 0.04~0.10

Si(％): ≤1.0

Mn(％): ≤1.0
P(％)≤: 0.020

S(％)≤: 0.015
Cr(％): 18.0~21.0

Ni(％): ≥65.0
Mo(％): --

Al(％): 1.0~1.80

Ti(％): 1.80~2.70

Fe(％): ≤3.0

Co(％): ≤2.00

Cu(％): ≤0.20

B(％): ≤0.008

C(％): ≤0.10

Si(％): ≤1.0

Mn(％): ≤1.0
P(％)≤: 0.045

S(％)≤: 0.015
Cr(％): 18.0~21.0

Ni(％): remainder
Mo(％): --

Al(％): 1.0~1.80

Ti(％): 1.80~2.70

Fe(％): ≤3.0

Co(％): ≤2.00

Cu(％): ≤0.20

B(％): ≤0.008

C(％): 0.04~0.10

Si(％): ≤1.0

Mn(％): ≤1.0
P(％)≤: 0.020

S(％)≤: 0.015
Cr(％): 18.0~21.0

Ni(％): ≥65.0
Mo(％): --

Al(％): 1.0~1.80

Ti(％): 1.80~2.70

Fe(％): ≤3.0

Co(％): ≤2.00

Cu(％): ≤0.20

B(％): ≤0.008
Grade NFC80A N80A --
Standard

JIS G 4901(1999)

KS D3532(2002)

 -- --
Chemical Composition (weight%)

C(％): 0.04~0.10

Si(％): ≤1.0

Mn(％): ≤1.0
P(％)≤: 0.030

S(％)≤: 0.015
Cr(％): 18.0~21.0

Ni(％): remainder
Mo(％): --

Al(％): 1.0~1.80

Ti(％): 1.80~2.70

Fe(％): ≤3.0

Co(％): ≤2.00

Cu(％): ≤0.20

B(％): --

C(％): 0.04~0.10

Si(％): ≤0.80

Mn(％): ≤0.40
P(％)≤: --

S(％)≤: 0.015
Cr(％): 18.0~21.0

Ni(％): remainder
Mo(％): --

Al(％): 1.0~1.80

Ti(％): 1.80~2.70

Fe(％): ≤1.5

Co(％): ≤2.00

Cu(％): ≤0.20

B(％): ≤0.008

--

Nimonic 80A UNS N07080 Alloy Steel Plates NiCr20TiAl W-Nr 2.4952 Forings

Mechanical Properties

C22E/1.1151 Structural Steel Mechanical Properties

Tensile strength,Rm/MPa: 1000~1300
Yield strength,Rp/MPa: ≥600
Elongation/%: ≥12
Reduction of area, ψ/%: ≥12
Impact, KV /J: ≥20
Hardness/HB:

--
--
