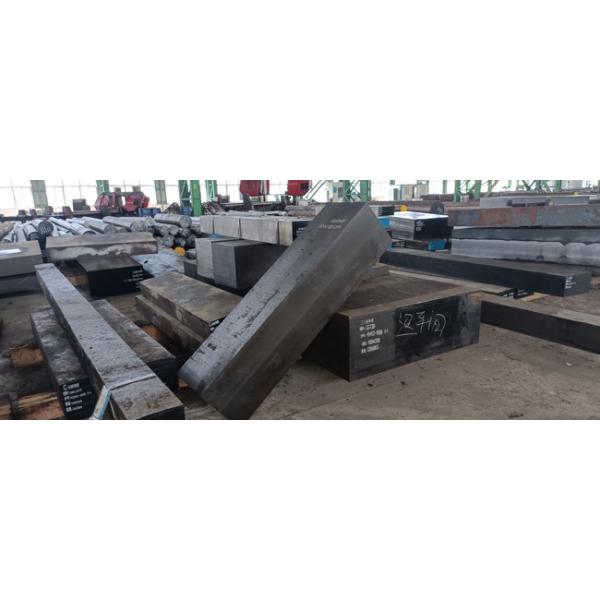

32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar
32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar
32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar
32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar
32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar
32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar
Specifications
Brand Name :
PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL
Model Number :
32CrMoV12-10, W-Nr 1.7765
Certification :
SGS,TUV,BV,ISO,MTC
Place of Origin :
China
MOQ :
1000kg
Price :
Negotiations
Payment Terms :
T/T
Supply Ability :
50000KGS/Month
Delivery Time :
Ex-stock for delivery: 3-7 days Production lead time: 30-60 days
Packaging Details :
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Characteristic :
--
Heat treatment condition :
+N, +P, etc
Processing methods :
Hot Working, Machined, etc
Available Shapes :
Bars, Wire, Flat Bar
Surface :
Grinding, Centreless Ground, etc.
Application :
Aviation, Aerospace, Navigation, Nuclear energy, etc
Material Category :
High carbon alloy tool steel
Description

32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar

Describe

32CrMoV12-10 steel is a high-quality cold work tool steel, which belongs to high-quality high-carbon alloy tool steel. Oil quenched and tempered to 300 HB. 32CrMoV12-10 steel annealed delivery hardness is less than 250HB.
Size Range

Round bar / Wire rod (Diameter) 5.0 mm to 1000 mm
Square bar / Flat bar 5.0 mm to 1000 mm
Forging piece Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled T5 - 200 mm X W10 - 1000 mm X L1000-12000 mm
Sheet steel via cold rolled: T5 - 4 mm X W6 - 1000 mm X L1000 - 1000 mm
Steel strip via cold rolled: T5 - 5.0 mm X W5 - 200 mm X L (or in coil form)
Length Fixed length or random length or based on the customer's special requirement.


Chemical Composition and standard

Grade

32CrMoV12-10/1.7765
Standard WL 1.7765-2008
Chemical Composition (weight%)


C(％): 0.30~0.35
Si(％): ≤0.35
Mn(％): ≤0.60
P(％)≤: 0.025
S(％)≤: 0.010
Cr(％): 2.80~3.20
Ni(％): --
Mo(％): 0.80~1.20
V(%): 0.25~0.35


32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar
Mechanical Properties


32CrMoV12-10 / 1.7765 Alloy Flat Bar Mechanical Properties

Tensile strength, Rm/MPa: ≥1080
Yield strength, Rp/MPa: ≥740
Elongation/%: ≥10
Reduction of area, ψ/%: --
Impact, KV /J: --
Hardness/HBW:

Quenched and Tempered 265~320
Annealed ≤265

Contact us

If you are interested in our products or have any questions, please contact our team of engineers at
sales@ss-bars.com

32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar





32CrMoV12-10 W-Nr 1.7765 Alloy Flat Bar
