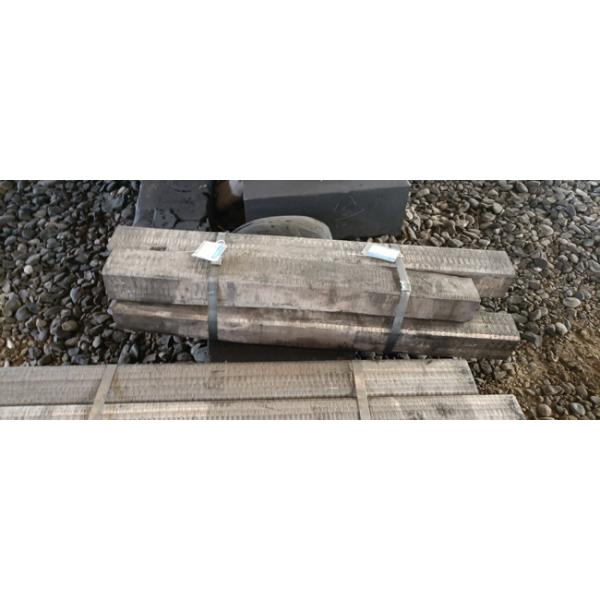

XM-19 Stainless Steel UNS S10120 Flate Bar
XM-19 Stainless Steel UNS S10120 Flate Bar
XM-19 Stainless Steel UNS S10120 Flate Bar
XM-19 Stainless Steel UNS S10120 Flate Bar
XM-19 Stainless Steel UNS S10120 Flate Bar
XM-19 Stainless Steel UNS S10120 Flate Bar
Specifications
Brand Name :
PANGANGGROUP,TISCO,ANSTEEL,BAOSTEEL
Model Number :
UNS S10120, XM-19
Certification :
SGS, TUV, BV, ISO, MTC
Place of Origin :
China
MOQ :
800kg
Price :
Negotiations
Payment Terms :
T/T
Supply Ability :
50000KGS/Month
Delivery Time :
Ex-stock for delivery: 3-7 days Production lead time: 30-60 days
Packaging Details :
Wooden Pallet BOX;Standard Seaworthy Package;based on the customer's special requirement
Product Name :
XM-19 Stainless Steel UNS S10120 Flate Bar
Characteristic :
Corrosion resistant
Heat treatment condition :
+N, +QT, etc
Processing methods :
Ground, Peeled, etc
Available Shapes :
Steel plate, Sheet, Coil, Square bar
Surface :
Grinded, Centreless Ground, Peeled, etc
Description

XM-19 Stainless Steel UNS S10120 Flate Bar

Product Information

UNS S10120 is a high-strength, corrosion-resistant austenitic stainless steel, also known as XM-19 or NITRONIC 50. It contains a high proportion of nitrogen, chromium, and molybdenum, giving it excellent corrosion resistance, wear resistance, and strength. UNS S10120 maintains excellent mechanical properties and corrosion resistance in both high and low temperature environments.
UNS S10120 stainless steel has good machinability and weldability, and can be processed into parts of different shapes through various processing methods. In addition, it also has excellent magnetic and magnetic conductivity properties, making it widely used in the manufacturing of magnetic components and sensors.


Size Range

Round bar / Wire rod (Diameter):1.0 mm to 1500 mm
Square bar / Flat bar: 1.0 mm to 500 mm
Forging piece: Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T7.0 - 1000 mm X W8 - 1000 mm X L100-1000 mm
Sheet steel via cold rolled: T5.0 - 10 mm X W1 - 1000 mm X L100 - 800 mm
Steel strip via cold rolled: T5.0 - 10 mm X W1.0 - 1000 mm X L (or in coil form)
Length: Fixed length or random length or based on the customer's special requirement.


Chemical Composition and standard

UNS S10120

Mechanical Properties
ASTM A564/A564M-2019

C(％): ≤0.02
Si(％): ≤0.25
Mn(％): ≤0.25
P(％)≤: 0.015
S(％)≤: 0.010

Cr(％): 11.0~12.5
Ni(％): 9.00~10.5
Mo(%): 1.75~2.25
Al(%): 0.80~1.10

Ti(%): 0.20~0.50

N(%): ≤0.01

H950

Tensile strength,Rm/MPa: ≥ 1400
Yield strength,Rp/MPa: ≥ 1300

Elongation, A/%: ≥10

Reduction of area, ψ/%: ≥50

Impact, KV /J: --

Hardness HBW: ≤401

XM-19 Stainless Steel UNS S10120 Flate Bar

Applications

UNS S10120 is widely used in fields such as aerospace, ocean engineering, and chemical engineering. It can also be used to manufacture magnetic components and sensors.
