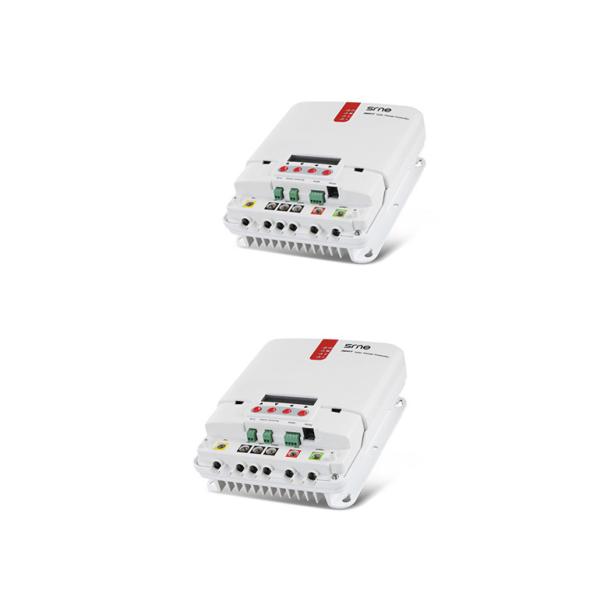

Stable Solar 48v Mppt Charge Controller LCD Display Panel Charger Regulator
Stable Solar 48v Mppt Charge Controller LCD Display Panel Charger Regulator
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SRNE
Model Number :
SR-ML4830
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
By Carton Packaging Size:470*305*280 mm Gross Weight: 13KG
MOQ :
1
Price :
Negotiable
Application :
Solar System Controller
Maximum Current :
30A
Rated Voltage :
12/24/36/48V auto
Max Solar Energy Input Voltage :
<150V
Max Power Point Voltage Scope :
Battery Voltage +2V ~ 120V
Rated Load Current :
20A
Max capacitive load capacity :
10000uF
PV System Max Input Power :
400W/12V; 800W/24V;1200W/36V;1600W/48V
MPPT Tracking Efficiency :
>99%
Max Wiring Size :
25 mm2
Description

Stable Solar 48v Mppt Charge Controller LCD Display Panel Charger Regulator

30A MPPT Off Grid Solar Charge Controller

Features

* MPPT tracking efficiency can be as high as 99.9%.

* Advanced digital power technology, with circuit energy conversion efficiency as high as 98%.

* Supporting charging procedures of gel batteries, sealed batteries, open batteries, lithium batteries and other types of batteries.

* Supporting the start of capacitive load instantaneous large current.

* Supporting automatic identification of battery voltage.

* LED indicator of malfunction, buzzer alarm, and liquid crystal display of abnormal information.

* Supporting historical data storage for up to 5 years.

* LCD screen display function.

* Supporting standard Modbus protocol that meets communication needs on different occasions.

* Built-in mechanism of over-temperature protection.

* External battery voltage sampling function.

* Temperature compensation functions.

* TVS lightning protection

Note 1:Only the ML-LI model supports lithium battery charging and discharging function.

Specification

Stable Solar 48v Mppt Charge Controller LCD Display Panel Charger Regulator

Parameter Name

Parameter Value

Model

ML2440/ML2440-LI

ML4830/ML4830-LI

System Voltage

12V/24VAuto

12V/24V/36V/48V Auto

No-Load Loss

0.7 W~1.2W

Battery Voltage

9~35

9~70

Max Solar Energy Input Voltage

<150V

Max Power Point Voltage Scope

Battery Voltage +2V ~ 120V

Rated Charging Current

40A

30A

Rated Load Current

20A

20A

Max capacitive load capacity

10000uF

PV System Max Input Power

520W/12V

1040W/24V

400W/12V

800W/24V

1200W/36V

1600W/48V

Conversion Efficiency

≤98%

MPPT Tracking Efficiency

>99%

Temperature compensation coefficient

-3mv/℃/2V(Default)

Working Temperature

-35℃ ~ +45℃

Protection Level

IP32

Weight

2.3kg

Max Wiring Size

25 mm2

Communication Mode

RS485, RS232

Altitude

≤ 3000m

Product Size

266*182*81mm

Comparison Table of Parameters for Each Type of Battery

Setting Voltage

Battery Type

Sealed Lead-Acid Battery

Gelled Lead-Acid Battery

Open Lead-Acid Battery

User (User-Defined)

Overvoltage Disconnect Voltage

16.0V

16.0V

16.0V

9~17V

Equalizing Voltage

14.6V

——

14.8V

9~17V

Boost Voltage

14.4V

14.2V

14.6V

9~17V

Floating Voltage

13.8V

13.8V

13.8V

9~17V

Boost Restoring Voltage

13.2V

13.2V

13.2V

9~17V

Low Voltage Disconnect Restoring Voltage

12.6V

12.6V

12.6V

9~17V

Under-Voltage Alarming Restoring Voltage

12.2V

12.2V

12.2V

9~17V

Under-Voltage Alarming Voltage

12.0V

12.0V

12.0V

9~17V

Low Voltage Disconnect Voltage

11.1V

11.1V

11.1V

9~17V

Discharging Limit Voltage

10.6V

10.6V

10.6V

9~17V

Over-Discharge Delay Time

5s

5s

5s

1~30s

Equalizing Duration Time

120 minutes

——

120 minutes

0~600 minutes

Equalizing Charging Interval

30 days

0 day

30 days

0~250D(00 refers to close

equalizing charging function))

Boost Duration Time

120 minutes

120 minutes

120 minutes

10~600 minutes

Stable Solar 48v Mppt Charge Controller LCD Display Panel Charger RegulatorStable Solar 48v Mppt Charge Controller LCD Display Panel Charger Regulator
