Instant Vision System IVS-202 Series

Product Characteristic:

Benchtop Instant Measurement System

● Table structure, compact size, easy to handle.

● One-Button Measurement,can also be matched with IO signal to achieve automatic measurement.

● The report can be uploaded automatically into data management system.

High Precision Measurement Under Surface Light

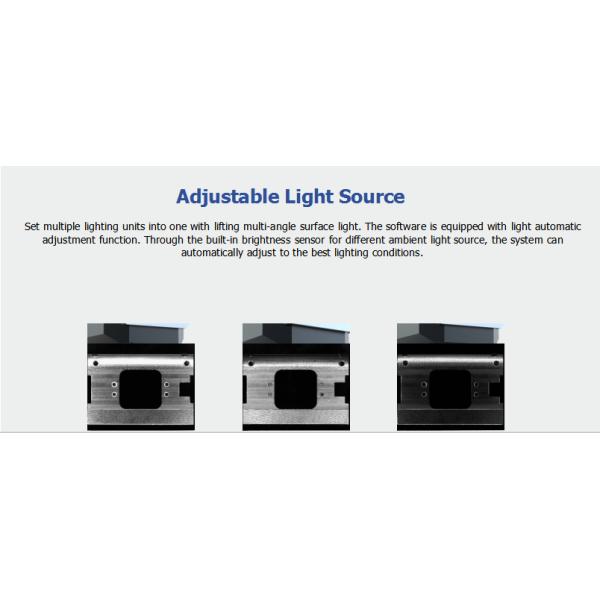

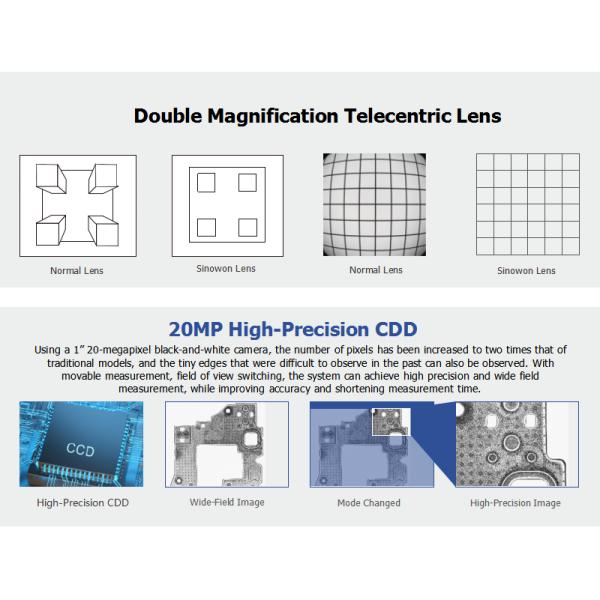

● Equipped with Double Magnification Telecentric Lens and two 20MP camera, auto multi-angle surface light and optional coaxial surface light.
● With the independent powerful AI edge calculation algorithm, it can easily realize precise edge searching on the surface and filter invalid areas for boundary clutter.
● The measurement repeatability of surface light can also reach the similar level as that of bottom light.

Fast Measurement And Easy Operation
● Can measure 100 dimensions in one second, greatly reducing the measurement time.
● The operation interface of the software is simple and easy to be understood, and the measurement program and parameter setting can be easily written.
● With automatic focusing, automatic positioning and automatic measurement function, anyone operation can obtain stable measurement results.

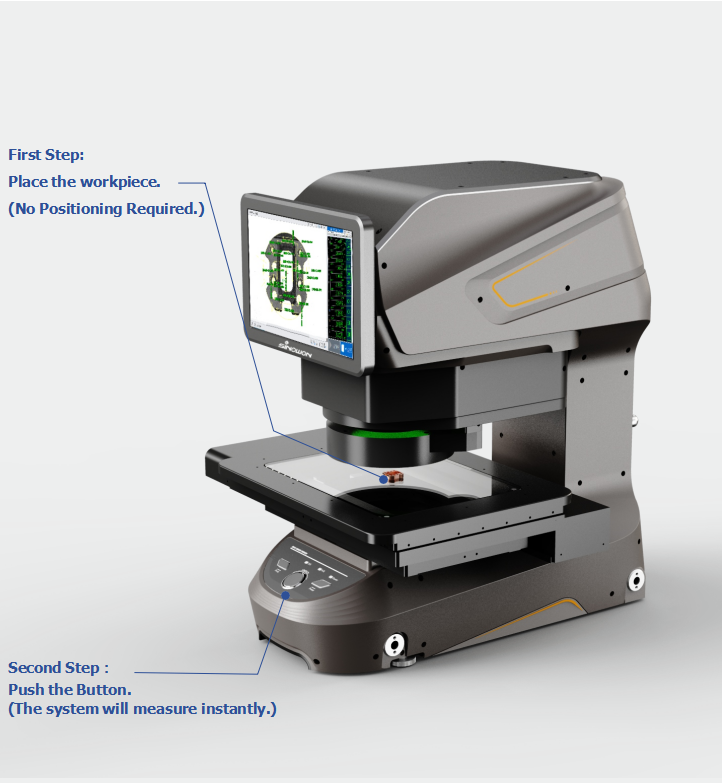

Convenient | One-Button for Measuring

Powerful Hardware Combination | High Precision Measurement

Equipped with Double Magnification Telecentric Lens and two 20MP camera, auto multi-angle surface light and optional coaxial surface light. With the independent powerful AI edge calculation algorithm, it can easily realize precise edge searching on the surface and filter invalid areas for boundary clutter. The measurement repeatability of surface light can also reach the similar level as that of bottom light.

Easy | Fast Measurement And Easy Operation

The system can measure 100 dimensions in one second, greatly reducing the measurement time. The operation interface of the software is simple and easy to be understood, and the measurement program and parameter setting can be easily written. With automatic focusing, automatic positioning and automatic measurement function, anyone operation can obtain stable measurement results.

Specifications:
