Compression Universal Testing Machines Tensile Strength Machine 50Hz / 60Hz
Compression Universal Testing Machines Tensile Strength Machine 50Hz / 60Hz
Compression Universal Testing Machines Tensile Strength Machine 50Hz / 60Hz
Compression Universal Testing Machines Tensile Strength Machine 50Hz / 60Hz
Specifications
Brand Name :
SQP
Model Number :
SL-8198
Certification :
CE/ROHS
Place of Origin :
Dongguan, China
MOQ :
1 Sets
Price :
Can be discussed
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets/Month
Delivery Time :
15 work days
Packaging Details :
Plywood
Code# :
752-122
Capacity :
2,5,10,20,50,100,200kg optional
Accuracy :
Better than ±1.0%
Size :
450*280*680mm
Weight :
25Kg
Max. Stroke :
500mm, excluding grips
500mm, excluding grips :
90mm
Description

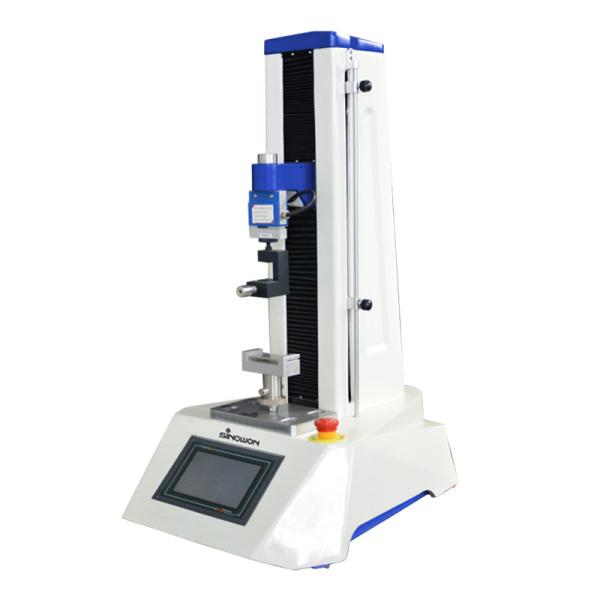

Tensile Strength Machine SL-8198

Compression Universal Testing Machines Tensile Strength Machine 50Hz / 60Hz

Product Introduction:

The SL-8198 tensile (compression) machine is the latest economic testing machine designed and developed by our company, suitable for testing tensile, peel, tear, shear, pull-out force, fatigue, etc. in industries such as adhesive products, paper products, printing and packaging, food, electronics, buttons, etc. This testing machine has high cost-effectiveness, convenient operation, and simple maintenance, making it an ideal equipment for quality testing and production assistance in various factories and enterprises.

Specifications:

Model SL-8198(screen display) SL-8198B(computer linked)
Code# 752-122 752-122B
Capacity 2,5,10,20,50,100,200kg optional
Accuracy Better than ±1.0%
Measurement unit switching Kgf, gf, N, kN, Ibf
Stress unit switching MPa, kPa, kgf/cm2, Ibf/in2
Speed 0.5～500mm/min (screen setting)
Length Mm, cm, in
Testing functions Pull, Press, Bending and so on
Functions Fracture, pressure holding, timing, fixed force value, positioning displacement, and elongation display
Displacement measurement Available
Max. Stroke 500mm, excluding grips
Space (front & back) 90mm
Grips Choose any one set of stretching or compression fixtures
PC Linked N/A PC software
Weight Around 25kg
Dimension Around 450*280*680mm(W×D×H)
Power 220V, 50Hz( or 110V, 60Hz)

Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.
