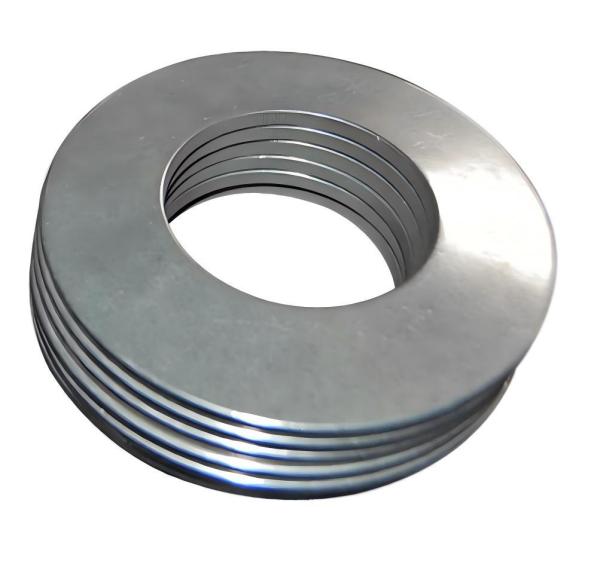

High Carbon Steel DIN 2093 Series A Disc Springs for Extreme Impact

Premium impact resistant DIN 2093A steel disc springs manufactured by SUNZO. Engineered with high carbon steel to replace traditional heavy-duty belleville disc spring washers under high fatigue loads.

In high-speed mechanical stamping presses, heavy-duty forging hammers, high-pressure hydraulic choke valves, and subsea blowout preventers, internal assemblies are subjected to sudden, violent kinetic impacts. Equipment running in these severe sectors requires heavy-duty elastic components that can handle sudden energy transfers and maintain massive axial holding force without collapsing.

When traditional thin-profile spring elements are placed in these high-velocity shock environments, they face immediate structural failure. Under massive, sudden shock waves, standard spring configurations undergo early material yielding, setting, or brittle cracking. This loss of elasticity leads directly to internal pressure loss, severe joint misalignment, and immediate sealing failures. For global Tier-1 industrial OEMs, this results in expensive system breakdowns, catastrophic fluid leaks, and high liability exposure.

As an IATF 1699 and ISO 9001 certified global manufacturing leader in high-stress industrial elasticity engineering, Jiangsu Sunzo Elastic Technology Co., Ltd. (SUNZO) manufactures high-performance Impact Resistant DIN 2093A Steel Disc Springs. Engineered using thick-section alloy profiles and advanced isothermal heat treatments, our heavy-duty conical units offer reliable kinetic energy absorption and unyielding axial preloads within tightly restricted spaces, ensuring long-term operational safety for global procurement networks.

To satisfy the strict procurement criteria of international heavy-machinery builders and automated infrastructure developers, SUNZO operates an advanced manufacturing system centered on structural density and dimensional precision:

When facing the sudden, intense impact of heavy forging cycles or immediate high-pressure valve closures, standard elastic elements frequently suffer from low toughness or rapid fatigue failure. Standard light-gauge components simply lack the mass and structural volume required to dissipate massive spikes of kinetic energy, resulting in structural distortion or immediate disintegration under load.

SUNZO addresses these severe operational demands through an advanced, thick-gauge manufacturing methodology:

• High-Purity Metallurgical Foundations: We source and process ultra-pure, vacuum-degassed High Carbon Steel (高碳钢) and premium chrome-vanadium 50CrV4 alloy steel, optimizing baseline material density.

• Strict DIN 2093A (Series A) Structural Geometry: Our components are manufactured in strict compliance with the international DIN 2093A (系列A) standard. This series is characterized by a significantly higher thickness-to-diameter ratio ($t/D$ ratio of 0.08–0.12), packing maximum material volume into a low-profile footprint.

Our advanced material processing ensures these specialized Disc Springs deliver exceptional performance under extreme stress:

• Premium Impact Resistant (抗冲击) Durability: Backed by an advanced isothermal quenching heat treatment, our components achieve a uniform matrix hardness of 45–50 HRC. This structural treatment provides outstanding Impact Resistant (抗冲击) toughness and fatigue life, allowing elements to absorb up to 120 J of energy per individual cycle without suffering permanent deformation.

• Instant High-Load Release: These heavy-duty conical units are engineered to release tens of kilonewtons of counterforce within a microscopic axial displacement range, making them a high-specification industrial alternative to standard low-profile stamped hardware.

• Unwavering Axial Preload Retention: Operating with an impressive elastic modulus of 207 GPa, our springs achieve an elite shape recovery rate exceeding 98% after deep compression, eliminating the risk of load decay or structural setting.

SUNZO ensures complete geometric and structural alignment with global testing criteria, verifying performance across extreme load ranges:

SUNZO's heavy-gauge Series A components act as high-capacity mechanical energy fields, allowing engineering teams to scale load and deflection through custom stacking configurations:

[Dynamic Hydraulic Surge] ➔ Distributed Symmetrically ➔ Damping Coefficient 0.25–0.35 Absorbs Impact
                                                                        │
[Series / Parallel Stacks] ➔ Custom Multi-Ton High-Load Capacities ➔ Protects Sensitive Transducers

• Dynamic Fluid Surge Protection: With a verified damping coefficient of 0.25–0.35, our wave profiles absorb sudden fluid surges or mechanical impacts, dissipating destructive shocks safely to protect sensitive downstream pressure sensors and electronic control valves.

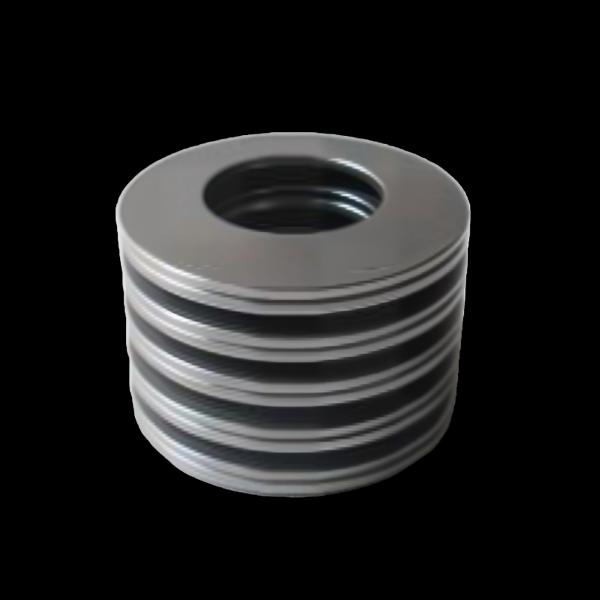

• Flexible Force Scaling: These premium units support parallel nesting (to multiply load resistance) and series stacking (to extend travel ranges). This allows engineers to build modular, high-capacity spring packs that deliver targeted resistance profiles within compact spatial constraints.

Before shipping across international supply chains, every manufacturing batch undergoes comprehensive testing within our ISO 9001-certified testing laboratories:

• ISO 16148 Load-Deflection Verification: Computer-guided digital load cells map the force delivery of finished lots to ensure perfect compliance with your engineering blueprints, maintaining a strict $pm3%$ force tolerance window.

• Dynamic Fatigue Testing per DIN 2092: Automated cyclic test rigs subject randomly selected components to multi-million cycle compression sequences, verifying long-term resistance to material settling.

• Advanced Surface Engineering Portfolio: We offer several protective options, including uniform Dacromet Coatings (8–12 $mutext{m}$ thick for 1,000+ hours of salt spray protection), custom Electropolishing ($text{Ra} < 0.4,mutext{m}$ to lower contact wear), and Crystalline Phosphating.

Jiangsu Sunzo Elastic Technology Co., Ltd. (SUNZO) operates a state-of-the-art production infrastructure designed to ensure absolute international supply chain security. Housing more than 200 large-scale punching systems, automated flat-wire coiling nodes, multi-axis CNC forming machinery, and atmosphere-controlled tempering furnaces, SUNZO comfortably scales production from rapid non-standard prototyping to high-volume multi-container global contract shipments.

Our production facilities operate under strict international management architectures, holding active quality certifications for IATF 16949 (Automotive Quality Management) and ISO 9001 (Quality Management).

• Secure Export Packaging: Every product lot is carefully packed using export-grade standards, including heavy-duty reinforced cartons or fumigated wooden boxes secured on solid wooden pallets to prevent transport damage.

• Strategic Maritime Logistics: Located close to major international shipping routes like Shanghai Port, SUNZO executes reliable global shipping pipelines directly to international buyers with a highly competitive 10-day delivery turnaround for standard inventory.

Our dedicated engineering division provides complete Finite Element Analysis (FEA) design verification, custom toolmaking, and certified material test reports. Contact our sales engineers today to eliminate load loss in your precision assemblies, request initial product samples, and secure your competitive commercial quotes.
