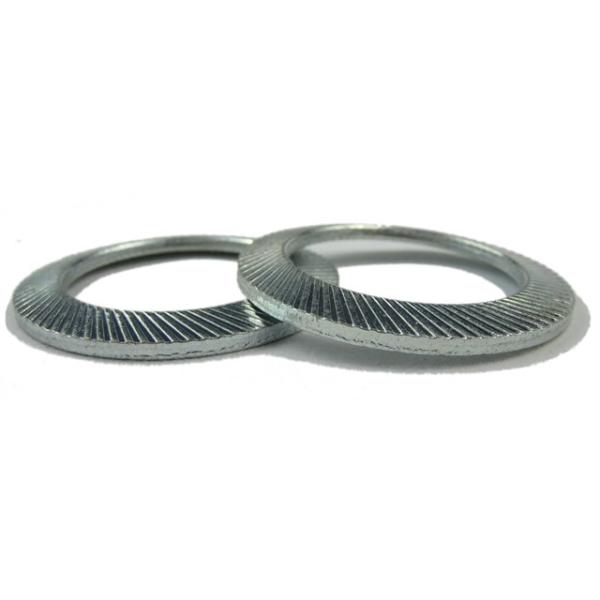

Premium DIN 9250 serrated safety washers by SUNZO, available in M1.6-M36. Ideal as a high vibration-resistant alternative or supplement to standard DIN 6796 washers for heavy-duty industrial bolted joints.

Industrial machinery operates in severe, high-vibration environments—from reciprocating compressors and rotating powertrains to heavy manufacturing equipment and high-impact tools. In these conditions, conventional fasteners constantly face cyclic loading and micro-rotational forces. Standard split lock rings and plain hardware often fail under these dynamic stresses, leading to rapid preload decay, loose structural joints, and expensive unscheduled maintenance downtime.

As an elite, globally recognized high-tech innovator in advanced locking and elastic components, Jiangsu Sunzo Spring Elasticity Technology Co., Ltd. (SUNZO) manufactures premium DIN 9250 serrated safety washers. Engineered as a high-performance, vibration-resistant alternative or critical supplement to standard DIN 6796 heavy-duty conical washers, our safety rings provide an unyielding locking solution across an extensive dimensional envelope from M1.6 up to M36.

Jiangsu Sunzo’s DIN 9250 serrated safety washers feature an engineered structural geometry designed to handle severe vibration challenges by integrating two distinct physical locking principles:

Unlike standard lock washers that rely entirely on simple clamping friction, the DIN 9250 features a precision-machined gear surface. Upon installation, this profile generates intense frictional resistance against the fastener head while the serrated teeth create an active mechanical interlock, biting directly into the contact interfaces to form a reliable barrier against backing out.

The core of this anti-loosening technology lies in a specialized tooth profile angled precisely between $45^circ$ to $60^circ$. This angular configuration creates a multi-point anchor system. Instead of allowing micro-rotations to turn into loosening torque, the teeth absorb and convert high-frequency vibrational energy into harmless micro-thermal dissipation, protecting joint integrity.

To ensure absolute reliability on the factory floor, our safety washers have undergone rigorous, independent ISO 16130 vibration testing (Junker testing). Under extreme testing profiles spanning 100,000 continuous cycles at frequencies of 10 to 2000 Hz, the Sunzo DIN 9250 successfully maintained 85% of its initial preload force—outperforming standard commercial lock washers by more than 300%.

Operating conditions across high-end commercial and industrial sectors require strict metallurgical control. Sunzo maintains full heat-number traceability across a broad material inventory, ensuring all DIN 9250 serrated lock washers deliver exact hardness and elasticity parameters:

• High-Carbon Spring Steel: Through-hardened and tempered to achieve a rigid HRC 43-45 core hardness. This cross-sectional density ensures the teeth can bite cleanly into high-tensile fasteners (up to property class 8.8, 10.9, and 12.9) without flattening out.

• Marine-Grade 316 Stainless Steel: Selected for high-moisture, chemical processing, and saltwater environments. It delivers exceptional oxidation resistance, enduring up to 1,000 hours of continuous salt spray testing per ASTM B117.

• Aerospace Titanium Alloys: Fully customizable upon request to fulfill critical lightweighting parameters and extreme corrosion defense in advanced aerospace or defense assemblies.

To support non-standard industrial systems, Sunzo offers customized hardware engineering tailored to your technical drawings:

• Surface-Nitrided Teeth: Greatly increases surface case hardness for heavy wear resistance in high-reuse maintenance setups.

• Double-Sided Serration Profiles: Engineered specifically for complex bidirectional vibration damping applications.

From micro-precision electronic motors to massive mining equipment assemblies, Sunzo provides an adaptable portfolio of DIN 9250 configurations:

Thanks to their high vibration resistance, spatial efficiency, and robust locking capabilities, Sunzo's serrated safety washers are deployed globally across demanding high-stress sectors:

Placed within continuous stamping presses, paper mill rollers, and high-RPM electric motors. These environments generate severe harmonic vibrations where standard hardware can back out within hours.

Maintains constant, unyielding preload tension on high-pressure piston caps, manifold connections, and industrial pump housing bolts subjected to continuous pressure pulses and mechanical shocks.

Deployed in high-impact environments including heavy-duty rock crushers, excavators, and wind turbine blade-root gearboxes, where outdoor exposure is paired with extreme structural joint fatigue.

Jiangsu Sunzo Spring Elasticity Technology Co., Ltd. operates a robust manufacturing infrastructure designed for international supply chain stability. Housing more than 200 large-scale punching machines, high-speed progressive stamping lines, and precision CNC machine tools, Sunzo seamlessly handles everything from specialized short-run prototyping to multi-container global shipments with absolute batch-to-batch consistency.

[200+ Punching Machines] ➔ [Atmosphere-Controlled Heat Treatment] ➔ [Automated Quality Sorting]
      Massive Throughput                   HRC 43-45 Hardness Control             Zero-Defect Batch Uniformity

Our production facilities operate under strict international management architectures, holding active certifications for IATF 16949 (Automotive Quality Management) and ISO 9001 (Quality Management System). To ensure exact print compliance, Sunzo maintains an on-site laboratory featuring handheld X-ray Fluorescence (XRF) spectrometers for 100% positive material identification (PMI), automated optical sorting machines to filter out dimensional variances, and electro-hydraulic Junker vibration testing rigs (ISO 16130 compliance).

Sunzo optimizes its design, prototyping, and export logistics through a balanced dual-center footprint within Jiangsu Province, China:

• Nanjing Engineering Hub: Located in the provincial capital of Nanjing, our R&D center focuses on advanced material fatigue analysis, custom tooth-profile modeling, and joint relaxation research.

• Sihong Manufacturing Base: Spanning 60 modern acres within the Sihong Economic Development Zone in Suqian, Jiangsu Province, our mega-base manages large-scale stamping, automated atmosphere-controlled heat treatment, and global shipping operations.

Positioned near major international maritime logistics hubs like Shanghai Port, Sunzo delivers reliable global supply chain execution alongside comprehensive technical support. Our engineering division provides digital CAD drawings, custom tooth configuration cross-referencing, and material validation reports. Contact our Nanjing sales office or our Sihong manufacturing base today to eliminate vibration loosening and secure your competitive commercial quotes.

By preventing unplanned downtime, reducing maintenance costs, and eliminating safety hazards from loose fasteners, the DIN9250 emerges as the definitive choice for industries where vibration-induced failure is not an option.
