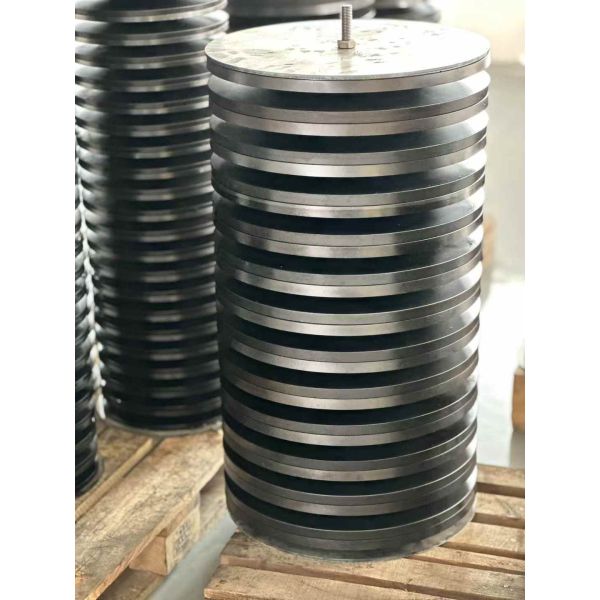

High-Capacity Disc Spring Stack for Structural Damping with Customizable Stack Heights and Progressive Dampening
High-Capacity Disc Spring Stack for Structural Damping with Customizable Stack Heights and Progressive Dampening
Specifications
Dampening Behavior :
Adjustable hysteresis characteristics
Stack Height :
Up to 2000 mm
Outer Diameter :
Up to 1000 mm
Protective Enclosures :
Heavy-duty guide rods, internal alignment sleeves, weatherproof protective boots
Material Base :
High-strength structural spring steels (51CrV4, 60Si2MnA) and premium heavy alloy plate stocks
Description
Structural Seismic Isolation & Civil Engineering
Structural Damping Disc Spring Stack for Buildings and Heavy Foundations
In civil engineering and heavy infrastructure design, protecting structures from seismic activity, heavy machinery vibration, and structural settling is critical. Jiangsu Sanzhong Elastic Technology Co., Ltd. designs and manufactures heavy-duty structural Disc Spring Stack systems that serve as elastic dampening elements for building foundations, bridge supports, and heavy industrial machinery basements. These large-scale spring assemblies absorb high-energy shocks and decouple sensitive structures from ground vibrations.
[Dynamic Ground/Machinery Shock Vibration]
        |  |  |  |  |
        V  V  V  V  V
  =================================  <-- Isolation Base Plate
    ___  ___        ___  ___
    /    /            /    /
    /__________     /__________    <-- High-Capacity
    _____________    _____________        Sanzhong Stack
    /                  /
    /_______________ /_______________
  =================================  <-- Rigid Foundation
        |  |  |  |  |
        V  V  V  V  V
  [Controlled Energy Dissipation & Return]
Our structural spring stacks are engineered to support massive static loads while remaining flexible enough to absorb dynamic kinetic energy. By utilizing specialized series-parallel combinations, we can design a stack that provides soft, dampening characteristics for minor daily vibrations, but stiffens progressively during major seismic events. This progressive performance protects critical structural connections from catastrophic failure.
Target Client Applications
  • Machinery Isolation Foundations: Positioned under heavy forging hammers, stamping presses, and large diesel generators to damp ground vibrations.
  • Bridge Expansion Bearings: Installed in highway and railway bridge piers to accommodate structural expansion and concrete shrinkage.
  • Seismic Building Isolators: Integrated into base isolation systems for buildings in active seismic zones to reduce lateral forces.
Technical Specifications & Product Parameters
Parameter Specification
Material Base High-strength structural spring steels (51CrV4, 60Si2MnA) and premium heavy alloy plate stocks
Stack Heights (L₀) Fully customizable configurations extending up to 2,000 mm or more inside protective guide housings
Outer Diameter Size Spec Large-scale manufacturing capabilities reaching up to 1,000 mm for heavy infrastructure needs
Dampening Behavior Hysteresis characteristics can be adjusted by changing the number of parallel-nested discs within the stack
Protective Enclosures Supplied with heavy-duty guide rods, internal alignment sleeves, and weatherproof protective boots to prevent dirt entry
