Specifications
Brand Name :
Coarrech
Model Number :
CT-PQ-I-II-III
Certification :
ISO9001、CE
Place of Origin :
CHINA
MOQ :
1pc
Price :
1000-100000 USD
Payment Terms :
T/T
Supply Ability :
20SET/MONTH
Delivery Time :
30 DAYS After Deposit
Packaging Details :
With regular Film and Carton
Feature :
Auto Parts and Furniture
Wallboard :
50mm EPS Panel, 0.6 Steel
FeatuDirect Drivere :
Rust / Corrosion Inhibitor
Power Supply :
380V/220V/50Hz/60HZ
Exhaust System :
Centrifugal Fans & Turbo Fans
Heating System :
Oil-Fired, Gas-Fired & Electric
Intended Use :
Automotive and Compact Industrial Components
Control System :
Standard Electrical Relays & Push-Button Interfaces
Description

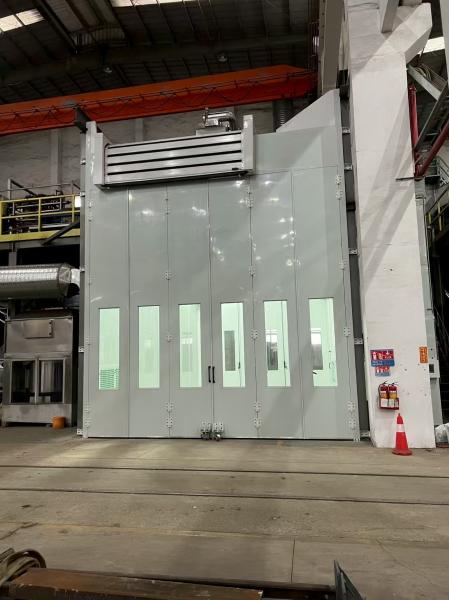

Large Spray Booths for Bus Truck Painting Heavy Duty Truck Paint Baking Room Diesel Heating System Spraying Oven

About Big Size Spray Booth System

This highly adaptable spray booth delivers exceptional operational flexibility through multi-fuel compatibility (diesel, gas, steam, electricity) and dual-voltage electrical systems (380V/50Hz/3Ph or custom), enabling site-specific optimization. Its advanced PLC touchscreen control enables precise automation of temperature, airflow, and curing cycles, while the robust steel construction with premium insulation options (EPS, rock wool, PU, metal) ensures thermal efficiency and durability. Customizable layouts with fold/rolling doors accommodate large components, coupled with a high-capacity 25,000 m³/h airflow system and multi-stage filtration (ceiling, fiberglass, activated carbon) for uniform coating results, effective VOC containment, and compliance with environmental standards.
Specification

Attribute Description Attribute Description
Product Name Large Industrial Spray Coating Booth Power Configuration 380V / 50Hz / 3 Phase (Optional Alternatives)
Fuel Compatibility Supports Diesel, Gas, Steam, or Electric Heating Door Options Folding or Automated Rolling Access Door
Drive System Local or Imported Motor Choices Control Interface Manual Switch Panel or PLC Touch Controller
Panel Insulation EPS / PU Foam / Rock Wool / Metal Panel Options Finish Color White or Custom-Defined Colors
Target Applications Suitable for Buses, Trucks, or Large Metal Parts Energy Input Types Gas, Electricity, or Water Heating Supported
Product Description

1. Optimized Energy & Airflow System (Core Benefit)

  • Efficiency Focus: Synergistic rapid heating & air circulation reduces energy consumption.

  • Advanced Feature: Optional waste heat recovery further enhances energy savings.

  • Power Specifications:

    • Rated Power: 19.5 kW

    • Input Voltage: 380V / 3 Phase / 50Hz (Standard industrial, ensures worldwide compatibility).

  • Operational Impact: Delivers significant operational savings and improved throughput.

2. Robust Physical Construction & Dimensions

  • Exterior Dimensions: 6950 mm (L) × 5150 mm (W) × 3350 mm (H)

  • Interior Work Space: 6850 mm (L) × 3850 mm (W) × 2600 mm (H) - Provides ample space for diverse vehicles/components.

  • Materials & Build:

    • Durable metal frame (typically galvanized steel plates).

    • Fire-resistant insulation materials.

  • Sealed Environment: Hermetically sealed chamber critical for:

    • Maintaining airtightness.

    • Ensuring thermal insulation during spraying & baking.

  • Core Design Principle: Creates a dust-free / low-dust environment to prevent contamination and guarantee a pristine finish.
