Specifications
Brand Name :
CoatTech
Model Number :
CT-Prep A1
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD1000-USD6000/SET
Payment Terms :
T/T
Supply Ability :
30SET/MONTH
Delivery Time :
15 DAYS After Deposit
Packaging Details :
With regular Film and Carton
NAME :
CT-Prep A1
Using Energy: :
Diesel,gas,steam,electric Or Other Option
Main Door: :
Fold Style Or Electric Rolling Style
Motor: :
Chinese Brand Or Import Brand
Control Sytem: :
Switch Style Or PLC Touch Screen Control
Wall: :
Metal Sheld,EPS,Rock Wool Of PU For Option
Color: :
White Or Other Option
Application: :
Bus/truck Or Other Metallic Products
Energy Sources: :
Water, Electricity,gas
Coating :
10-50um
Dimention: :
As Require
Description

CoatTech Economy Automotive Prep Station with Rear Extraction & PVC Curtains (Model: CT-Prep A1)

Introduction: The CT-Prep A1 is the ideal entry-level solution for workshops with limited space or budget. This unit is primarily designed to remove dust and paint mist during polishing and light sanding. It features a rear extraction plenum and requires no ground excavation or raised basement, making installation fast and simple. The soft PVC curtains provide flexible isolation to ensure a clean working environment.

Technical Specification Sheet

Parameter Specification
Model CT-Prep A1
Internal Dimensions 6300 (L) x 3450 (W) x 2700 (H) mm
Basement Type None (Flat Floor Installation)
Airflow Style Semi-Downdraft / Rear Wall Exhaust
Enclosure Rear EPS Plenum + 3-Side Manual PVC Curtains
Air Capacity 12,000 m³/h
Fan Unit 1 x 5.5 kW Centrifugal Fan (Exhaust)
Filtration Ceiling Filter + Rear Fiberglass Paint-Stop Filter
Lighting 24 Units x 16W LED Tubes (Ceiling)
Total Power 6.5 kW
Control System Standard Relay Control (Fan & Light)

CoatTech Economy Automotive Prep Station with Rear Extraction & PVC CurtainsCoatTech Economy Automotive Prep Station with Rear Extraction & PVC CurtainsCoatTech Economy Automotive Prep Station with Rear Extraction & PVC CurtainsCoatTech Economy Automotive Prep Station with Rear Extraction & PVC CurtainsCoatTech Economy Automotive Prep Station with Rear Extraction & PVC CurtainsCoatTech Economy Automotive Prep Station with Rear Extraction & PVC Curtains

CoatTech Economy Automotive Prep Station with Rear Extraction & PVC CurtainsCoatTech Economy Automotive Prep Station with Rear Extraction & PVC CurtainsCoatTech Economy Automotive Prep Station with Rear Extraction & PVC Curtains

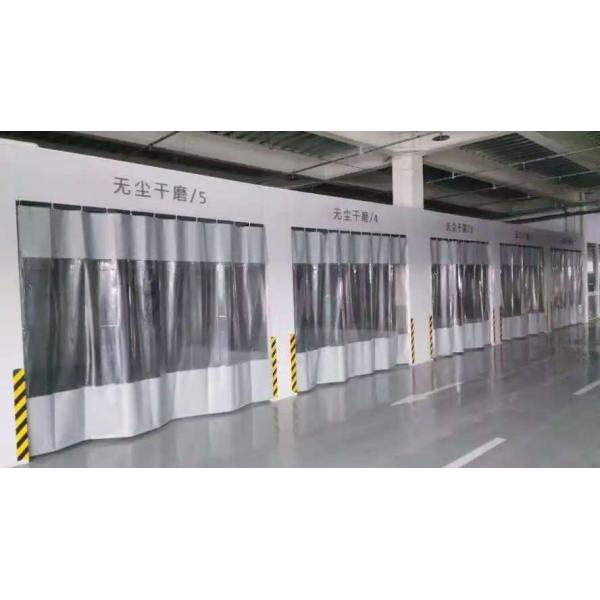

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

  • Convenience: Easily slide curtains open to move cars in and out quickly.

  • Visibility: Transparent windows allow the manager to monitor work progress.

  • Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.


FAQ

Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

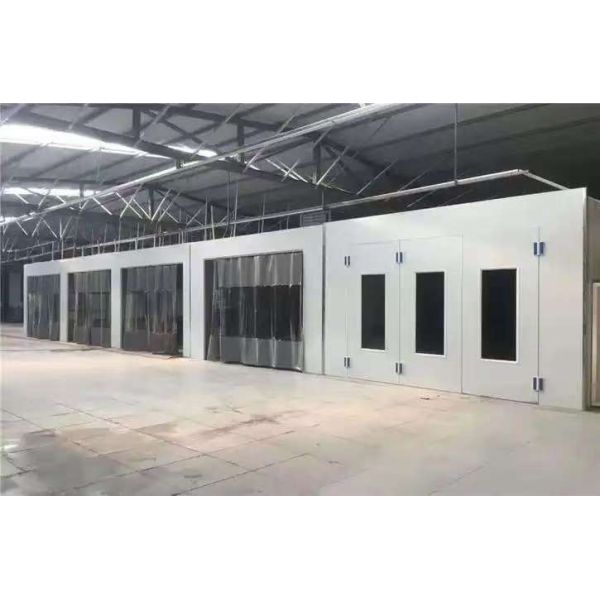

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.
