Pre Station Double Bay Preparation Station with Zero Level Entry and Rear PVC Curtains for Enhanced Safety and Air Extraction

Overview The "Smart Repair" Bay is a compact version of our prep station, specifically optimized for spot repairs, bumper painting, and polishing. It features higher-density filtration to allow for small painting jobs (spot blending) without needing a full-sized spray booth.

Core Features

• Enhanced Filtration: Uses EU5 Ceiling Filters and Ceiling Plenum similar to a spray booth for cleaner air during spot painting.

• Compact Footprint: Slightly smaller dimensions available for tight shop corners.

• Motorized Curtains (Optional): Upgrade to electric roll-up PVC curtains for a premium customer experience.

• High-Lux Lighting: Extra LED banks on the vertical pillars for detailed color matching and scratch detection.

Technical Specification Sheet

Detailed Product Description

Optimized Workflow for Body Shops The CT-PREP-200 is the workhorse of the body shop. By performing sanding, masking, and priming in this dedicated station, you prevent dust contamination in your main spray booth. This dramatically improves the quality of your final topcoat.

Airflow Design (Semi-Downdraft) Air is drawn from the workshop through the top plenum filters (cleaning the air), moves downwards over the vehicle to capture sanding dust and primer overspray, and is exhausted through the rear wall or floor pit. This ensures the technician breathes clean air.

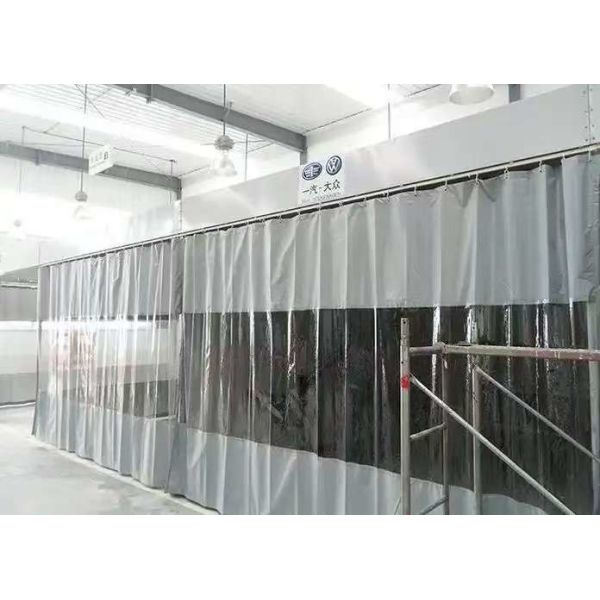

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

• Convenience: Easily slide curtains open to move cars in and out quickly.

• Visibility: Transparent windows allow the manager to monitor work progress.

• Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.

Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.
