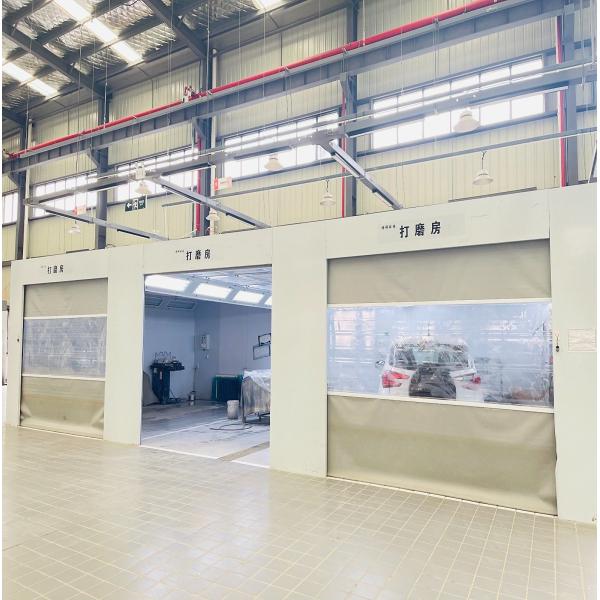

CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
Specifications
Brand Name :
CoatTech
Model Number :
CT-Prep A14
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD1000-USD6000/SET
Payment Terms :
T/T
Supply Ability :
30SET/MONTH
Delivery Time :
15 DAYS After Deposit
Packaging Details :
With regular Film and Carton
NAME :
CT-Prep A14
Using Energy: :
Diesel,gas,steam,electric Or Other Option
Main Door: :
Fold Style Or Electric Rolling Style
Motor: :
Chinese Brand Or Import Brand
Control Sytem: :
Switch Style Or PLC Touch Screen Control
Wall: :
Metal Sheld,EPS,Rock Wool Of PU For Option
Color: :
White Or Other Option
Application: :
Bus/truck Or Other Metallic Products
Energy Sources: :
Water, Electricity,gas
Coating :
10-50um
Dimention: :
As Require
Description

CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow

Introduction:

This prep station features a fully enclosed workspace on three sides to create a superior workshop environment. By using solid EPS panels instead of side curtains, it prevents cross-contamination.

Technical Specification Sheet

Model Inner Size (mm) Outer Size (mm) Total Airflow Heating Total Power Application
CT-Prep A14 6900×3900×2700 7000×5400×3400 22,000 m³/h None 14.5 kW High-Dust Sanding
System Component Description Optional
Cabin System Wall Panels 3 Sides: 50mm EPS Sandwich Panels (White) Rockwool Fireproof Panel
Front Door Transparent PVC Sliding Curtain -
Basement 300mm Raised Metal Base (Full Grid Recommended) -
Air System Intake Fan 1 unit × 7.5 kW Turbo Fan -
Exhaust Fan 1 unit × 5.5 kW Centrifugal Fan -
Lighting Position Ceiling Lights + Waist Level Side Lights -
Control Panel Digital Control Panel with Pressure Gauge -

CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure AirflowCoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure AirflowCoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure AirflowCoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure AirflowCoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure AirflowCoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.

  • Convenience: Easily slide curtains open to move cars in and out quickly.

  • Visibility: Transparent windows allow the manager to monitor work progress.

  • Durability: Resistant to solvents and wear.

Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.


FAQ

Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.

Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.

Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.

Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.

CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
CoatTech Semi-Enclosed Metal Wall Sanding Booth with Front PVC Curtain and Positive Pressure Airflow
If you have any doubt or idea,please send the inquiry,we will respond to you immediately!
