Reciprocating Automatic Spray Painting Machine for Cabinet Doors & Wood Panels Dated on Sep 22nd,2026

Category: Products / Smart Painting Line | Cabinet doors, wooden doors, bathroom vanities, moulded panels

Editorial summary This release covers the CoatTech reciprocating automatic spray painting machine, shown here coating a cabinet door panel inside a clean spray booth. A multi-axis reciprocating spray arm traverses above the workpiece, an integrated flipping mechanism turns the panel for reverse-side coating, and a grated base with downdraft extraction removes overspray immediately. The result is a repeatable, hands-free finishing process for high-mix panel production.

01 What the picture and video show

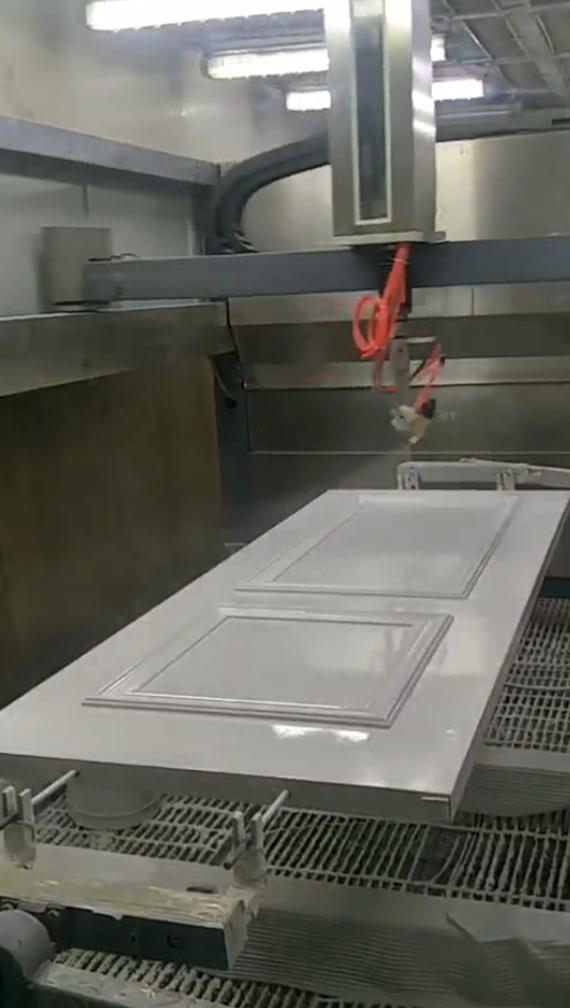

Reciprocating spray arm — the spray gun is mounted on a multi-axis, programmable arm suspended from an overhead rail, traversing rapidly above the panel

Raised-panel cabinet door — a white rectangular door with a profiled, recessed border sits on the metal mesh conveyor bed — exactly the shaped surface this machine is built to coat

Angled, rotating gun head — the gun can tilt and rotate, so it covers the flat face evenly and still reaches moulding lines, grooves and edges

Automatic flipping mechanism — in the second half of the video a support arm lifts and turns the panel, allowing the reverse side to be coated without manual handling

Stainless booth interior — the machine works inside a clean stainless-steel spray cabin with multiple ceiling luminaires

Grated base with downdraft — the workpiece rests on an open grated bed with powerful lower extraction and paint-mist filtration beneath

02 Key features

Program-controlled reciprocation — spray distance, traverse speed and fluid output are set in the program, so every panel is coated the same way

Multi-axis gun positioning — tilt and rotation let one head cover flat faces, profiled mouldings, grooves and panel edges in a single pass

Automatic panel flipping — an integrated lifting and turning mechanism flips the door for reverse-side coating, removing manual handling of wet film

Grated bed with downdraft extraction — overspray is drawn down through the bed and captured by filtration before it can settle on the finished surface

Clean stainless cabin — a washable stainless interior keeps the environment controlled and simplifies cleaning between colours

Conveyor integration — the bed interfaces with upstream loading and downstream flash-off, drying or curing sections

Recipe-based operation — stored programs let operators switch between door sizes, colours and coating types quickly

03 Technical data

* Stroke length, number of axes, gun count, conveyor speed and extraction volume are confirmed during layout engineering to match panel size, coating type and required output.

04 Why it matters in a panel finishing line

Manual spraying of cabinet and door panels is difficult to keep consistent: film thickness, colour and edge coverage vary with the operator, and handling a wet panel risks marking the finish. A reciprocating machine removes that variability. The program controls distance, speed and flow, while the flipping mechanism turns the panel automatically — so both faces and all four edges are coated without anyone touching the wet surface.

05 Customer benefits

Higher throughput — continuous automatic cycling shortens the production takt time compared with manual spraying.

Consistent quality — program control avoids runs, orange peel, colour variation and uneven film build.

Cleaner finish — downdraft extraction removes overspray before it can settle on the coated surface.

Less rework and handling damage — automatic flipping keeps hands off the wet film.

Lower coating cost — controlled application raises transfer efficiency and reduces VOC emissions.

Frequently Asked Questions

Q: What is a reciprocating automatic spray painting machine? A: A machine where one or more spray guns are mounted on a motorised arm that traverses back and forth above the workpiece, applying coating automatically under program control.

Q: Which products can it coat? A: Cabinet doors, wooden doors, bathroom vanity doors, wardrobe panels, moulded and profiled boards — flat panels as well as panels with grooves, mouldings and shaped edges.

Q: Can it coat profiled or raised-panel doors? A: Yes. The gun head tilts and rotates so it sprays flat faces evenly while still reaching moulding lines, recesses and panel edges.

Q: How are both sides of a panel coated? A: An integrated lifting and flipping mechanism raises and turns the panel automatically, so the reverse side and edges are coated without manual handling of the wet film.

Q: Which coatings can be applied? A: Primer, topcoat, UV coating and water-based paint, depending on the configured pump, gun and extraction package.

Q: Does it reduce overspray problems? A: Yes. The grated bed with downdraft extraction draws overspray down and captures it in filtration before it can settle on the freshly coated surface.
