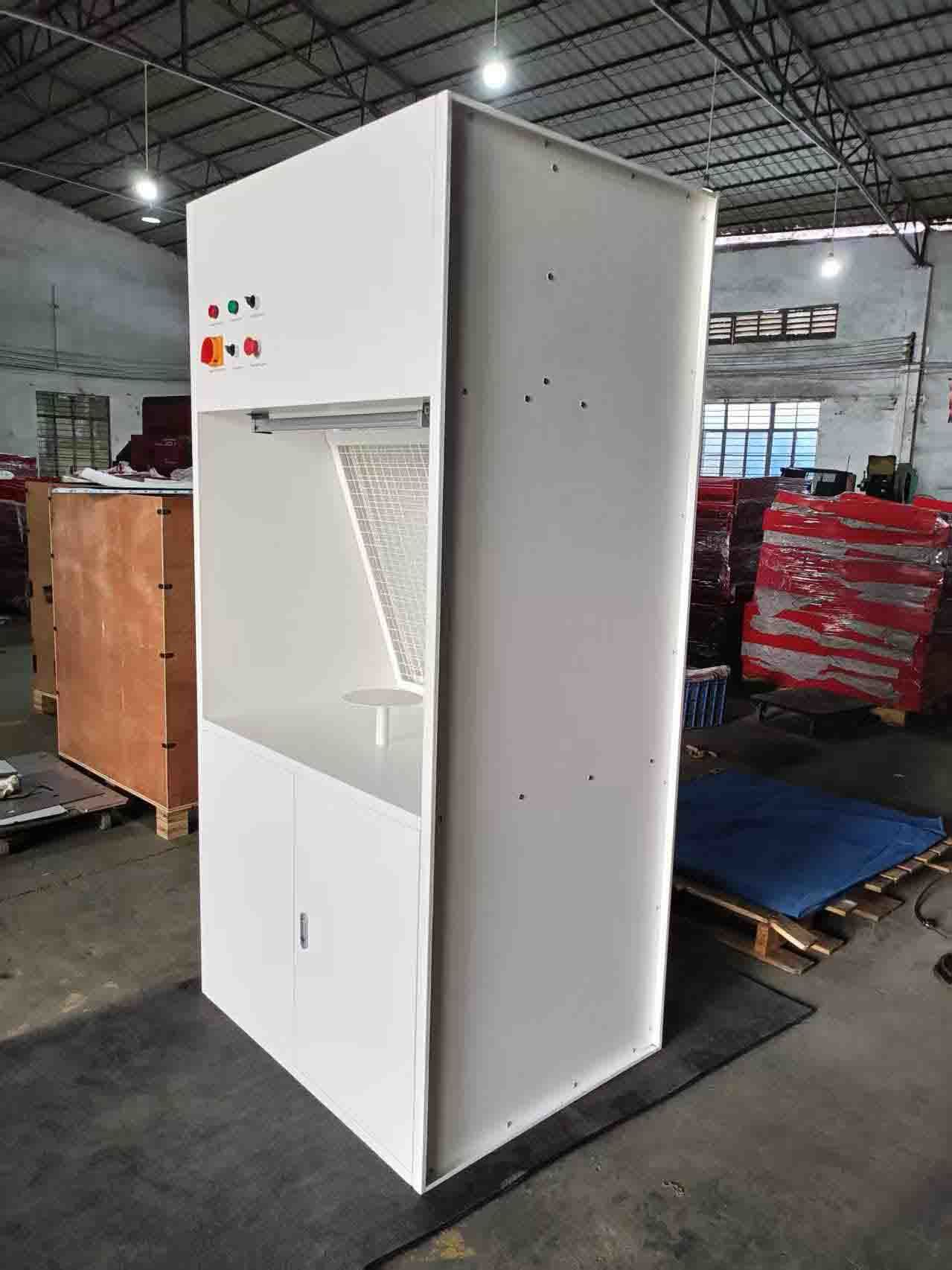

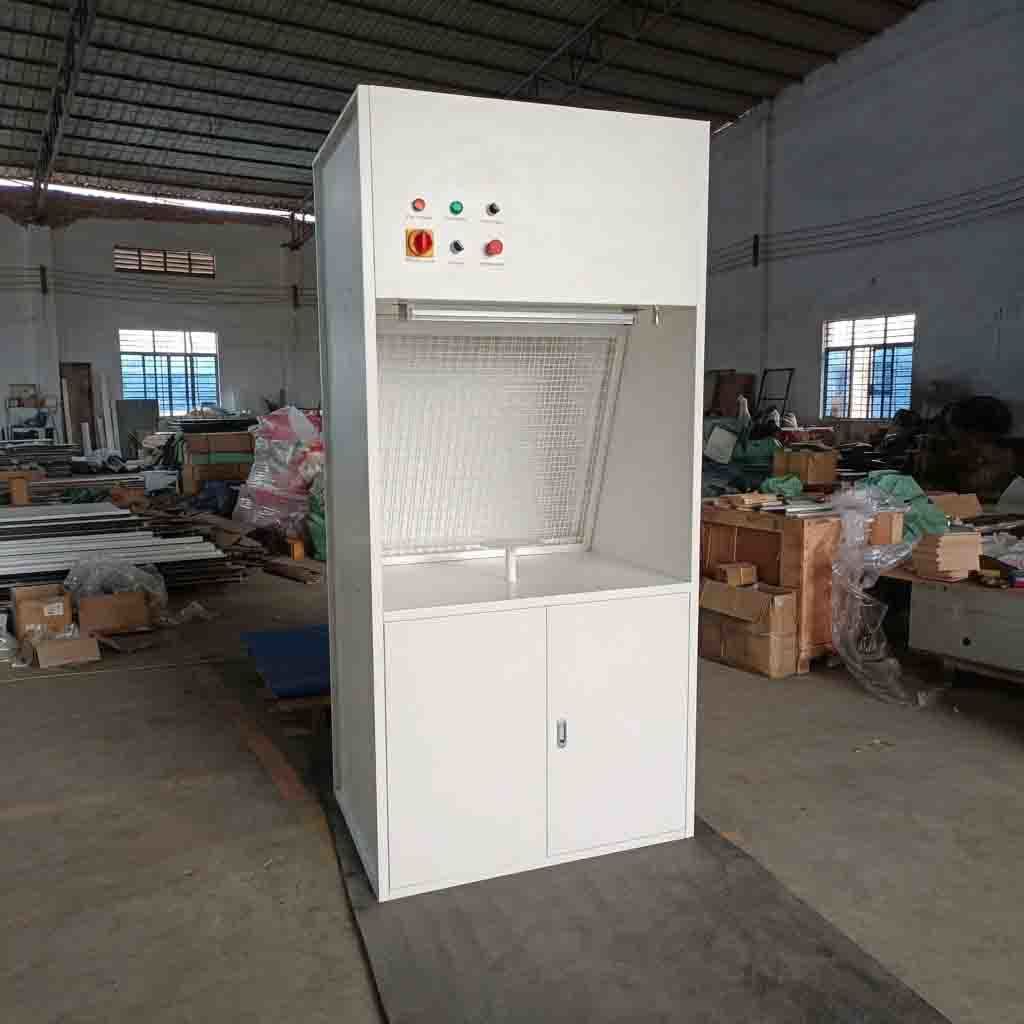

Industrial Paint Touch-Up Booth with Built-In Exhaust Fan | CoatTech

1. Product Overview

Welcome to CoatTech Intelligent Equipment (Guangzhou) Co., Ltd. Our professional Paint Touch-Up Booth is engineered for precision component testing, small-batch coating, and laboratory finishing operations. Designed with safety, efficiency, and environmental compliance in mind, this compact spray cabinet ensures optimal workspace isolation and superior coating performance for industrial applications,so please continue your focus,thank you

2. Core Advantages & Features

1.Integrated Built-In Exhaust Fan (hahah,here is the shinning point): A major highlight of this touch-up booth is its built-in, space-saving explosion-proof axial fan at the top. Unlike traditional setups requiring bulky external extraction systems, this highly compact and integrated design simplifies installation, reduces equipment footprint, and allows for immediate plug-and-play operation.

2.Robust Construction: The main cabinet is fabricated from premium 1.5mm high-grade steel plates, finished with a durable powder coating to resist corrosion and chemical wear.

3.Explosion-Proof Safety: Equipped with an explosion-proof lighting box and an explosion-proof axial flow fan to guarantee operational safety in volatile paint environments.

4.Efficient Airflow Control: Features a top-exhaust layout with a dedicated pneumatic damper. This prevents air backflow and cross-drafts, ensuring consistent ventilation and a clean working zone.

5.High-Quality Filtration: Utilizes EN779 G3 rated fiberglass paint-stop filter mats (green on the intake side, white on the exhaust side) to effectively capture paint overspray and protect the exhaust system.

6.Synchronized Exhaust System: The booth comes with a backdraft damper and is designed to connect seamlessly with your facility's main paint shop exhaust ducting network.

3. Technical Specifications

The following parameters and specifications are detailed for engineering review and procurement planning. These parameters are organized into a clear format, making it simple to drop right into your website's administrative backend.

4. Commercial Terms & Pricing

5. Frequently Asked Questions (FAQ)

Q1: What are the main benefits of the built-in exhaust fan design?

A: The built-in explosion-proof axial flow fan eliminates the need for bulky external extraction machinery right at the workstation. It provides an all-in-one, compact plug-and-play solution that saves factory floor space while maintaining a powerful 2,880 m³/h airflow volume.

Q2: Can this touch-up booth be connected to an existing central ventilation system?

A: Yes. The unit comes equipped with a built-in backdraft damper and check valve, allowing it to connect synchronously with your facility's main exhaust ducting network for central emissions handling.

Q3: What kind of filtration does the booth use?

A: It uses high-efficiency EN779 G3 rated fiberglass paint-stop filter mats. The intake-facing side is green and the exhaust-facing side is white, ensuring maximum overspray capture and clean air discharge.

Q4: How is the equipment shipped internationally?

A: To comply with international shipping container dimensions and freight efficiency, industrial machinery of this size is shipped as bulk, disassembled parts. Detailed assembly instructions are provided.

6. Shipping & Logistics Note

To adhere to international shipping container limitations and optimize your freight logistics, please note that any oversized industrial machinery is strictly shipped as bulk, disassembled parts rather than pre-assembled units. Please consult with our overseas marketing team to coordinate the exact container loading plans and packaging requirements for your order.
