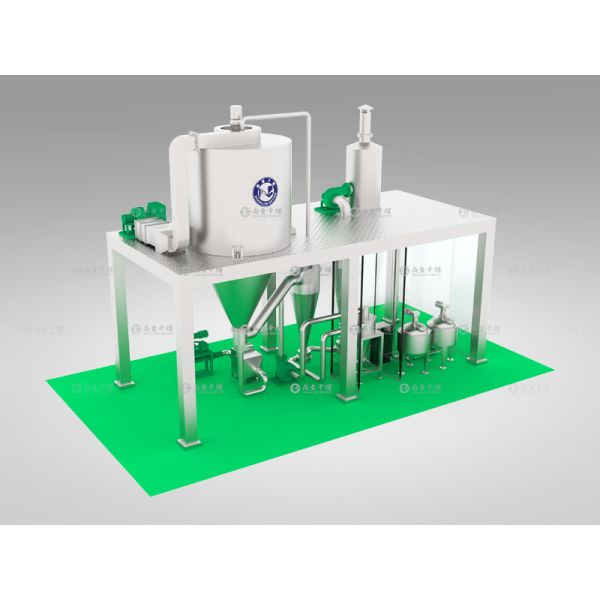

High Speed Centrifugal Industrial Spray Dryer Battery Materials Drying Equipment
High Speed Centrifugal Industrial Spray Dryer Battery Materials Drying Equipment
Specifications
Inlet Temperature :
140-350°C (Auto-control)
Outlet Temperature :
80-90°C
Water Evaporation Rate :
50 kg/h
Atomizer Drive Mode :
Mechanical Drive
Max Speed :
18,000 rpm
Spray Disk Diameter :
120 mm
Max Electric Power :
72 kW
Dimensions :
3.5m L × 3.5m W × 4.8m H
MOQ :
1pcs
Packaging Details :
Wooden Case
Delivery Time :
5-8 weeks
Payment Terms :
L/C，T/T
Description
High Speed Centrifugal Spray Dryer for Battery Materials
Designed for small production runs, the LPG-50 offers a maximum water evaporation capacity of 50 kg/h. It features a mechanical drive atomizer running at 18,000 r.p.m equipped with a 120 mm spray disk. The system utilizes a flexible Steam + Electric, Fuel, Gas, or Hot Air Stove heat source configuration, with a maximum electric power requirement of 72 kW. The physical footprint is 3.5m L × 3.5m W × 4.8m H. It provides stable drying performance with auto-controlled inlet temperatures (140-350°C) and guarantees a powder recovery rate of ≥95%.
Working Principle
The system operates by filtering and heating air that enters through the air distributor at the top of the dryer. Feed liquid is processed through a high-speed centrifugal atomizer located at the top of the tower body, where it rotates and sprays into extremely fine mist-like liquid beads. These droplets contact parallel hot air flow and are dried into finished products within seconds. The finished product continuously outputs from the bottom of the drying tower and cyclone separator, while exhaust gas is discharged by the fan system.
Application Scope
New Energy Applications: Lithium iron phosphate, sodium ion battery materials
Technical Parameters
Parameter / Model 5 25 50 150 200-7000
Inlet Temperature (°C) 140-350 (Auto-control)
Outlet Temperature (°C) 80-90
Max. Water Evaporation Rate (kg/h) 5 25 50 150 200-7000
Centrifugal Atomizer Drive Mode Compressed Air Drive Mechanical Drive
Max. Speed (rpm) 25,000 18,000 18,000 15,000 Customized
Spray Disk Diameter (mm) 50 120 120 150 Determined by actual conditions
Heat Source Electric Steam + Electric Steam + Electric, Fuel Oil, Gas, Hot Air Stove
Max. Electric Heating Power (kW) 9 36 72 99 Determined by actual conditions
Overall Dimensions (L*W*H) (m) 1.8 * 0.93 * 2.2 3 * 2.7 * 4.26 3.5 * 3.5 * 4.8 5.5 * 4 * 7 Determined by actual conditions
Dry Powder Recovery (%) ≥95
Note: Empty cells indicate parameter not specified for that model
