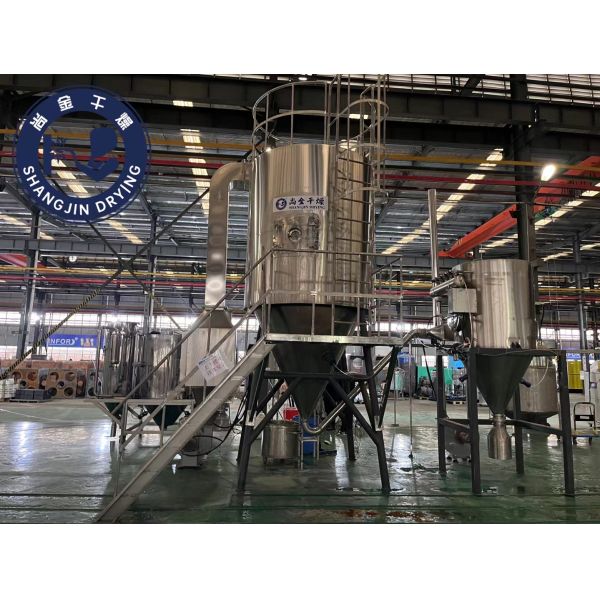

High Speed Centrifugal Spray Dryer Systems For Battery Materials
High Speed Centrifugal Spray Dryer Systems For Battery Materials
Specifications
Warranty :
1 Year,2 Years,one year,12 Months,3 Years
Certification :
CE ISO,ISO9001,TUV SGS,ISO 9001,CE Certificate
Application :
Chemical,Food Processing,Medicine Processing,Industry
Name :
Spray Drying Machine
Color :
Blue,home using in white/anti-static in blue gray,Silver
type :
5
MOQ :
1pcs
Packaging Details :
Wooden Case
Delivery Time :
5-8 weeks
Payment Terms :
L/C，T/T
Description
High Speed Centrifugal Spray Dryer for Battery Materials
Spray drying is the most widely used industrial process for liquid forming and drying applications. This method is ideal for producing powder and granular solid products from various liquid raw materials including solutions, emulsions, suspensions, and pastes. The process ensures precise control over particle size distribution, residual moisture content, bulk density, and particle shape of finished products.
Working Principle
The system operates by filtering and heating air that enters through the air distributor at the top of the dryer. Feed liquid is processed through a high-speed centrifugal atomizer located at the top of the tower body, where it rotates and sprays into extremely fine mist-like liquid beads. These droplets contact parallel hot air flow and are dried into finished products within seconds. The finished product continuously outputs from the bottom of the drying tower and cyclone separator, while exhaust gas is discharged by the fan system.
Application Scope
New Energy Applications: Lithium iron phosphate, sodium ion battery materials
Technical Parameters
Parameter / Model 5 25 50 150 200-7000
Inlet Temperature (°C) 140-350 (Auto-control)
Outlet Temperature (°C) 80-90
Max. Water Evaporation Rate (kg/h) 5 25 50 150 200-7000
Centrifugal Atomizer Drive Mode Compressed Air Drive Mechanical Drive
Max. Speed (rpm) 25,000 18,000 18,000 15,000 Customized
Spray Disk Diameter (mm) 50 120 120 150 Determined by actual conditions
Heat Source Electric Steam + Electric Steam + Electric, Fuel Oil, Gas, Hot Air Stove
Max. Electric Heating Power (kW) 9 36 72 99 Determined by actual conditions
Overall Dimensions (L*W*H) (m) 1.8 * 0.93 * 2.2 3 * 2.7 * 4.26 3.5 * 3.5 * 4.8 5.5 * 4 * 7 Determined by actual conditions
Dry Powder Recovery (%) ≥95
