ZLG Series Vibrating Fluid Bed Dryer Fbd 4 - 22 Kw
ZLG Series Vibrating Fluid Bed Dryer Fbd 4 - 22 Kw
Specifications
Liquid Feeding Mode :
top spray
Fan Power :
4-22 kw
Case Body Shape :
Square-shape
Revolution Speed :
11-110 rpm
Bed Area :
0.9-9.0 m²
Inlet Temperature :
70-140 °C
Evaporation Capacity :
20-260 kg/h
Motor Power :
2.2-15.0 kW
MOQ :
1pcs
Packaging Details :
Wooden Case
Delivery Time :
5-8 weeks
Payment Terms :
L/C，T/T
Description

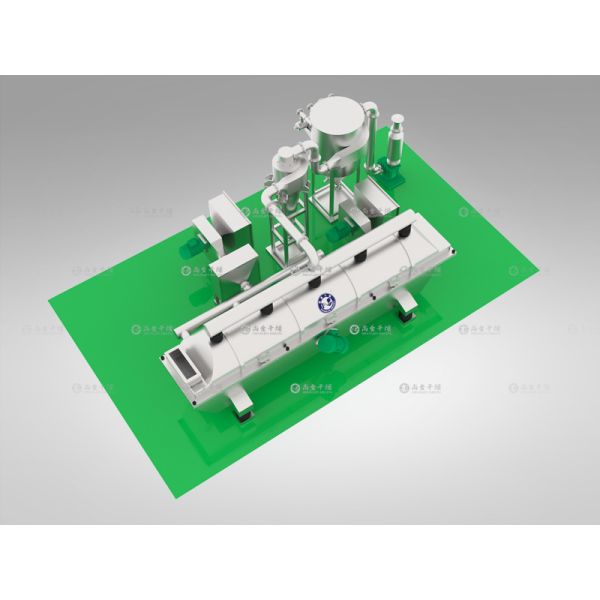

ZLG Series Vibrating Fluid Bed Dryer

Optimize your production with the ZLG Vibrating Fluid Bed Dryer. Ideal for fragile materials, offering 30-60% energy savings, uniform fluidization, and GMP compliance.

Precision Drying for Fragile Materials

The ZLG Series Vibrating Fluid Bed Dryer is engineered for industries requiring gentle material handling and high thermal efficiency. By combining mechanical vibration with advanced aerodynamics, it achieves a stable "boiling" state that ensures every particle is dried uniformly without surface damage.

Key Advantages
  • Maximum Energy Efficiency: Innovative heat exchange design saves 30-60% energy compared to standard drying units.
  • Gentle Product Handling: Driven by dual vibration motors, the material moves in a controlled jumping motion, making it perfect for fragile crystals and granules.
  • Eliminate Dead Zones: Ensures uniform fluidization even with varying particle sizes, preventing "channeling" or "blow-through."
  • Fully Adjustable Parameters: Easily tune bed thickness, residence time, and vibration amplitude for diverse material requirements.
  • GMP & Sanitary Standards: Fully enclosed stainless steel structure prevents cross-contamination, ideal for pharmaceutical and food-grade applications.
Technical Specifications
Model Bed Area (m²) Inlet Temp (°C) Evaporation (kg/h) Power (kW)
ZLG 3.0 ×0.30 0.9 70-140 20-35 2.2
ZLG 6.0 ×0.60 3.6 70-140 80-150 7.5
ZLG 7.5 ×1.2 9.0 70-140 180-260 15.0
