Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production
Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production
Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production
Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production
Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production
Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production
Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production
Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production
Specifications
Brand Name :
Hwashi
Model Number :
WL-SQ-250K
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$10000-$40000
Payment Terms :
T/T, L/C
Supply Ability :
10 sets/month
Delivery Time :
30-60 days
Packaging Details :
wooden box
Mesh Size :
50-200mm
Welding Speed :
High Speed
Operation Mode :
Automatic/Manual
Mesh Shape :
Wire Basket，basket Mesh
Wire Diameter :
0.2-2.5mm（According To Power）
Control System :
PLC Control
Power Capacity :
High Capacity
Product Name :
Wire Basket Mesh Welding Machine
Description

Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production

As a brand with 20 years of accumulated resistance welding technology, the core advantage of Hwashi welding machines comes from technological breakthroughs in details. The equipment is equipped with a WD-KD 5 intelligent microcomputer controller, which can real-time monitor welding current, pressure and time, ensuring that the parameter error of each welding point is controlled within ±1%. The welding transformer is made of high-purity silicon steel sheets, with a magnetic permeability 25% higher than that of ordinary transformers. It not only reduces energy consumption by 15%, but also can maintain stable output during 8 hours of continuous high-intensity operation. In terms of material compatibility, whether it is low-carbon steel, stainless steel or galvanized iron wire, the equipment can be accurately matched through 8 adjustable current levels to avoid problems such as cold welding and burn-through. The imported German Semikron thyristor components can make the equipment have a trouble-free operation time of more than 10,000 hours, greatly reducing production losses caused by shutdown maintenance.

Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production

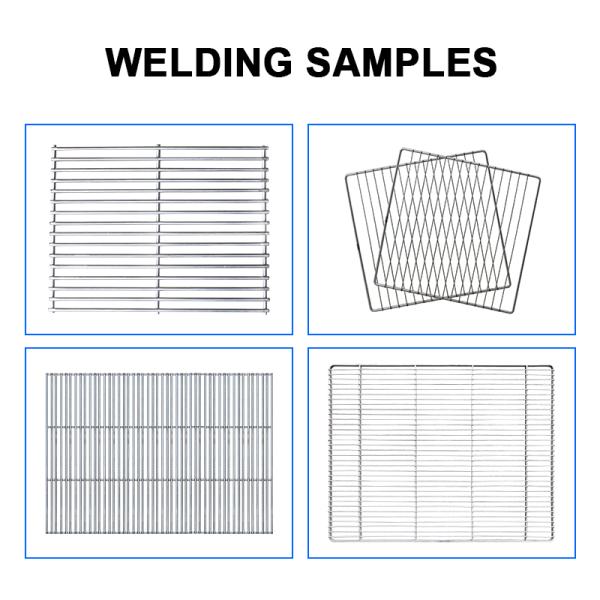

  • Powerful Function: It makes full use of the characteristics of iron wires such as smooth surface, consistent wire diameter and thickness, and large welding area. With special fixtures, it achieves efficient, fast welding with little deformation. In addition to common squares and rectangles, it can also weld triangles, circles and other irregular plane meshes.​
  • Technical Advantages: The welding control system adopts WD - KD 5 intelligent microcomputer controller, which can be matched with various welding controllers. It selects German Semikron, IXYS thyristors or American IR thyristors; the pneumatic control system is equipped with large-displacement solenoid valves and gas components, providing sufficient air supply, and adopts a quick exhaust cylinder with fast response and good servo performance. The welding transformer is made of high-purity silicon steel sheets, with excellent magnetic conductivity and electrical conductivity, low power consumption, and can weld 8mm + 8mm low-carbon steel plates.

Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production

Hwashi Iron Wire Row Welding Machine, Meets Diverse Welding Needs, Ushering in a New Era of Efficient Production
