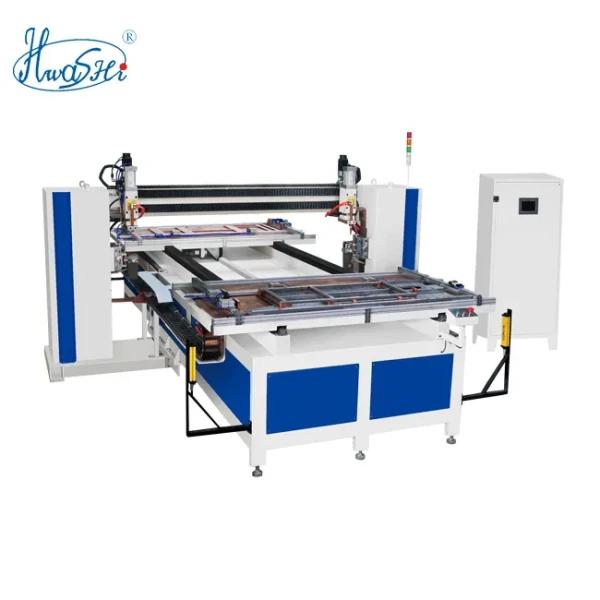

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
Specifications
Brand Name :
HWASHI
Model Number :
WL-SF-MF-100K/120K/160K
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
20 - 30 working days after received your payment
Packaging Details :
Sea worthy wooden package
Product Name :
Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
Dimension(L*W*H) :
2500x1200x1950mm
Weight :
800KG
Usage :
Welding of steel panel
Warranty :
1 Year
Transformer :
MF DC transformer
Description
Hwashi Security Stainless Sheet Door Plate Multi-point Automatic Mobile Type Spot Welding Machine,Sheet metal welder
Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
CNC Double Head Automatic Welding Machine for Galvanized Sheet Door Panel, we suggest to choose the MF DC power due to the long distance welding. Lower electrode adopts full flat locating method, moving along with the Y-axis direction; The left and right side of platform has been equipped with one electrode respectively, and it will move along with the X-axis; Each welding head is equipped with one set of welding power source arranged in a straight line. After loading the work piece, start welding. The platform moves along with the Y-axis direction to the welding position as per preset position program. Then the welding heads move from both sides toward middle and weld this row. After welding this row, moves in Y-axis direction to another row. In the meantime, both sides of the platform work circularly until complete the welding.
CNC Double Head Automatic Welding Machine for Galvanized Sheet Door Panel can complete loading and fixing the work piece at one time; It can automatically move and weld as per preset location; Electrodes can automatically enter grinding system to repair and maintain the electrodes; It can be better to guarantee stable welding points, improve products quality and production efficiency and reduce production cost. It solves the unstable quality and low production efficiency defect caused by manual job; The maximum flat table size is 1500 x1500mm.(customized)

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

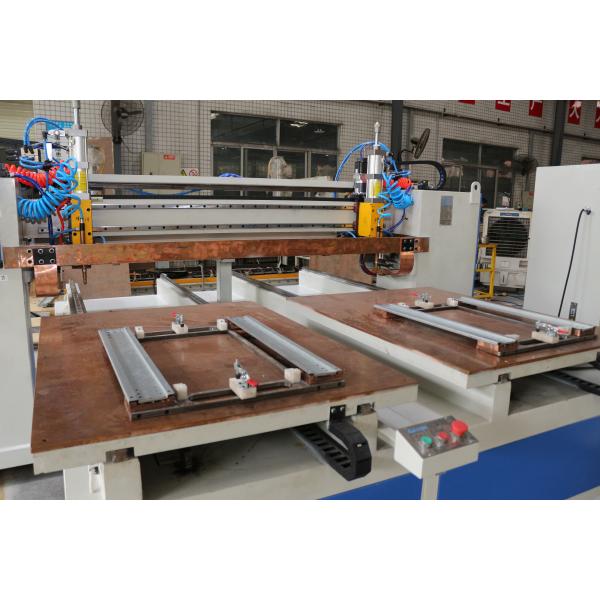

Automatic Moving Table
Be able to choose the two welding tables located from the same side or different side. We may design the machine according to your product drawings.
Specification
S.N
Items
WL-AT-MF 15
1
Input Voltage
380v,3-Phase
2
Input Power
160KVAx2
3
Max.Welding Current
32000 Ax2
4
Welding Specification
32 Kinds
5
Different Welding Current
5000
6
Effective Size Of Welding Platform
1500mmx1500mm
7
X Axis Effective Width
750 mm
8
Y Axis Effective Length
1500 mm
9
X Axis Servo Motor
2 Sets
10
Y Axis Servo Motor
2 Sets
11
Feeder Moving Speed
800 mm/sec
12
Servo Motor Power
450 W
13
Welding Cylinder
2 NO.(80x50mm)
14
Upper Welding Electrode
2 Sets
15
Lower Electrode
full flat table
