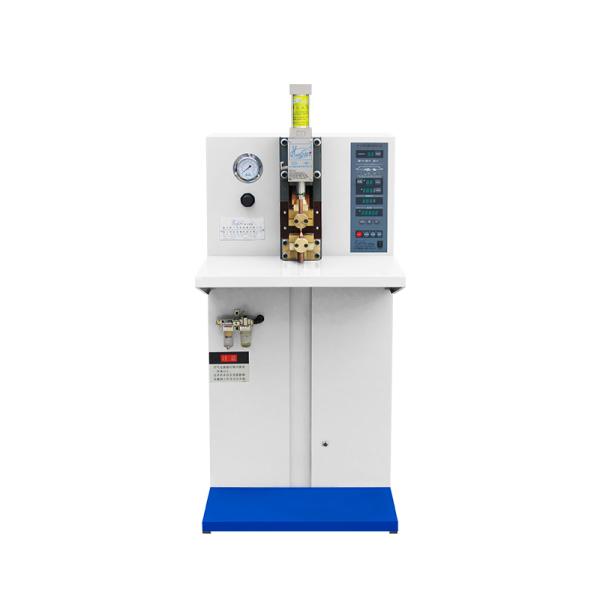

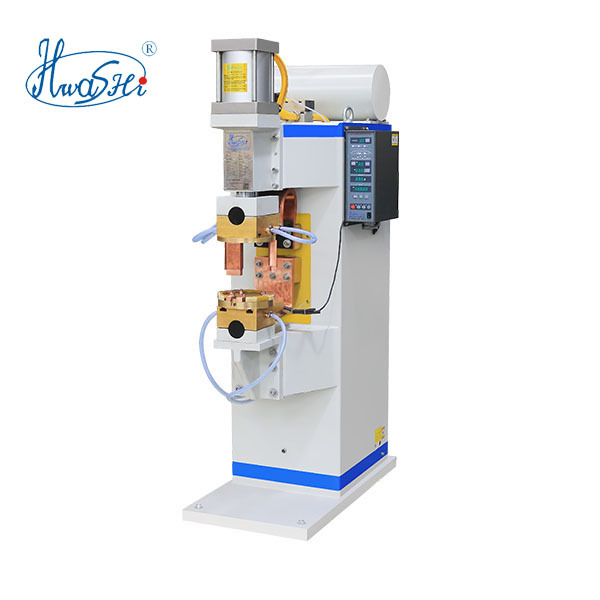

Automatic High Precision Pneumatic Spot Welding Machine

This advanced pneumatic spot welding machine is engineered for automated, high precision industrial sheet metal fabrication. Equipped with a digital CNC controller, it delivers exceptional weld consistency and repeatability across high-volume production lines, making it the ideal solution for manufacturers seeking reliable automated welding performance.

Key Features

• Automated Digital CNC Control: Programmable welding parameters with intuitive touchscreen interface enable fully automated operation, reducing operator dependency and ensuring uniform weld quality across every cycle.
• High Precision Welding: Precision pneumatic pressure regulation and real-time current feedback deliver ±2% accuracy on weld nugget formation, ideal for thin sheet metal assemblies in automotive, electronics, and appliance manufacturing.
• Robust Pneumatic System: High-response pneumatic cylinder with adjustable electrode stroke (20-80 mm) provides rapid, consistent electrode force for spot-on-spot repeatability.
• Efficient Water Cooling: Integrated water circulation cooling system maintains optimal electrode temperature during continuous operation, extending electrode life and maintaining weld integrity.
• Wide Material Compatibility: Capable of welding low carbon steel, stainless steel, galvanized steel, and aluminum alloy sheets ranging from 0.5 mm to 3.0 mm thickness.

Technical Specifications

Applications

Ideal for automated production lines in automotive body assembly, electrical cabinet manufacturing, HVAC duct fabrication, metal furniture production, and precision sheet metal workshops. The programmable parameters allow quick changeover between different workpiece configurations, making it suitable for both dedicated production lines and flexible manufacturing environments.

Contact us today for a customized quotation and detailed technical documentation tailored to your specific production requirements.
