Automatic Coil Steel Bundy Pipe Straightening Machine Aluminum Copper Tube
Automatic Coil Steel Bundy Pipe Straightening Machine Aluminum Copper Tube
Specifications
Brand Name :
HWASHI
Model Number :
WL-B-75K
Certification :
CE/CCC/ISO
Place of Origin :
China
MOQ :
1 set
Price :
$12000
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
7-30 working days after received your payment
Packaging Details :
sea worthy wooden package
Product Name :
Automatic coil steel bundy aluminum copper tube pipe straightening and cutting machine
Application :
Wire Straightening and Cutting Machine
Size :
900mmX1150mmX1750mm
Weight :
450 kg
Condition :
New
Warranty :
24 months
Standard :
CE/CCC/ISO
Service Life :
8-10 years
color :
customized
aftersales service :
engineer overseas
Description

Automatic coil steel bundy aluminum copper tube pipe straightening and cutting machine

Description

1) Motor driving for loading material. Frequency speed control; rotary encoder measuring; Equipped with functions like output counting, tube winding, feeding slip protection.
2) PLC control. Human-machine interface operation to set parameters.
3) Use no scraps cutting method for cutting the tube coil.
4) The fixture, straightening wheels, feeding wheels are made of Cr12 steel which passed heat treatment and fine polishing.
5) Spare parts: cutters- 2sets; 6) Decoiler:Maximum load: 150kg Maximum diameter of coil: 1000mm

APPLICATION

Suitable for tube straightening and cutting different size of wire.

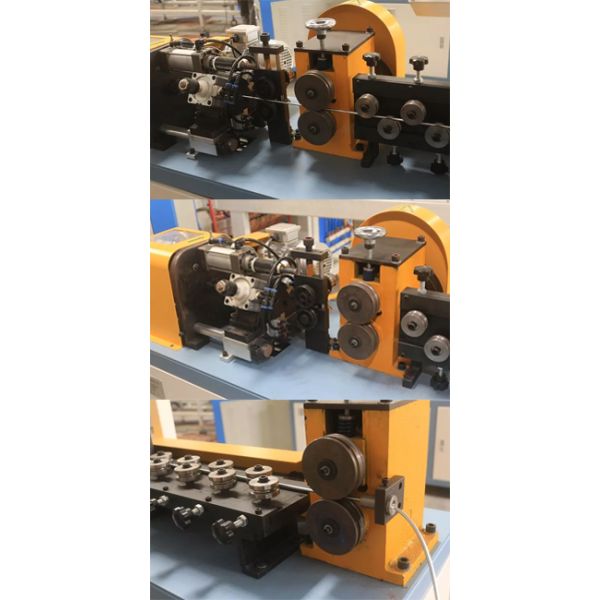

Details of the machine

Automatic Coil Steel Bundy Pipe Straightening Machine Aluminum Copper Tube

SPECIFICATION

No. Item Parameter
1 Wire Diameter Ø2mm-5mm/ Ø5mm-8mm
2 Oil cylinder Ø63mmX25mm
3 Oil pump 3P
4 Coder E40S6-1000 Absolute type
5 Oil press power 2.2KW/3HP
6 Oil case Volume 80L
7 Oil pump flow 40L/min
8 Max wire feeding speed 25m/min adjustable
9 Hydraulic Motor Specification 90X90 flange
10 Uncoiler Max load capacity 1500Kg(customized)
11 Round Plate Diameter of Uncoiler φ1600mm(customized)
12 Main Machine’s Service Voltage Three Phase 380V(±15V)
13 Control Method PLC
14 Preset Quantity Function yes
15 Dimension 1300x900mm
