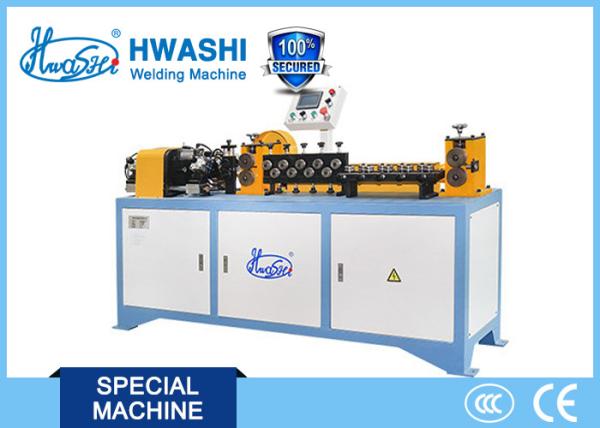

380V Galvanized Wire Cutting And Straightening Machine
380V Galvanized Wire Cutting And Straightening Machine
Specifications
Brand Name :
HWASHI
Model Number :
HS-HC-3-5
Certification :
CE/CCC/ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
7-30 working days after received your payment
Packaging Details :
sea worthy wooden package
Product Name :
Wires cutting and straightening machine
Application :
straightening and cutting the wire
Size :
900x1500x1850mm
Weight :
800KG
Condition :
New
Warranty :
12 months
Standard :
CE/CCC/ISO
Service Life :
8-10 years
Description

wires cutting and straightening machine

DESTRIPTION

1. This machine is suitable for wire, stainless steel wire, galvanized wire, aluminum, water (powder) draw lines and other metal wire straightening and cutting, and then butt welding, automatic unloading.

2. Sending wire wheel, such as the use of high-quality steel cutter and vacuum heat treatment, wear resistance, longer life. Straightening block can be cast iron, alloys, plastics Wang, all shaft parts are all 40CR or 45 # steel, and after straightening process, the gear is used in all forging billet, straight and tooth surface by high frequency hardening, hardness up HRC55-58 degrees.

3, straight shaft with high pressure wheel straight before cutting the wire straightening, wire feeding pressing the pinch roller lever to adjust wire feed, the wire can even feed, direct modulation axis is the key product formed by direct modulation straightening blocks and tone straight shaft fixed to adjust the horizontal and vertical products to conform to requirements. Adjusting the pressing handle, the wire and the wire is more horizontal and vertical production rate increase or decrease. Finally, adjust white blades gun on the length of the product to meet the requirements.

4. Fast, stable performance, simple operation.

5. Touch screen.

APPLICATION

Suitable for straightening and cutting different size of wire.

Configuration

Model TZ5-9
Power supply -50HZ-380V
Capacitance(p) 3
Straight line path/mm 0.8-1.8
Maximum length/mm 2000
Straightening speed/mm 1860
Weight/kg 240
Dimensions/mm 1500*600*1300

380V Galvanized Wire Cutting And Straightening Machine

380V Galvanized Wire Cutting And Straightening Machine

380V Galvanized Wire Cutting And Straightening Machine

380V Galvanized Wire Cutting And Straightening Machine
