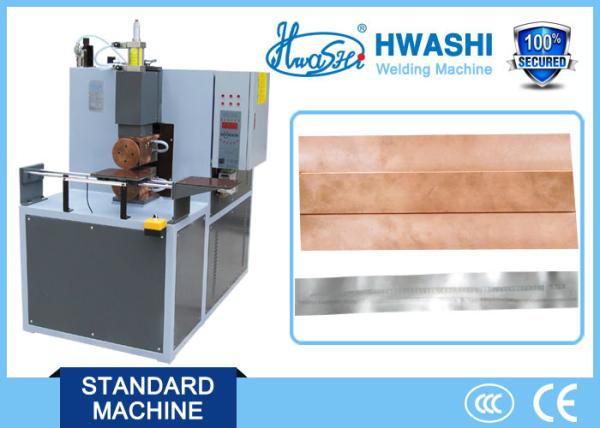

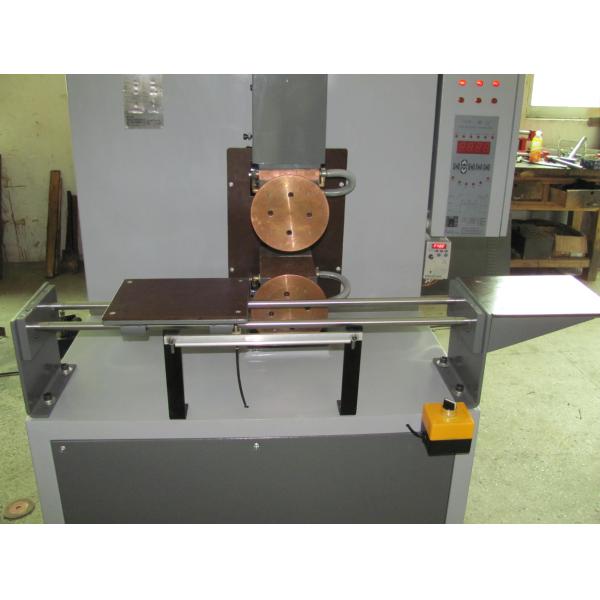

Resistance Seam Welding Machine Nickle / Steel Belt , Seam Welder
Resistance Seam Welding Machine Nickle / Steel Belt , Seam Welder
Resistance Seam Welding Machine Nickle / Steel Belt , Seam Welder
Resistance Seam Welding Machine Nickle / Steel Belt , Seam Welder
Resistance Seam Welding Machine Nickle / Steel Belt , Seam Welder
Resistance Seam Welding Machine Nickle / Steel Belt , Seam Welder
Resistance Seam Welding Machine Nickle / Steel Belt , Seam Welder
Resistance Seam Welding Machine Nickle / Steel Belt , Seam Welder
Specifications
Brand Name :
HWASHI
Model Number :
WL-FSZ-50K
Certification :
CE/CCC\ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
7-30 working days after received your payment
Packaging Details :
sea worthy wooden package
Product Name :
Lower Voltage Seam Welding Machine For Steel Belt , Seam Welder
Application :

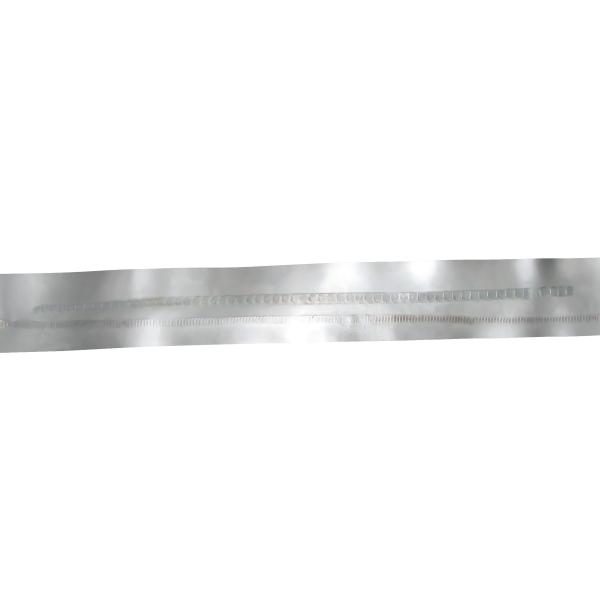

Welding of Steel Belt/Strip
Size :
1305x1500x1850mm
Weight :
180kg
Condition :
New
Service Life :
8-10 years
Description

Lower Voltage Seam Welding Machine For Steel Belt , Seam Welder

SPECIFICATION

No.

Item

Parameters

1

Input Voltage

380V three-phase

2

Power

50KVA

3

Welding Power Supply System

Medium frequency inverter

4

Preaction speed

1/2fequency (1/100sec=power 50Hz)

5

Max Welding Current

15000A

6

Max Storage Welding Models

30 types

7

Max Welding Positions

500

8

Table Size

200mmx300mm

9

Moving Speed

800mm/sec

10

Servo Motor Power

450W

11

Welding Cylinder

2 pcs(60x50mm)

12

Upper Electrode

Two groups

13

Lower Electrode

Large Flat Table

Material configuration

1) Using SEMIKON, IXYS or SCR control. High precision and long life .

2) Pneumatic parts with Taiwan and Japan reliable performance.

3) Motorla integrated circuits used by USA.fast reaction. stable performance.

4) The electric devices are Japan's Mitsubish or Omron components. service life and performance are very good.

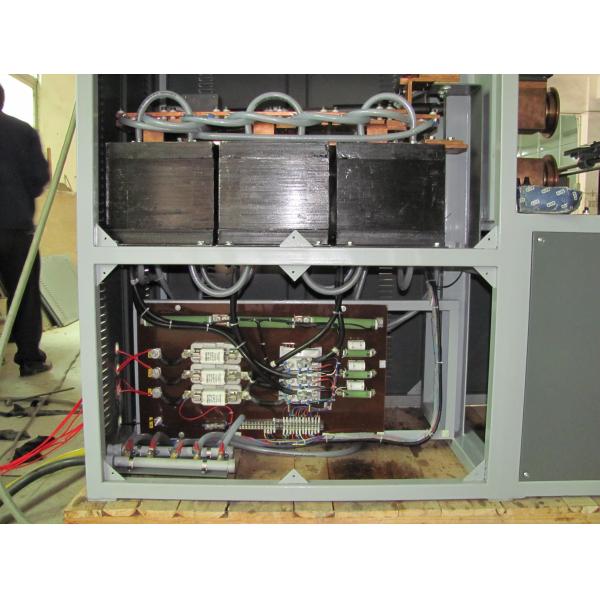

5) steel sheet with Japanese high-purity refined welding transformer.a good magnetic conductivity performance.low power consumption. Strength is more stronger and stable.

APPLICATION

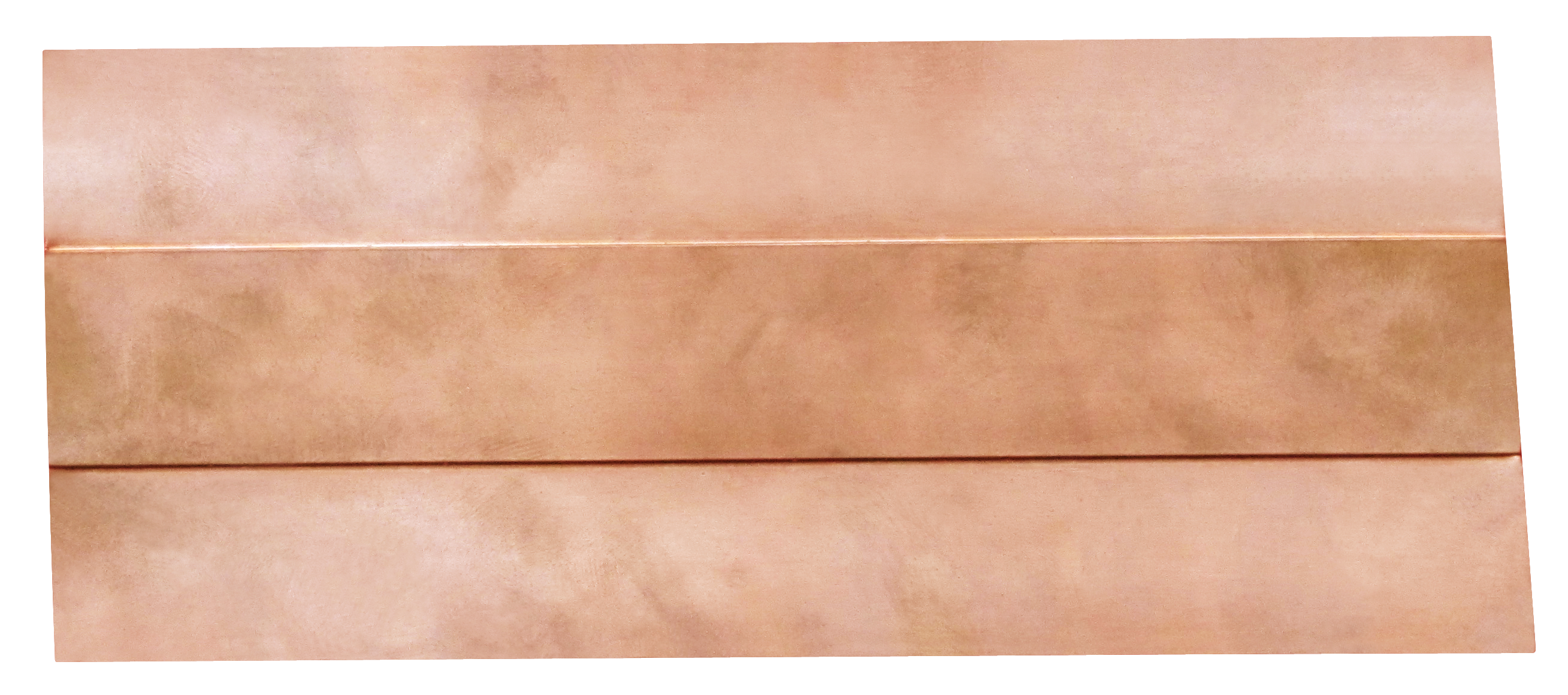

Major supplied in seam welding of automobile shock absorber, thermostat probe, battery nickel belt, oil radiator heaters, power capacitor, etc.

COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 1year warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
