Intelligent Manufacturing Transformer Radiator Production Line
Intelligent Manufacturing Transformer Radiator Production Line
Intelligent Manufacturing Transformer Radiator Production Line
Intelligent Manufacturing Transformer Radiator Production Line
Intelligent Manufacturing Transformer Radiator Production Line
Intelligent Manufacturing Transformer Radiator Production Line
Intelligent Manufacturing Transformer Radiator Production Line
Intelligent Manufacturing Transformer Radiator Production Line
Specifications
Brand Name :
Trintfar
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
10000~50000
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
90~120
Packaging Details :
Wooden brackets/wooden cases
Automatic Production Line :
Comprehensive
Flexible Production :
Intelligent Manufacturing
Automation :
Automation
Warranty :
1 Year Warranty
Specification :
other
Origin :
China
Description
Product Description
Intelligent Manufacturing Transformer Radiator Production Line
Intelligent Manufacturing Transformer Radiator Production LineFeature:
·1. Roll Form Press Controlled by a precision servomotor, the Roll Form Press machine produces panels of variable length according
to the chosen profile and end detail. Forming and feeding rollers work in combination with a press tool to form panels in a fully
automated process. ·

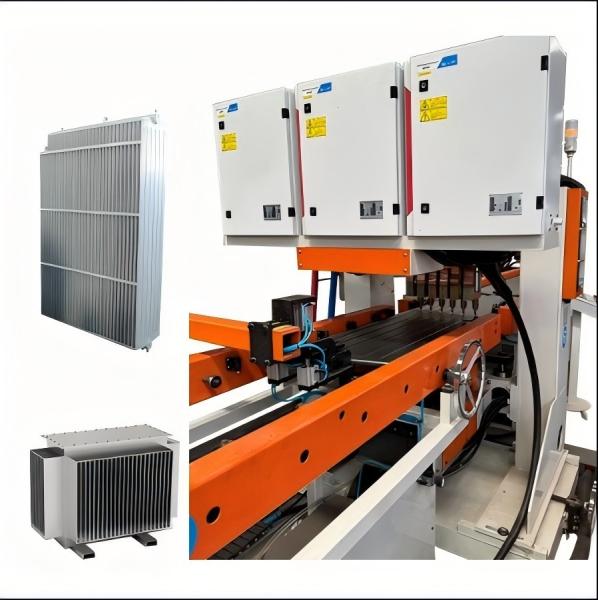

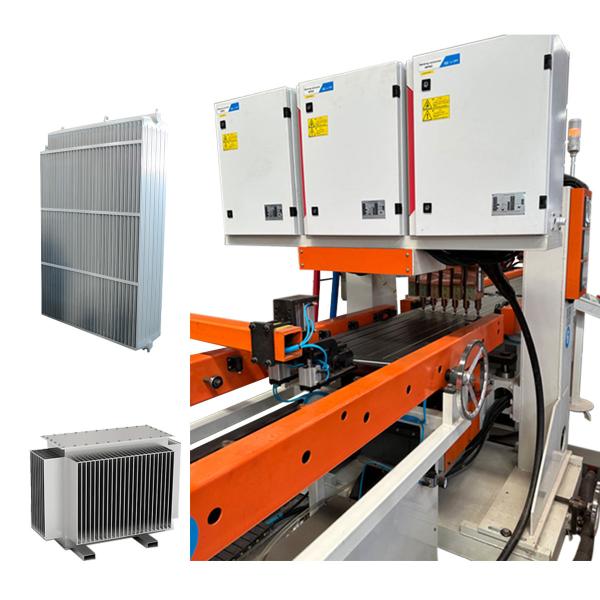

2. Multi-Spot Welder The Multi-Spot Welder makes up to rows of spot welds along the ribs through the length
of the panel. Software-controlled servo indexing of the panel assembly assures symmetrical positioning of spots for optimal
pressure distribution. ·

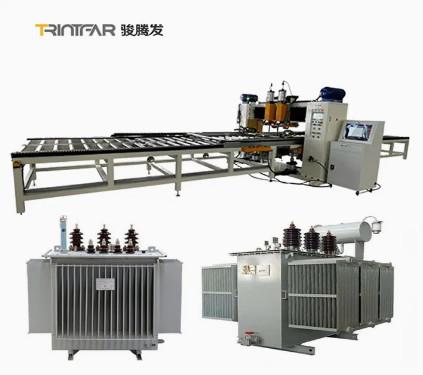

3. Seam Welder The Seam Welder joins the edges of the panels through resistance welding. Each
copper-welding wheel is internally cooled, without the need for an external water system. As an automated solution, the seam is
welded by dual welders for the longitudinal sides of the panel and by a third welder for the panel ends. As a manual solution, the
operator controls the position of the panel relative to the welding wheels and rotates the panel in a single motion.

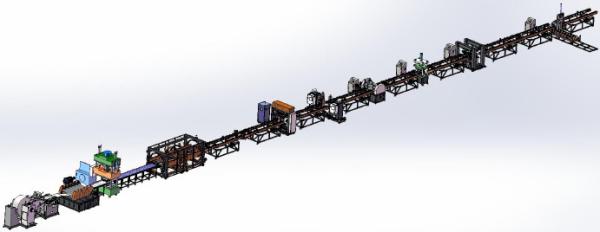

Work flow
Decoiling - roll forming -hydraulic press -turn over -multiple spot welding -side seam welding -head welding -
side shearing -head cutting -end product -automatic panel stacking machine
Intelligent Manufacturing Transformer Radiator Production Line
Specification
BVM-170KVA
parameters
Input voltage
380±10% (three-phase) 50HZ
Input power
2x250KVA
Secondary Voltage
11.3V
Maximum short circuit current
50KA
Insulation resistance
Input power to the fuselage insulation resistance ≥ 2.5MΩ
Working environment
temperature≤40ºC, humidity≤90%
Cylinder model
Φ160*80
Maximum working pressure
12000N
Air source pressure
0.6MPa
Water source pressure
0.15MPa~0.30MPa
Water flow
30L/min
Welding wheel diameter
280mm
