An 8 - 35 millimeter automatic - feeding CNC industrial stud welding machine or an automatic - feeding spot welding machine
An 8 - 35 millimeter automatic - feeding CNC industrial stud welding machine or an automatic - feeding spot welding machine
An 8 - 35 millimeter automatic - feeding CNC industrial stud welding machine or an automatic - feeding spot welding machine
An 8 - 35 millimeter automatic - feeding CNC industrial stud welding machine or an automatic - feeding spot welding machine
An 8 - 35 millimeter automatic - feeding CNC industrial stud welding machine or an automatic - feeding spot welding machine
An 8 - 35 millimeter automatic - feeding CNC industrial stud welding machine or an automatic - feeding spot welding machine
An 8 - 35 millimeter automatic - feeding CNC industrial stud welding machine or an automatic - feeding spot welding machine
An 8 - 35 millimeter automatic - feeding CNC industrial stud welding machine or an automatic - feeding spot welding machine
Specifications
MOQ :
1
Brand Name :
TRINTFAR
Voltage :
220/380V
Usage :
welding small stud M3-M10
Packaging Details :
wooden box
Model Number :
LZ-80
Supply Ability :
500 Per year
Advantage :
High Welding Speed
Product name :
Simple Operation Stud Automatic Feeding CNC Stud Welding Machine
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Dimensions :
980mmx650mmx650mm
Delivery Time :
Within 90 days of the final payment
Function :
Automatic Spot Welding Machine
Certification :
CE
Price :
USD 5000-8000 set
Machine Type: :
Welding Manipulator
Description

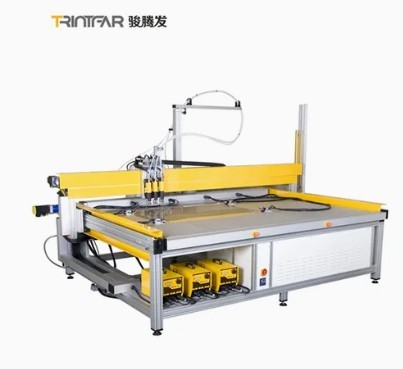

Simple Operation Stud Automatic Feeding CNC Stud Welding Machine

CNC stud welding system with capacitor discharge stud welder
Components used
autofeed weld head , mounted on precision slide
bowl feeder-includes vibratory bowl feeder, escapement and controls
cd power source fitted with dual charging circuits and automatic control module
cd power source fitted with dual charging circuits and automatic control module
proximity sensor on the stud escapement causes feeder to stop vibrating when escapement is full
this prevents excessive wear on the feeder and possible damage to the stud tips caused by constant vibration
complete CNC system with 300mm 500 mm table, includes controller, pneumatic grounds and enclosure
programming can be done directly on the control panel or simply using an excel spread sheet and downloading data via usb cable to the controller
weld head and feeder can be set up for stud diameters (M3) thru M8 and for lengths up to 30mm. longer lengths may be possible, please call with application details

Specification
Welding screw range
Diameter (D) M2~M80, Length (L) 8~35MM
Welding materials
Working material ,low carbon, stainless,copper,aluminium alloy and brass
X Axis movement range
Can be customized according to customer needs
Y Axis movement range
Can be customized according to customer needs
Welding gun lift range
80mm
positioning accuracy
+0.05mm
running speed
30m/min
Welding speed
15~20 studs/min
