Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Heavy Duty Rebonded Foam Profile Cutter Machine 9.7kw High Performance
Specifications
Brand Name :
Hongxingwang
Model Number :
HXW-YX-1650A
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
100sets per year
Delivery Time :
30 days
Packaging Details :
standard export packing
Voltage :
220V/380V
Power :
10kW-100kW
Application :
Foam industry
Power Source :
Electric
Features :
High Efficiency, Stable Performance, Easy Operation
Frequency :
50Hz/60Hz
Description

Heavy Duty Rebonded Foam Profile Cutting Machine Core Working Principle:

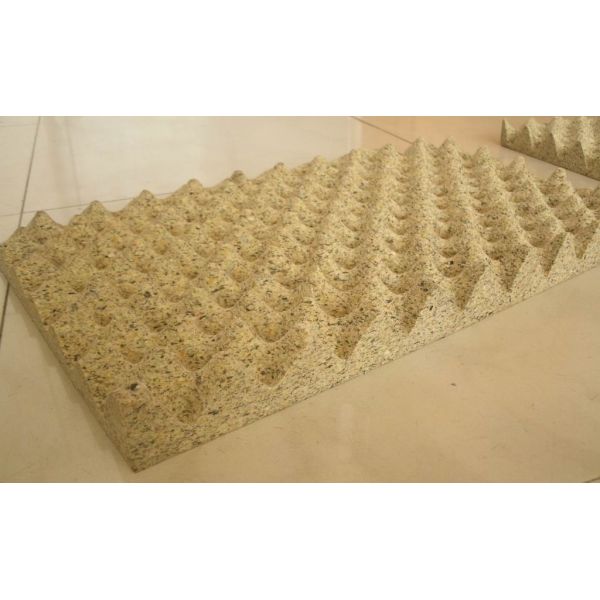

A flat, foamed and sliced ​​sponge sheet is fed between a steel roller engraved with a specific pattern and an elastic support roller. Under the combined effects of pressure and tension, the sponge is briefly compressed, shaping its surface into a three-dimensional pattern that perfectly matches the pattern of the roller, ultimately establishing its shape.

Heavy Duty Rebonded Foam Profile Cutting Machine Workflow Overview

1. Preparation: Place the large roll or sheet of sponge material on the unwind stand or workbench. Pass the leader through the guide rollers and embossing area before securing it to the rewind stand.

2. Parameter Setting: Set the desired pressure, speed, and speed on the touchscreen.

3. Start: Start the machine, and the embossing rollers begin heating and rotating.

4. Embossing: The sponge is automatically fed between the embossing and pressure rollers. The instantaneous pressure creates a distinct embossing pattern on the surface.

5. Winding: The embossed sponge, once shaped, is automatically wound into a roll, completing the process.

Heavy Duty Rebonded Foam Profile Cutting Machine technical data:

Maximum cutting width

1650mm

Foam thickness

50-100mm

Cutting speed

0-20m/min

Rotating speed

0-25r/min

Motor power

9.7kw

Machine weight

1600kg

Machine size

4600mm*1000mm*1500mm
