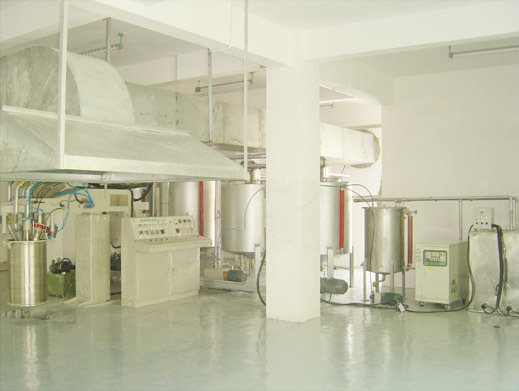

Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Diameter 1.6m Batch Foam Machine For Making Round Foam Block High Speed
Specifications
Brand Name :
HONGXINGWANG
Model Number :
HXW-BF-3A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T,L/C
Supply Ability :
100SETS per year
Delivery Time :
50 days
Packaging Details :
export standard packing
Voltage :
220V/380V
Power :
10kW-100kW
Application :
Foam industry
Power Source :
Electric
Features :
High Efficiency, Stable Performance, Easy Operation
Frequency :
50Hz/60Hz
Description

Batch Foam Machine for Making Round Foam Block with diameter 1.6m · Mixing head:
· High-speed agitation: The most commonly used type. A high-speed rotating agitator shaft (speeds of up to 5,000-6,000 RPM or more) vigorously shears and mixes the raw materials. After mixing, the mixing head has a self-cleaning function to prevent clogging.
· Pouring nozzle and oscillating mechanism: The mixed material flows out through the pouring nozzle. To ensure more even distribution of the raw materials within the foaming chamber, the pouring nozzle is usually mounted on a mechanism that automatically swings left and right.

Batch Foam Machine for Making Round Foam Block with diameter 1.6m Basic Data:

Application

Soft foam, HR foam, Memory foam

Foam density

10kg/m3-60kg/m3

PPG, POP and TDI Tank

2tons

Mixing head motor power

15kw

Total power

48kw

Cooling capacity

5HP

Mixing tank capacity

230L

Square Mould size

2050*1550*1250mm

Round mould size

Diameter:1500mm and height: 2100mm

Production capacity

5-6 foam blocks/h
