Product Description:

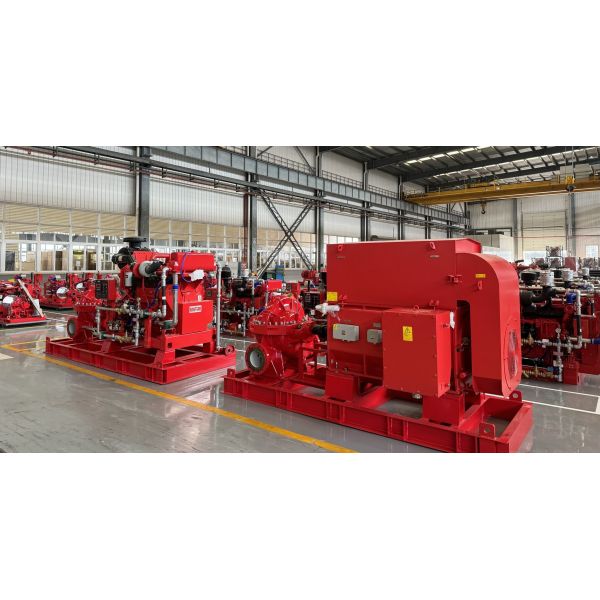

The SCF200-150-640 Diesel Engine Driven Split Case Fire Pump is a high-performance, robust fire protection solution designed for commercial, industrial, and municipal applications. Delivering 3000 GPM at UL 162–194 PSI / FM 166–200 PSI, it ensures reliable water flow and pressure for critical fire suppression systems.

Powered by a NM6 series diesel engine (NM6-127 to NM6-150) generating 287–372 kw at 1480 RPM, this pump maintains optimal performance even under the most demanding conditions. Its split case design provides high efficiency, easy maintenance, and long service life, making it a dependable choice for large-scale fire protection installations.

Fully compliant with UL, FM, and NFPA20 standards, the SCF200-150-640 guarantees regulatory compliance and reliable operation in emergency situations. The diesel engine ensures independent operation during power outages, making it suitable for locations with unreliable electricity or remote sites.

With durable construction, precision-engineered components, and versatile performance, this pump offers a cost-effective and dependable fire safety solution.

Features:

• Model: SCF200-150-640
• Flow Rate: 3000 GPM
• UL/FM Pressure Range: UL 162–194 PSI / FM 166–200 PSI
• Engine: NM6-127 / NM6-150 Diesel Engine
• Engine Power: 287–372 kw
• Pump Type: Split Case (Horizontally Split)
• Pump RPM: 1480
• Standard: UL, FM, NFPA20
• Applications: Commercial, Industrial, Municipal Fire Protection
• Construction: Ductile Cast Iron, Bronze Impeller, Stainless Steel Shaft
• Easy maintenance and robust design

Technical Parameters:

Applications:

The SCF200-150-640 Diesel Engine Driven Split Case Fire Pump is ideal for:

• Commercial Buildings: High-rise buildings, office complexes, hotels, shopping malls.
• Industrial Facilities: Factories, warehouses, chemical plants, and manufacturing sites.
• Municipal & Infrastructure Projects: Fire hydrant networks, water supply systems, airports, seaports.
• Remote or Emergency Locations: Diesel engine ensures operation independent of electricity.

Its robust construction and NM6 diesel engine ensure high reliability and efficiency across all fire protection applications.

Customization Options:

• Flow rate and head customization
• Diesel engine selection: NM6-127 ~ NM6-150
• Optional controller packages
• Packaging: plywood case or containerized unit
• Minimum Order Quantity: 1 unit
• Lead Time: 60–120 days
• Payment Terms: T/T or L/C

FAQ:

Q1: What brand manufactures this pump?
A1: The SCF200-150-640 is produced by NMFIRE.

Q2: What certifications does it have?
A2: UL, FM, and NFPA20 compliant.

Q3: What are the flow and pressure specifications?
A3: Flow: 3000 GPM; UL: 162–194 PSI; FM: 166–200 PSI.

Q4: Which diesel engines are compatible?
A4: NM6-127 to NM6-150, matching 287–372 kw at 1480 RPM.

Q5: What is the minimum order quantity?
A5: 1 unit.

Q6: How is it packaged?
A6: Plywood case or customized containerized packaging.

Q7: Delivery time?
A7: Typically 60–120 days.

Q8: Payment terms?
A8: T/T or L/C.
