Light Weight Common Mode Power Line Choke with ISO 9001 Certification and 10KHz Test Frequency
Light Weight Common Mode Power Line Choke with ISO 9001 Certification and 10KHz Test Frequency
Specifications
Current :
Up to 18A
Model Number :
TRF
Nature of Operation :
Choke Coil
Brand Name :
Shinhom
Specification :
RoHS, ISO9001
Test frequency :
10KHz
Delivery Time :
4~8 Weeks
Supply Ability :
100000/MONTH
Winding :
Common mode
Payment Terms :
T/T
Place of Origin :
China
MOQ :
5000PCS
Price :
Negotiation
Transport Package :
Carton/Tube
Packaging Details :
Carton
Certification :
RoHS
Description
Light Weight Common Mode Power Line Choke with ISO 9001 Certification
Low Loss Toroidal Common Mode Choke / Toroidal Core Power Inductor / Magnetic Inductors
Key Features
  • Separated windings for minimum interwinding capacitance
  • Single layer windings for highest common mode impedance over the widest frequency range
  • Suitable for 50Hz to 500 KHz
  • Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
  • All materials used are UL94-VO recognized
  • Operating temperature: -55ºC to +105ºC
  • Available in either vertical or horizontal mount
  • Available in vertical header mount for ease in PCB assembly
  • Easy FR-4 board mounting with good vibration resistance
Applications
  • Low Frequency AC Reactor
  • Solar Power System
  • Power Conditioning System
  • Wind Power System
  • Automatic Drive Machine
  • Induction Heater
  • Welding Machine
  • Paper Industries
  • RFI Suppression Choke
  • DC/DC converters
  • IP and OP devices

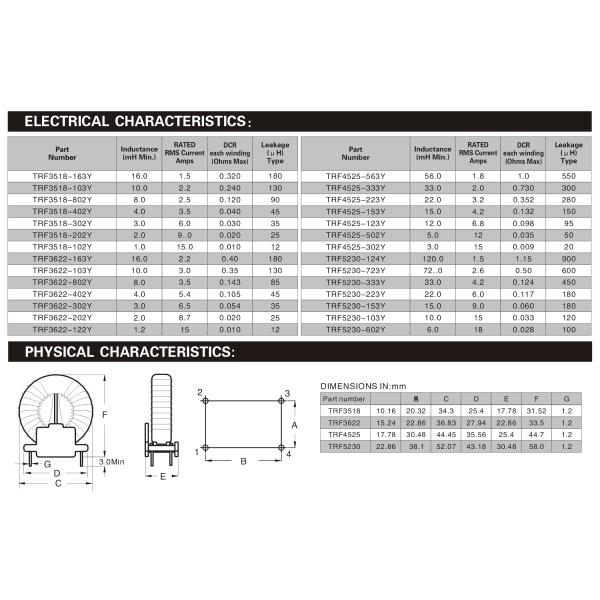

Technical Specifications
  • Inductance tolerance: +50% -30%
  • Max operating voltage: 250V at 40℃
  • IDC Max: rating AC/DC current A @40℃
  • Hi-Pot 2500Vac winding to winding 3S
  • Inductance Testing: 10KHz 0.1V HP4284A
  • RDC: QuadTech 1880 Milliohmmeter
  • Surge current Max 10ms: 20X IDC
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃
Light Weight Common Mode Power Line Choke with ISO 9001 Certification and 10KHz Test Frequency
Product specifications can be customized to meet specific requirements.
